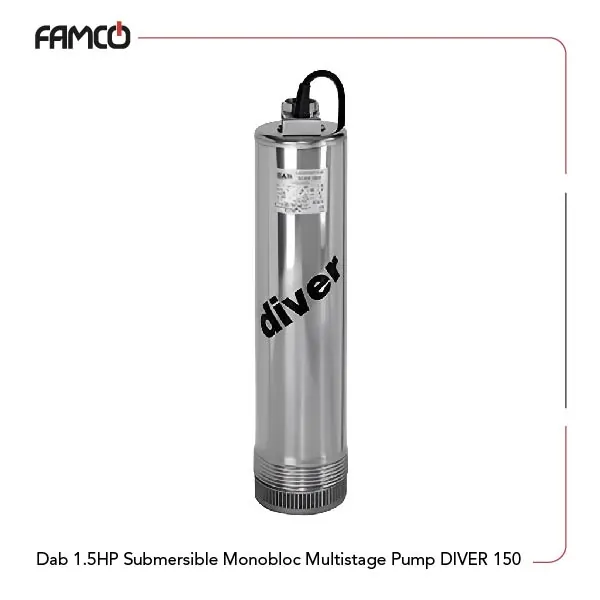

Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Specifications
Dab 1.5HP submersible monobloc multistage pump DIVER 150 features a power output of 1 kW, equivalent to 1.5 HP, making it suitable for various applications. It operates efficiently within a height range of 13.1 to 127 meters. The liquid temperature range this sturdy product handles is anywhere from 0 °C to +35 °C for utmost versatility in different environments. The product’s maximum immersion depth of 20 meters is ideal for deep installations. The motor is protected with an IP 68 rating to reach ultimate durability and resistance to water. It is rated F for thermal protection to enhance its operational quality. This Dab submersible pump could also be positioned vertically. The standard voltage options in this product include single-phase 230 V / 50 Hz and three-phase 400 V / 50 Hz. The lip seal is made from NBR 70, while both the diffuser and impeller are crafted from technopolymer for elevated strength. The pump’s motor has 2 poles, and the shaft with rotor is constructed from AISI 304 stainless steel to maximize longevity and resistance to corrosion.
| Specification | Value | |
| Power (kW) | 1 | |
| Power (HP) | 1.5 | |
| H (m) | 13.1-127 | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| No. of poles | 2 | |
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Materials
- Lip seal: NBR 70
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 stainless steel X5CrNi1810 UNI 10088-3
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 13.1 |
| 127 | 550 | |
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Technical Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 80 | 72 | 67 | 60 | 52 | 45 | 35 | 26 | 16 |

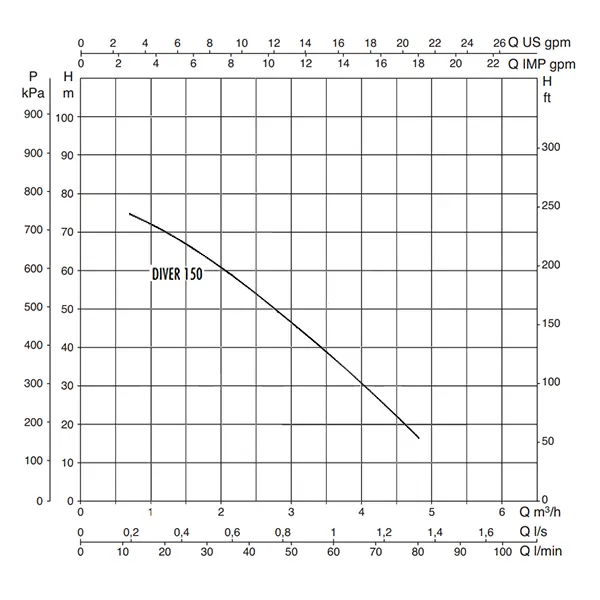

Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Performance Curve
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 Applications
- Water supply in residential buildings
- Irrigation systems for agriculture
- Drainage in construction sites
- Water management in industrial settings
Dab 1.5HP Close-coupled Borehole Pump DIVER 150 Benefits
- High efficiency with a power output of 1 kW
- Durable construction with stainless steel and technopolymer components
- Versatile installation options in various environments
- Reliable performance with IP 68 motor protection
Dab 1.5HP Close-coupled Borehole Pump DIVER 150 Price List
| No. | Name | Price |
| 1 | Dab 1.5HP Close-coupled Borehole Pump DIVER 150 Price | Contact us |
