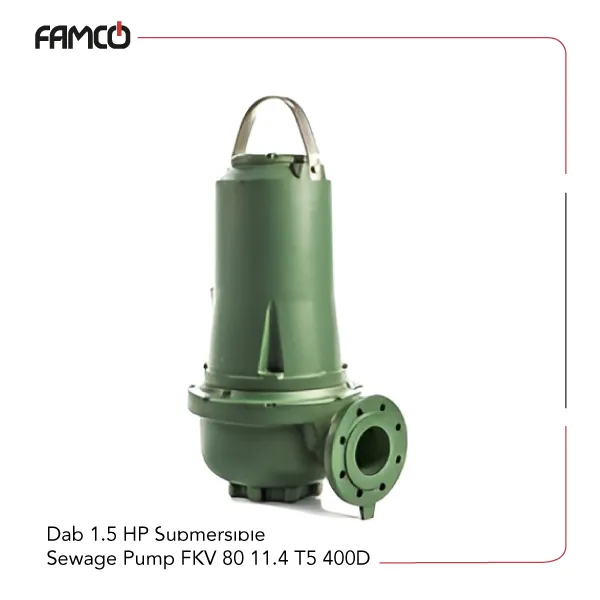

Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Specifications
This pump features a vortex impeller made of durable cast iron, designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12, making a suitable wastewater solution out of this Dab sewage pump, FKV series. The pump can handle fluid temperatures from 0°C up to 40°C, ensuring versatility in different environments. It can be installed at depths up to 20 meters, providing flexibility for underground or submerged setups. The maximum delivery head is 7 meters, with a flow rate reaching 960 liters per minute, ideal for high-volume transfer tasks. It uses a three-phase power supply of 400 volts and consumes 1.1 kilowatts, equivalent to 1.5 horsepower. The pump weighs 103 kilograms, indicating this Dab submersible pump’s sturdy construction. Its mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring durability and leak prevention during operation.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 7 m |
| Max flow rate | 960 l/min |
| Three-phase voltage | 400 V |
| Power | 1.1 kW |
| Power (HP) | 1.5 HP |
| Weight | 103 kg |

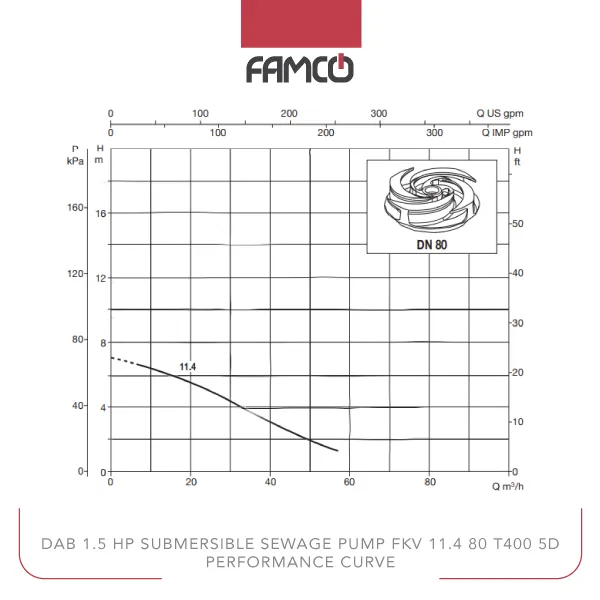

Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Performance Curve
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 |
| Head (m) | 7 | 6.7 | 6.1 | 5.3 | 4.5 | 3.6 | 2.7 | 1.9 | 1.3 |
Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Applications
- Wastewater and sewage transfer
- Industrial fluid handling
- Flood control and drainage
- Sewage treatment plants
Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Benefits
- Handles solids up to 100 mm easily
- Durable cast iron construction
- High flow rate for quick transfer
- Reliable mechanical seals for long-term use
Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Sewage Pump FKV 80 11.4 T5 400D Price | Contact us |
