Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D

1.1 kW (1.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: DAB Pumps, Dab Sewage Pumps, Dab Submersible Pump

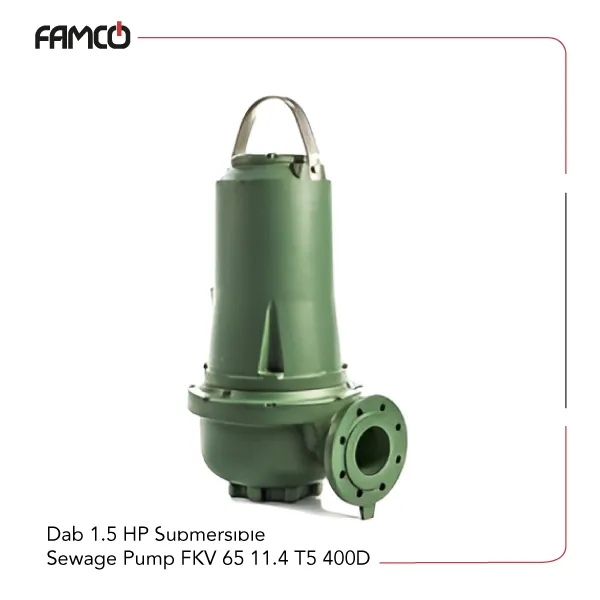

Overview of Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D

This FKV series three-phase 400V-compatible sewage Dab pump offers a 1.5 HP pumping force. Its vortex impeller efficiently moves solids up to 100 mm, making it ideal for wastewater, sewage, and industrial liquids. The pump’s construction ensures durability and reliable performance in challenging environments. With a maximum head of 9.1 meters and flow rate of 840 liters per minute, it can handle large volumes quickly. Its ability to operate at depths up to 20 meters and within a broad pH range makes it suitable for various industrial and municipal uses. The robust cast iron impeller and high-quality seals contribute to its long service life. Overall, this pump combines power, durability, and efficiency for demanding liquid transfer tasks.

Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Specifications

This pump features a vortex impeller made of durable cast iron, designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12, making it suitable for various liquids. The Dab submersible pump presented to you here, from the FKV series, can handle fluid temperatures from 0°C up to 40°C and can be installed at depths up to 20 meters. Its mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring reliable sealing and longevity. The maximum delivery head is 9.1 meters, with a flow rate reaching 840 liters per minute. Running with perfect performance on a 400V three-phase supply, this Dab sewage pump consumes 1.1 kW (or 1.5 HP). Weighing 94 kg, this pump is a trusted wastewater management tool used for some of the most demanding applications in domestic or light industrial settings.

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	9.1 m
Max flow rate	840 l/min
Three-phase voltage	400 V
Power	1.1 kW
Power (HP)	1.5 HP
Weight	94 kg

Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Performance Data

m3 /h	0	7.2	14.4	21.6	28.8	36	43.2	50.4
l/min	0	120	240	360	480	600	720	840
Head (m)	9.1	8.7	7.9	6.7	5.3	4	2.7	1.8

Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Applications

Wastewater and sewage pumping
Industrial liquid transfer
Flood control and drainage
Municipal water management

Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Benefits

Handles solids up to 100 mm efficiently
Durable cast iron construction for long-lasting use
High flow rate of 840 l/min for quick transfer
Reliable seals ensure minimal maintenance

Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Price List

No.	Name	Price
1	Dab 1.5 HP Submersible Sewage Pump FKV 65 11.4 T5 400D Price	Contact us

Brand	Dab
Applications	Industrial, Sewage management, Wastewater management
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (L/min)	840
Maximum Delivery Head (m)	9.1
Weight (kg)	94
Voltage (V)	400
