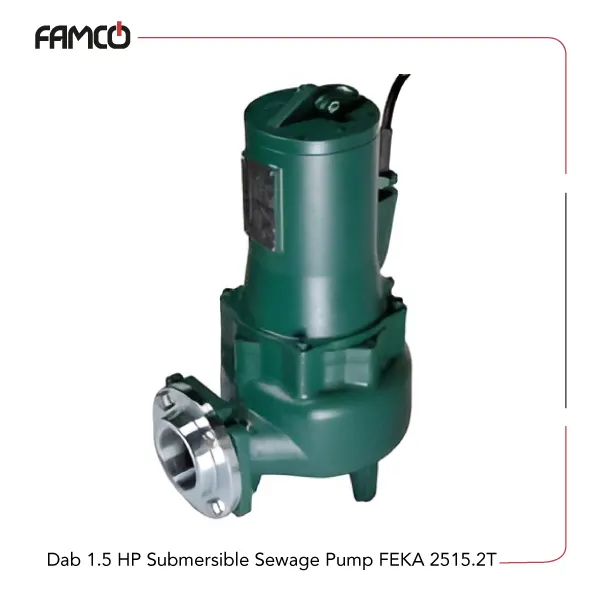

Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Specifications
This product features a high level of protection with an IP 68 rating, making it suitable for harsh environments. This Dab submersible pump operates with an insulation class F, ensuring safety and durability. The pump allows solids up to 62 mm to pass through, making it ideal for handling various fluids with solids content. It can operate within a temperature range from 0°C to 40°C, suitable for different applications. Powered by a three-phase 400 V supply at 50 Hz, this Dab sewage pump has the potential to deliver a maximum head of 9.3 meters and a flow rate of up to 600 liters per minute. The device consumes 1.1 kW (or 1.5 HP) and weighs 41 kg, making it robust yet manageable for installation and maintenance.
| Specification | Value |
| Degree of protection | IP 68 |
| Insulation class | F |
| Free solids passage (mm) | 62 |
| Fluid Temperature Range | 0°C to +40°C |
| Three-phase voltage | 400 V |
| Frequency (Hz) | 50 |
| Max. delivery head (m) | 9.3 |
| Max. flow rate (l/min) | 600 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Weight (kg) | 41 |
Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Performance Curve
| m3 /h | 0 | 3 | 6 | 12 | 18 | 24 | 36 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 600 |
| Head (m) | 9.3 | 8.8 | 8.4 | 7.6 | 6.5 | 5.3 | 3 |
Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Applications
- Industrial fluid transfer
- Agricultural irrigation systems
- Construction site dewatering
- Water treatment plants
Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Benefits
- High protection level with IP 68 rating for tough environments
- Handles solids up to 62 mm, reducing clogging issues
- Efficient flow rate of 600 l/min for quick operation
- Robust construction with 41 kg weight for durability
Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Sewage Pump FEKA 2515.2T Price | Contact us |
