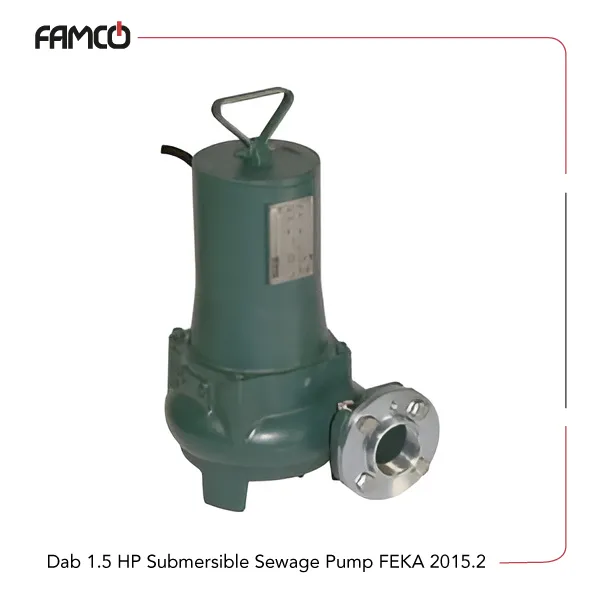

Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Specifications
This wastewater and sewage pump features a vortex impeller made of durable cast iron, designed to handle solids up to 42mm. It operates efficiently within a pH range of 6 to 11 and can manage fluid temperatures from 0°C to 40°C. The pump can be installed up to 20 meters deep, provided the cable length is appropriate. It is suitable for fixed installation using a coupling unit or can be used portably in a vertical position. The device supports both single-phase (230V) and three-phase (400V) power supplies, operating at 50Hz. This Dab submersible pump is famous for delivering a maximum head of 12.5 meters and a flow rate of 400 liters per minute, making this Dab sewage pump one of the best choices when it comes to wastewater applications. Weighing 32 kg, this pump combines robust construction with reliable performance for industrial, commercial, and private settings.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 42mm |
| Fluid | wastewater and sewage from buildings and sites in private, commercial, industrial areas |
| Fluid PH | 6-11 |
| Fluid Temperature Range | 0°C to +40°C |
| Max installation Depth | 20 meters (with proper cable length) |
| Type of installation | fixed by Coupling Unit, portable in vertical position |
| Impeller Material | cast iron |
| Single-phase Voltage | 230 V |
| Three-phase Voltage | 400 V |
| Frequency | 50 Hz |
| Max. Delivery Head | 12.5 meters |
| Max. Flow Rate | 400 liters per minute |
| Power | 1.1 kW |
| Power (HP) | 1.5 |
| Weight | 32 kg |

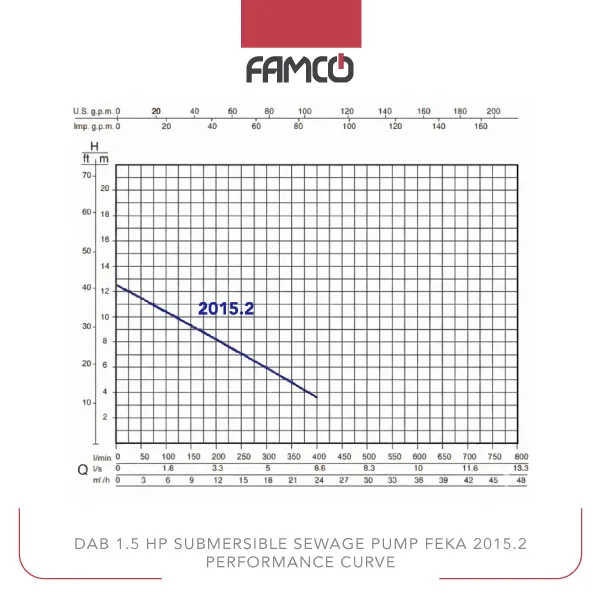

Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Performance Data
| m3 /h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| Head (m) | 12.5 | 11.5 | 10.5 | 9.2 | 8 | 7 | 5.8 | 3.6 |
Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Applications
- Building sewage systems
- Industrial wastewater management
- Commercial drainage projects
- Private property sewage handling
Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Benefits
- Handles solids up to 42mm for versatile use
- Supports both single and three-phase power options
- Durable cast iron construction ensures longevity
- Flexible installation with portable and fixed options
Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Sewage Pump FEKA 2015.2 Price | Contact us |
