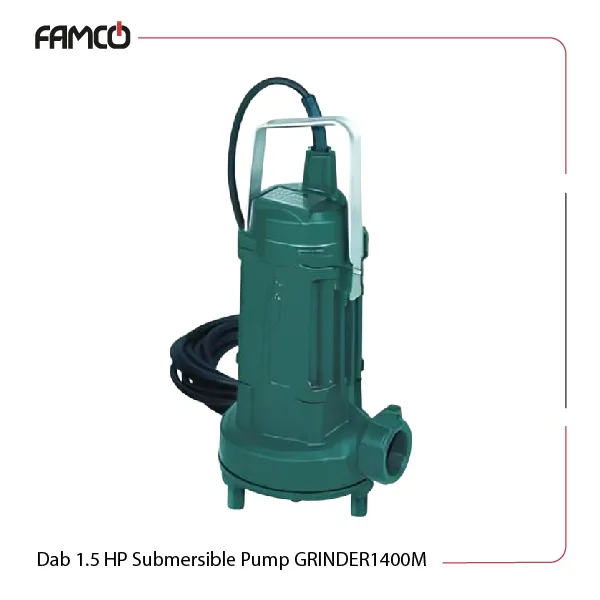

Dab 1.5 HP Submersible Pump GRINDER1400M Specifications
This 1.1 kW (1.5 HP) submersible grinder pump from Dab works efficiently under single-phase (220–240 V) connections at 50 Hz. Made to last in submerged applicationsm, this Dab pump has a 7-meter max. immersion depth. This GRINDER1400 has a maximum immersion of 7 meters for this purpose. It’s protected with an IP68 rating and has an insulation class F motor. These Dab submersible pumps have a two-pole motor that runs a grinder made of tempered stainless steel (AISI 440) that helps manage waste material in the pumped liquid. Its silicone carbide shaft seal enhances reliability during extended use.
| Specefication | Value |
| Power (HP) | 1.5 HP |
| Power (kW) | 1.1 kW |
| Maximum flow rate | 150 l/min (9 m³/h) |
| Maximum delivery head | 14.1 – 24.5 meters |
| Maximum immersion depth | 7 meters |
| Max liquid temperature | 0 – 55°C |
| Max ambient temp (motor above water) | Up to 40°C |
| Type of liquid | Grey, non-aggressive wastewater |
| Voltage (single-phase) | 220 – 240 V |
| Frequency | 50 Hz |
| Protection degree | IP68 |
| Insulation class | F |
| Number of poles | 2 |
| Weight (single-phase model) | 43.2 kg |
Dab 1.5 HP Submersible Pump GRINDER1400M Materials
- mechanical shaft seal: Silicone carbide
- Grinder:sub AISI 440 tempered stainless steel

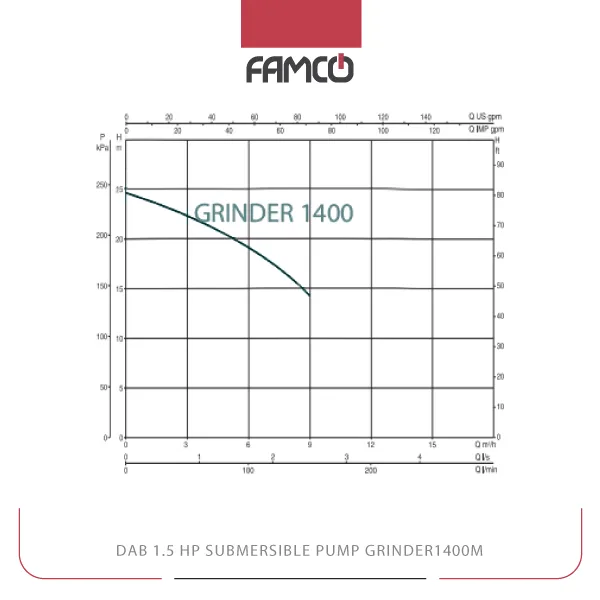

Dab 1.5 HP Submersible Pump GRINDER1400M Performance Curve
Dab 1.5 HP Submersible Pump GRINDER1400M Applications
- Domestic grey water drainage systems
- Commercial wastewater pumping stations
- Hotels or restaurants with elevated wastewater temperatures
- Light industrial washwater handling
Dab 1.5 HP Submersible Pump GRINDER1400M Benefits
- Handles up to 55°C liquid temperatures
- Tempered steel grinder improves cutting performance
- IP68 protection ensures safe submersion
- Runs on single-phase power supplies
Dab 1.5 HP Submersible Pump GRINDER1400M Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Pump GRINDER1400M Price | Contact us |
