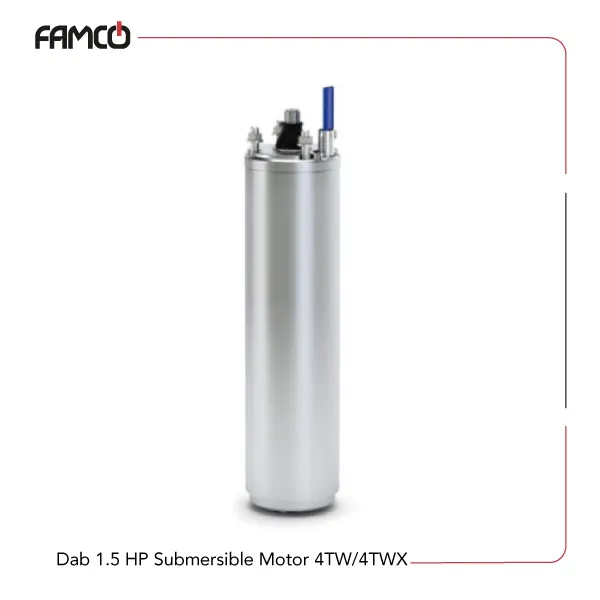

Dab 1.5 HP Submersible Motor 4TW/4TWX Specifications
This product features an insulation class of F, ensuring high durability and safety under various conditions. It has a protection class of IP68, making it suitable for underwater and harsh environments. The Dab submersible motor cooling system operates with a minimum flow speed of 0.3 meters per second at 35 degrees Celsius, which helps maintain optimal performance. The power supply can tolerate fluctuations of +6% to -10%, providing stability during operation. It can start up to 20 times per hour without issues, and it is designed to operate at depths up to 300 meters underwater. The motor has two poles and runs at a speed of 2820 revolutions per minute, powered by a single-phase system at 230 volts. The weight varies slightly depending on the model, with 11.5 kg for the 4TW and 12 kg for the 4WX. Overall, this product is built for reliable, continuous use in demanding environments, combining efficiency with durability for various industrial applications.
| Specification | Value |
| Insulation class | F |
| Protection class | IP68 |
| Cooling flow speed | min. 0.3 m/s at 35 °C |
| Power supply tolerance | +6% / -10% |
| Max. starts | 20 per hour |
| Max operating depth | 300 meters |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Weight (kg) | 11.5 for 4TW, 12 for 4WX |
| Phase | Single-phase |
| Speed | 2820 rpm |
| Power | 1.1 kW |
| Power (HP) | 1.5 HP |
| Voltage | 230 V |
Dab 1.5 HP Submersible Motor 4TW/4TWX Applications
- Underwater pumping systems
- Marine equipment and machinery
- Industrial fluid handling
- Deep-sea exploration devices
Dab 1.5 HP Submersible Motor 4TW/4TWX Benefits
- High durability with IP68 protection
- Suitable for deep-sea environments up to 300 meters
- Stable operation with power tolerance of +6%/-10%
- Reliable performance with frequent start capability
Dab 1.5 HP Submersible Motor 4TW/4TWX Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Motor 4TW/4TWX Price | Contact us |
