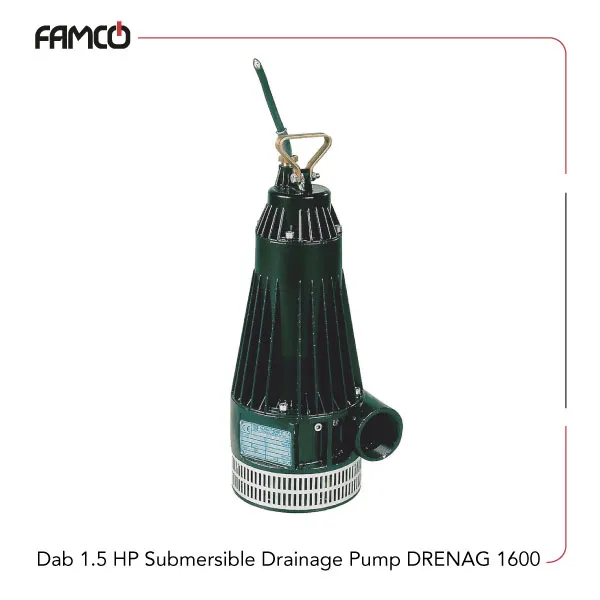

Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Specifications
Dab 1.5 HP submersible drainage pump DRENAG 1600 is designed for flexible operation, supporting both single-phase and three-phase power supplies to suit a variety of setups. It delivers 1.5 HP (1.1 kW) of power, offering efficient performance for high-volume water transfer tasks. The voltage range spans 230 to 400 volts, allowing compatibility with different electrical systems. This Dab drainage pump draws 7.4 amperes in single-phase mode and 3 amperes in three-phase mode, optimizing energy use. It can move up to 42 cubic meters per hour, or 700 liters per minute, making it ideal for applications that require substantial water flow. The maximum head height is 8 meters, suitable for lifting water over moderate distances. Weighing 23.5 kilograms, the pump provides stability during operation. Its 2.5-inch pipe diameter is compatible with standard piping systems, making installation and maintenance straightforward. With its combination of versatility, power, and practical design, this pump is well-suited for residential, commercial, or light industrial use.
| Specification | Value |
| Number of phases | Single- and Three-phase |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Voltage (V) | 230-400 |
| Current (A) | 7.4 (single-phase), 3 (three-phase) |
| Maximum Flow rate (m3/h) | 42 |
| Maximum Flow rate (l/min) | 700 |
| Maximum head (m) | 8 |
| Weight (kg) | 23.5 |
| Pipe DNM | 2″ 1/2 |

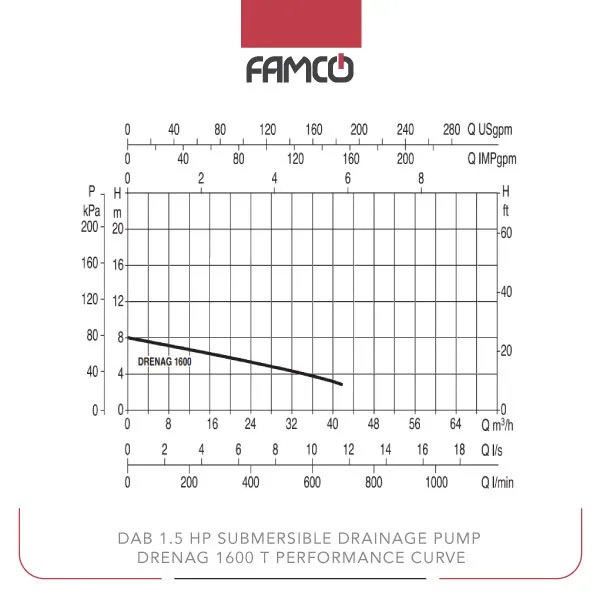

Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Performance Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 | 42 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 700 |
| H (m) | 8 | 7.6 | 7.2 | 7 | 6.7 | 6.4 | 6 | 5.3 | 4.7 | 3.9 | 2.8 |
Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Applications
- Irrigation systems for farms and gardens
- Water supply for residential or commercial buildings
- Industrial water transfer tasks
- Fountain and water feature installations
Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Benefits
- Flexible power options for different setups
- High flow capacity for large volume transfer
- Durable construction with moderate weight
- Easy to install with standard piping compatibility
Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Drainage Pump DRENAG 1600 Price | Contact us |
