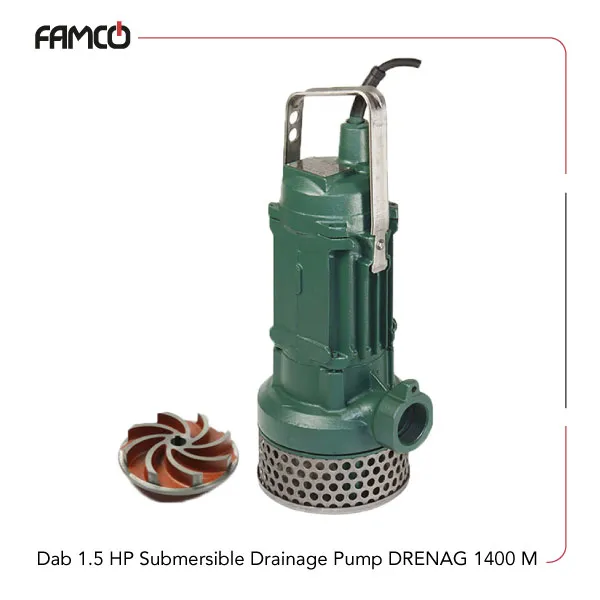

Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Specifications
This single-phase pump delivers 1.5 HP (1.1 kW) of power and operates with a current of 9.2 amperes. It can move up to 24 cubic meters of water per hour, or 400 liters per minute, making it suitable for a wide range of water transfer tasks. This Dab drainage pump can lift water to a maximum height of 19.2 meters, providing strong performance for moderate to high-elevation applications. Weighing 43.3 kilograms, it offers stability during operation. The pump allows solids up to 12 mm to pass through, making it effective for pumping water that contains debris or small particles. It is designed to operate efficiently with liquids ranging from 0 °C to 55 °C. With a maximum immersion depth of 7 meters, the pump is ideal for submersible applications. Its IP68 protection class ensures excellent resistance against dust and water, while insulation class F provides thermal protection for safe and prolonged operation. This combination of power, versatility, and protection makes it suitable for demanding domestic and light industrial water pumping needs.
| Specification | Value |
| Number of phases | Single-phase |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Current (A) | 9.2 |
| Maximum Flow rate (m3/h) | 24 |
| Maximum Flow rate (l/min) | 400 |
| Maximum head (m) | 19.2 |
| Weight (kg) | 43.3 |
| Free passage of solids | 12 mm |
| Liquid temperature range | 0 °C to +55 °C |
| Max. immersion depth | 7 metres |
| Protection class | IP68 |
| Insulation class | F |

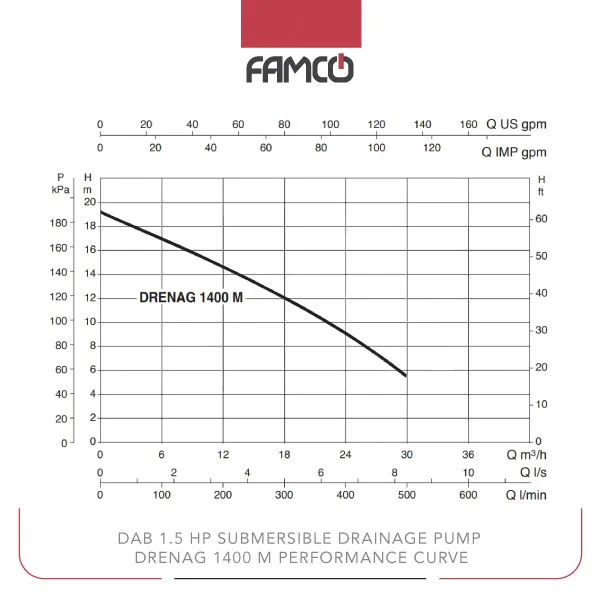

Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Performance Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| H (m) | 19.2 | 17 | 15.9 | 14.6 | 13.5 | 12.1 | 9 | 5.5 |
Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Applications
- Drainage of swimming pools and water tanks
- Irrigation and garden watering
- Industrial water transfer
- Flood and water removal in construction sites
Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Benefits
- High flow rate for quick water transfer
- Durable construction with IP68 protection
- Can handle solids up to 12 mm
- Operates efficiently within a wide temperature range
Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP Submersible Drainage Pump DRENAG 1400 M Price | Contact us |
