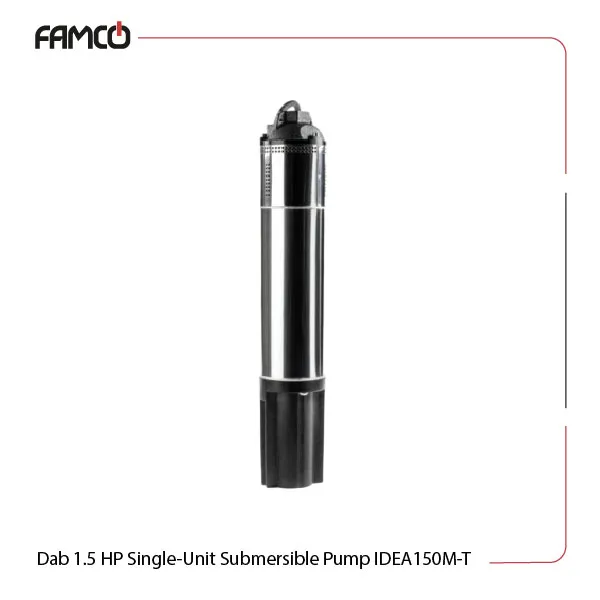

Overview of Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T

The power output in the IDEA150M-T Dab submersible pump is 1 kW, equivalent to 1.5 HP, to enable a strong performance. It also features a protection class of IP 68, which means it is highly resistant to water and dust. This pump is the ultimate solution for clean, non-viscous liquids that need to be moved. Its resilient construction, like using a single brass impeller, allows it to operate effectively in challenging environments. This product has a maximum immersion depth of 20 meters for submergenece in deep water setups. The stainless steel components are a sign of longevity and resistance to corrosion. This product is perfect for both residential and industrial uses and offers reliable performance and efficiency under heavy-duty applications. This model is provided in both single- or three-phase versions.

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M (single-phase)

Dab 1.5 HP Single-Unit Submersible Pump IDEA150T (three-phase)

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Specifications

This 1.5 HP or 1 kW product handles liquids within a temperature range of 0 °C to +35 °C. It efficiently pumps clean liquids that are free from solids and abrasives. The maximum immersion depth is 20 meters, which is suitable for various applications. The insulation class of F presents users with additional safety. The standard voltage options include single-phase at 230 V / 50 Hz and three-phase at 400 V / 50 Hz. The impeller implemented in this submersible pump unit is made of brass, while the mechanical seal consists of graphite and alumina. The shaft and motor are constructed from high-quality stainless steel to reach utmost stability. The total weight of the product is 15 kg, indicating it is light-weight and easy to move.

Specification	Value
Liquid temperature range	from 0 °C to +35 °C
Max. immersion depth	20 m
Power (kW)	1
Power (HP)	1.5
Protection class	IP 68
Insulation class	F
Standard voltage	single-phase	230 V / 50 Hz
	three-phase	400 V / 50 Hz

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Materials

Impeller: single, Brass PCuZn40Pb2 UNI 5705
Mechanical seal: GRAPHITE/ALUMINA
Shaft with motor: stainless steel AISI 431 X17CrNi16 2 UNI 10088-3
Motor: stainless steel AISI 304L X2CrNi19 11 UNI 10088-3

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Dimensions and Weight

Dimensions (mm)		Weight (kg)
Ø	H	15
93	602	15

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Technical Data

M3/h	0.4	0.6	0.9	1.2	1.5	1.8	2.1	2.4
l/min	7	10	15	20	25	30	35	40
H (m)	90	81	70	60	48	35	22	10

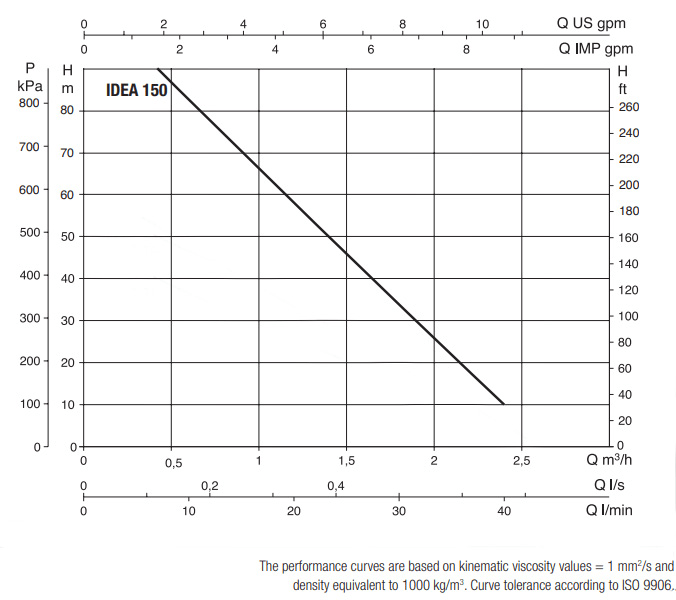

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Performance Curve

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Applications

Water supply systems
Irrigation in agriculture
Drainage in construction sites
Aquarium and pond maintenance

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Benefits

High durability due to stainless steel construction
Efficient operation within a wide temperature range
Low maintenance requirements
Versatile applications in various fields

Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Price List

No.	Name	Price
1	Dab 1.5 HP Single-Unit Submersible Pump IDEA150M-T Price	Contact us

Brand	Dab
Maximum Liquid Temperature (°C)	35
Maximum immersion depth (m)	20
Power (kW)	1
Power (HP)	1.5
Degree of Protection	IP68
Insulation Class	F
Voltage (V)	230, 400
Impeller Material	Brass
Mechanical Seal	Graphite/Alumina
Applications	Aquarium water circulation, Drainage, Irrigation, Water Transfer and Supply
