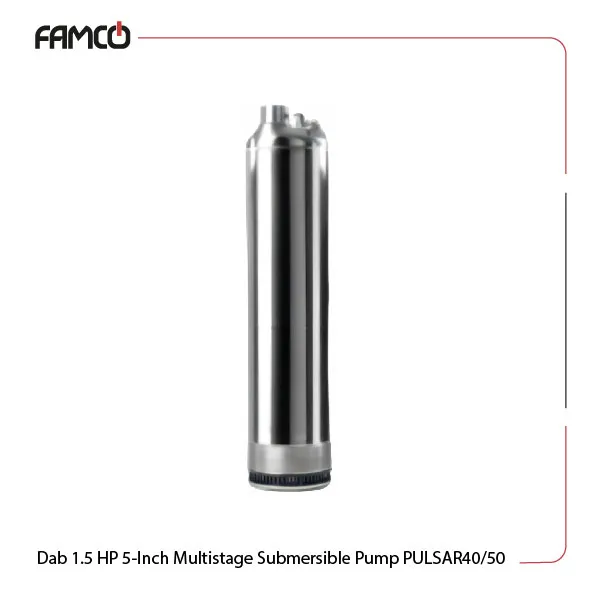

Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Specifications
This product operates on a voltage of either single-phase 220/240 V or three-phase 400 V to adapt to various setups. This submersible pump is particularly effective in environments that rely heavily on water movement. This Dab multistage submersible pump runs at a frequency of 50 Hz and has a solid protection class of IP68 to ensure durability even in challenging environments. The insulation class is rated F, which enhances safety and performance in longer-term operations. For added convenience, the single-phase version can be equipped with an optional automatic operation feature using a float switch. The impeller is made from high-quality technopolymer to increase efficiency while functioning.
The seal lubrication fluid used is ESSO MARCOL 172 OIL to provide excellent protection. The mechanical seals are designed with a complete upper seal made of NBR/Ceramic/Carbon and a lower seal of NBR/Silicon/Carbon to increase reliability. The product’s power output of 0.75 kW (1 HP) and a height range of 18-56 meters has made it suitable for various applications.
| Specification | Value | |
| Voltage (V) | single-phase | 220/240 V |
| three-phase | 400 V | |
| Frequency (Hz) | 50 | |
| Protection class | IP68 | |
| Insulation class | F | |
| Power (kW) | 0.75 | |
| Power (HP) | 1 | |
| Head (m) | 18-56 | |
Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Materials
- Impeller: Technopolymer
- Seal lubrication: FLUID ESSO MARCOL 172 OIL
- Complete upper mechanical seal: NBR/Ceramic/Carbon
- Complete lower mechanical seal: NBR/Silicon/Carbon

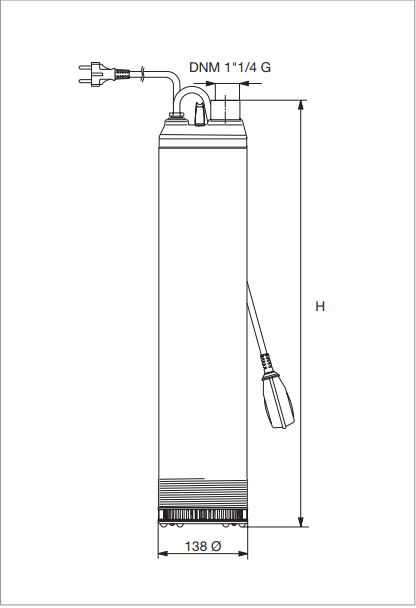

Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 17.5 |
| 562 |
Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Technical Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 |
| l/min | 0 | 20 | 40 | 60 | 80 |
| H (m) | 56 | 51 | 45 | 33 | 18 |

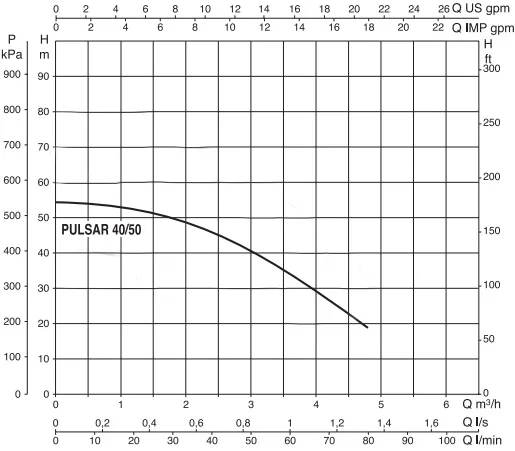

Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Performance Curve
Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Applications
- Agricultural irrigation systems
- Industrial water transfer
- Residential drainage solutions
- Construction site dewatering
Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Benefits
- Versatile voltage options for different setups
- Durable construction with IP68 protection
- Efficient operation with high-quality impeller
- Reliable sealing technology for long-lasting performance
Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Price List
| No. | Name | Price |
| 1 | Dab 1.5 HP 5-Inch Multistage Submersible Pump PULSAR40/50 Price | Contact us |
