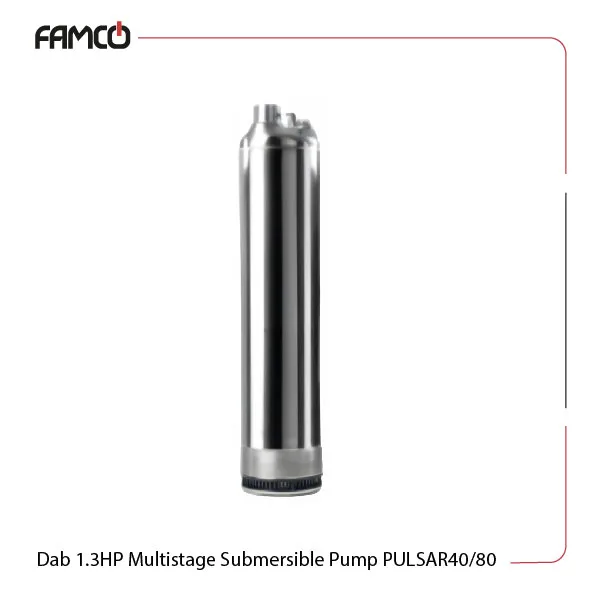

Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Specifications
Dab 1 HP 5-Inch multistage submersible pump PULSAR40/80 features a power output of 0.75 kW (1 HP) and operates efficiently within a height range of 13 to 51 meters. It can handle liquid temperatures from 0 °C to +40 °C, making it suitable for various applications. The pumped liquid in this Dab submersible pump must be clean and free from solids, abrasives, and aggressive substances. The maximum immersion depth of this pump is 20 meters deep, designed for consistent performance. The motor is protected by an IP 68 class to increase durability in challenging environments. Additionally, the motor protection rating is F to increase the pump’s overall quality. The impeller, diffuser, and shaft are made from technopolymer which is a lightweight yet strong material. The seal lubrication fluid used is ESSO MARCOL 172 OIL, which contributes to the longevity of the motor.
| Specification | Value | |
| Power (kW) | 1 | |
| Power (HP) | 1.36 | |
| H (m) | 13-51 | |
| Liquid temperature range | from 0 °C to +40 °C | |
| Pumped liquid | clean, free of solids and abrasives, non-aggressive | |
| Maximum immersion depth | 20 meters | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Voltage (V) | Single-phase | 230 V / 50 Hz |
| Three-phase | 400 V / 50 Hz | |
Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Materials
- Impeller: technopolymer
- Diffuser: technopolymer
- Shaft with motor: technopolymer
- Seal lubrication fluid: ESSO MARCOL 172 OIL

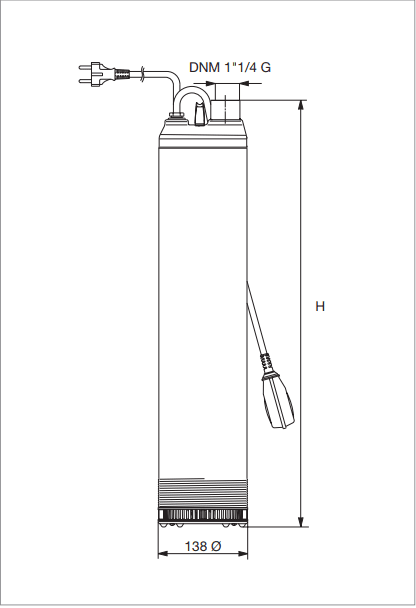

Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 18.5 |
| 630 |
Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Technical Data
| M3/h | 0 | 1.2 | 2.5 | 3.6 | 4.8 | 6 | 7.2 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 |
| H (m) | 64 | 61 | 56.8 | 50 | 41.5 | 30.5 | 16.2 |

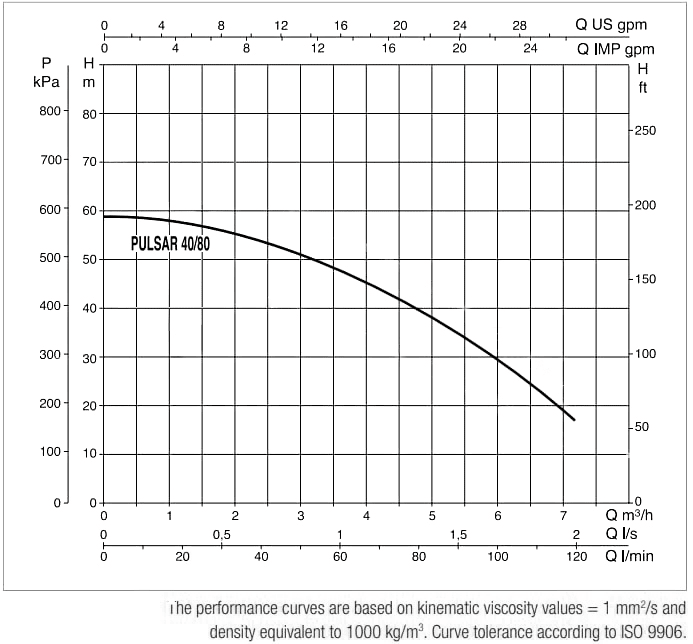

Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Performance Curve
Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Industrial liquid handling
- Aquarium and pond maintenance
Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Benefits
- Efficient power consumption with 0.75 kW output
- Durable construction with technopolymer materials
- High immersion depth capability for versatile use
- Reliable motor protection for extended lifespan
Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Price List
| No. | Name | Price |
| 1 | Dab 1.3HP Multistage Submersible Pump PULSAR40/80 Price | Contact us |
