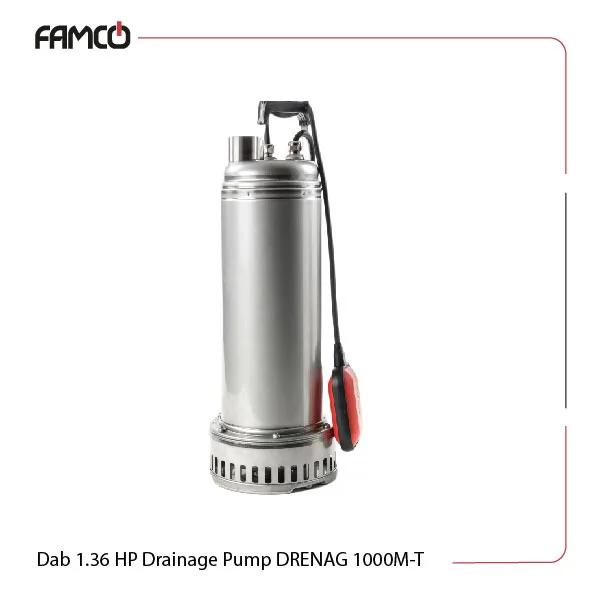

Dab 1.36 HP Drainage Pump DRENAG 1000M-T Specifications
This pump is designed to handle various types of liquids, including rainwater, groundwater, and clean wastewater. It can manage solids up to 10 mm in size, perfect for most drainage liquids. The liquid temperature range is suitable for domestic use from 0 °C to +35 °C, and for other applications, it can handle temperatures up to +50 °C. This Dab pump operates efficiently at a maximum ambient temperature of +40 °C and can be submerged up to 7 meters deep with optimal performance still. This submersible pump also features a powerful construction with an AISI 304 stainless steel body and impeller to reach durability. The motor is protected with an IP 68 rating for better compatibility with challenging environments. This sturdy pump operates on standard voltages of 220-240 V for single-phase and 380-415 V for three-phase systems, with a frequency of 50 Hz. This pump can be installed in various orientations, either fixed or portable, and has a maximum starting capacity of 20 times per hour, offering standard results.
| Specification | Value | |
| Pumped liquid | rain water, ground water, sandy water from construction sites and clean, non aggressive, waste water | |
| Free passage of solids | 10 mm | |
| Liquid temperature range | domestic use (EN 60335-2-41) | 0 °C to +35 °C |
| other uses | 0 °C to +50 °C | |
| Maximum ambient temperature for operation with motor above water | +40 °C | |
| Maximum immersion depth | 7 metres | |
| Motor protection class | IP 68 | |
| Insulation class | F | |
| Number of poles | 2 | |
| Max starts/hour | 20 | |
| Power (kW) | 1 | |
| Power (HP) | 1.36 | |
| Voltage (V) | single-phase | 220-240 |
| three-phase | 400 | |
| Frequency (Hz) | 50 | |
| Head (m) | 4.7-15.3 | |
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Materials
- Pump body: AISI 304 stainless steel x5crni 1810 – uni 6900/71
- Impeller: AISI 304 stainless steel x5crni 1810 – uni 6900/71
- Motor shaft: microcast stainless steel aisi 316 x5crnimo 1712 – uni 6900/71
- Handle: aisi 304 stainless steel x5crni 1810 – uni 6900/7 insulating rubber coated
- Mechanical seal on pump side: Silicon Carbide/Silicon Carbide
- Mechanical seal on motor side: Carbon/Alumina
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Dimension and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Ø A | Ø C | D | H | H1 | |
| 215 | 175 | 71 | 713 | 385 | 17 |
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Technical Data
| Q= m3 /h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q=l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 15.3 | 13.7 | 12.1 | 10.5 | 8.7 | 6.8 | 4.7 |
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Performance Curve
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Applications
- Pumping rainwater for irrigation systems
- Draining groundwater from construction sites
- Moving clean wastewater in residential settings
- Managing sandy water in industrial applications
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Benefits
- Durable stainless steel construction for long-lasting use
- Handles solids up to 10 mm, increasing versatility
- Operates efficiently in various temperature ranges
- Flexible installation options for different environments
Dab 1.36 HP Drainage Pump DRENAG 1000M-T Price List
| No. | Name | Price |
| 1 | Dab 1.36 HP Drainage Pump DRENAG 1000M-T Price | Contact us |
