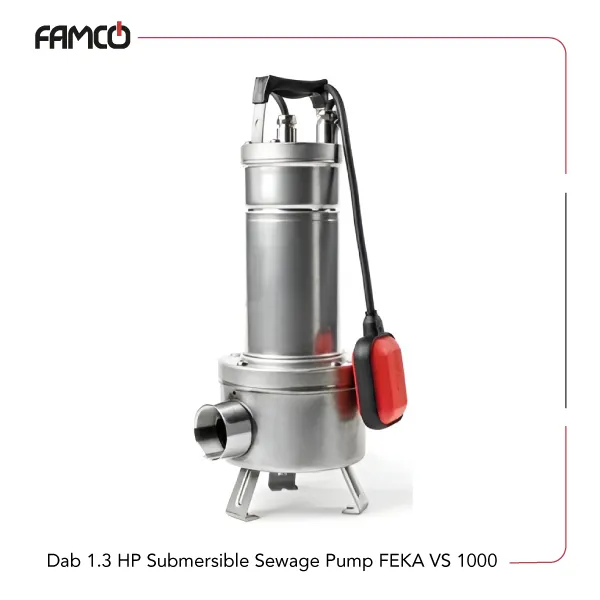

Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Specifications
This pump is designed for versatile applications, featuring a solids free passage of 50 mm, making it suitable for handling liquids with small solids. It operates efficiently within a temperature range of 0 °C to 35 °C for domestic use, and up to 50 °C for other applications. The pump can be submerged up to 7 meters deep and is protected against water ingress with an IP 68 rating, ensuring durability in harsh environments. It has a robust construction with a pump body and impeller made from AISI 304 stainless steel, providing corrosion resistance and strength. The mechanical seal uses silicon carbide on both sides on the pump, and carbon with alumina on the motor, ensuring reliable sealing and long service life. This Dab submersible pump supports both fixed and portable installation in a vertical position, offering flexibility for various setups. The Dab sewage pump operates on standard voltages of 220-240 V for single-phase and 380-415 V for three-phase power supplies, with a frequency of 50 Hz. It delivers a maximum head of 11.8 meters and a flow rate of up to 400 liters per minute, powered by a 1 kW (1.36 HP) motor. Weighing 19.3 kg, it combines power and portability for efficient liquid transfer in multiple scenarios.
| Specification | Value |
| Solids free passage | 50 mm |
| Liquid temperature range | 0 °C to +35 °C for domestic use, 0 °C to +50 °C for other uses |
| Maximum ambient temperature for operation with motor above water | +40 °C |
| Maximum immersion depth | 7 metres |
| Motor protection class | IP 68 |
| Insulation class | F |
| Standard voltage | 220-240 V – single-phase, 380-415 V – three-phase |
| Frequency (Hz) | 50 |
| Installation | fixed or portable, vertical position |
| Pump body | AISI 304 Stainless Steel |
| Impeller | AISI 304 Stainless Steel |
| Mechanical seal | Silicon Carbide/Silicon Carbide on pump side, Carbon/Alumina on motor side |
| Max. delivery head (m) | 11.8 |
| Max. flow rate (l/min) | 400 |
| Power (kW) | 1 |
| Power (HP) | 1.36 |
| Weight (kg) | 19.3 |

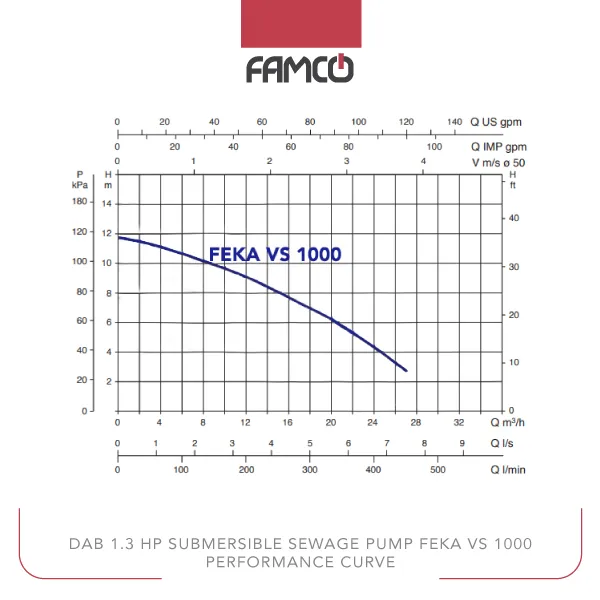

Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| head (m) | 11.8 | 11.3 | 10.5 | 9.8 | 9 | 8 | 6.8 | 4.1 |
Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Applications
- Water drainage in construction sites
- Irrigation and garden watering
- Industrial liquid transfer
- Flood control and emergency drainage
Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Benefits
- High durability with stainless steel construction
- Suitable for handling small solids
- Flexible installation options
- Reliable and efficient performance
Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Price List
| No. | Name | Price |
| 1 | Dab 1.3 HP Submersible Sewage Pump FEKA VS 1000 Price | Contact us |
