Dab 1.3 HP Submersible Pump GRINDER1000M-T Specifications
This submersible grinder pump is designed for tough environments where solids need to be processed during transfer. Compatible with both single-phase (220–240 V) and three-phase (380–415 V) systems, this Dab submersible pump runs on a 50 Hz frequency and carries an IP68 protection rating. As another Dab pump on the market, you can expect it to have durable materials used in its build, such as carbon graphite and alumina. With insulation class F and a built-in grinder made of hardened steel, it’s built for continuous operation in demanding sewage applications. This product’s maximum delivery head reaches 15.2 meters, while the highest flow rate it reaches is 12 m3/h, which is significant.
| Specification | Value |
| Power (HP) | 1.3 HP |
| Power (kW) | 1 kW |
| Maximum flow rate | 200 l/min (12 m³/h) |
| Maximum delivery head | 3.6 – 15.2 meters |
| Maximum immersion depth | 20 meters (with proper cable) |
| Max temperature | 0 – 35°C |
| Type of liquid | Wastewater with fibers/textiles |
| Voltage (single-phase) | 220 – 240 V |
| Voltage (three-phase) | 380 – 415 V |
| Frequency | 50 Hz |
| Protection degree | IP68 |
| Insulation class | F |
| Number of poles | 2 |
| Weight | 38 kg |
Dab 1.3 HP Submersible Pump GRINDER1000M-T Materials
- shaft seal (pump side): Carbon graphite – Alumina
- shaft seal (motor side): Carbon graphite – Alumina
- Grinder: AISI 440C hardened steel
Dab 1.3 HP Submersible Pump GRINDER1000M-T Technical Data
| m3/h | 0 | 3 | 6 | 9 | 12 |
| l/min | 0 | 50 | 100 | 150 | 200 |
| head (m) | 15.2 | 12.9 | 10 | 6.9 | 3.6 |

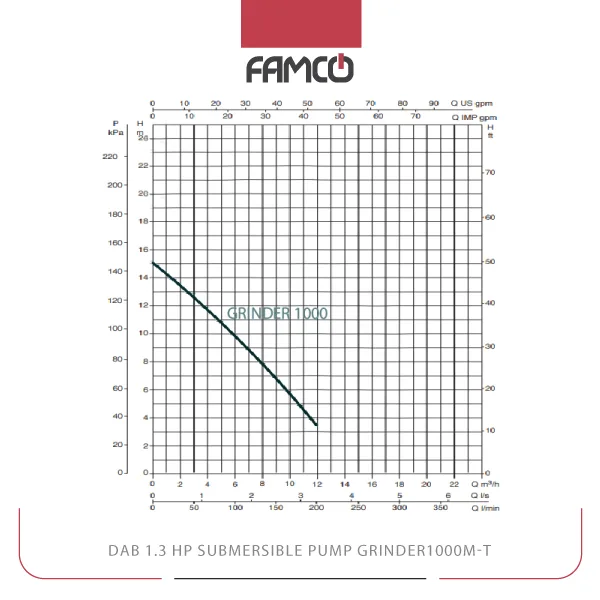

Dab 1.3 HP Submersible Pump GRINDER1000M-T Performance Curve
Dab 1.3 HP Submersible Pump GRINDER1000M-T Applications
- Wastewater treatment plants
- Residential and commercial sewage systems
- Septic tanks in rural properties
- Industrial wastewater pits
Dab 1.3 HP Submersible Pump GRINDER1000M-T Benefits
- Integrated grinder breaks down fibrous and solid waste
- Can operate at deeper levels with appropriate cable
- IP68 rating ensures full submersion without damage
- Dual-voltage support for flexible installations
Dab 1.3 HP Submersible Pump GRINDER1000M-T Price List
| No. | Name | Price |
| 1 | Dab 1.3 HP Submersible Pump GRINDER1000M-T Price | Contact us |
