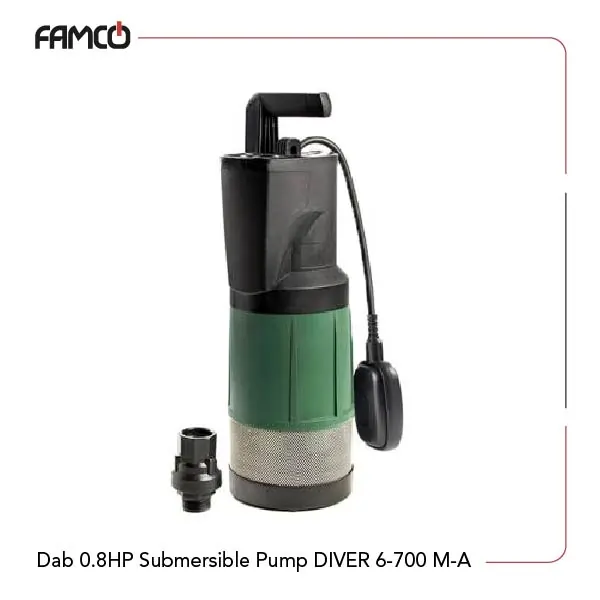

Dab 0.8HP Submersible Pump DIVER 6-700 M-A Specifications
Dab 0.8HP submersible pump DIVER 6-700 M-A features a head range from 1.8 to 36 meters, making it suitable for various applications. It can handle clean liquids that are free from solids and abrasives, ensuring efficient operation. The liquid temperature in this Dab multi-impeller submersible pump can range from 0 °C to +35 °C, creating versatility in effect. It has a maximum immersion depth of 12 meters, designed for deep installations. The motor is protected with an IP 68 rating, ensuring durability in wet conditions. It can be installed in a fixed or portable setup. This Dab submersible pump operates either manually or automatically with a float switch. The impeller is made from technopolymer and AISI 304 stainless steel, while the shaft is AISI 303 stainless steel. The body is constructed from technopolymer, and the motor case is aluminum. The rotor shaft is made from AISI 416 stainless steel, providing strength and reliability.
| Specification | Value |
| Maximum Delivery Head (m) | 36 |
| Pumped liquid | clean, free of solids and abrasives, non-aggressive |
| Liquid temperature range | from 0 °C to +35 °C |
| Max. immersion depth | 12 metres |
| Motor protection class | IP 68 |
| Motor protection rating | F |
| Installation | fixed or portable, vertical position |
| Operation | manual or automatic with float switch (continuous duty with totally submerged pump) |
| IMPELLER | TECHNOPOLYMER/AISI 304 STAINLESS STEEL |
| SHAFT | Stainless steel, AISI 303 |
| BODY | TECHNOPOLYMER |
| Motor case | Aluminum |
| Rotor shadt | Stainless steel, AISI 416 |
| Dimensions | vary |
| A | 150 |
| Ø B | 52 |
| H | 375 |
| H1 | 318 |
| Ø | 1” |
| Weight (kg) | 8.7 |
| Power (kW) | 0.65 |
| Power (HP) | 0.88 |

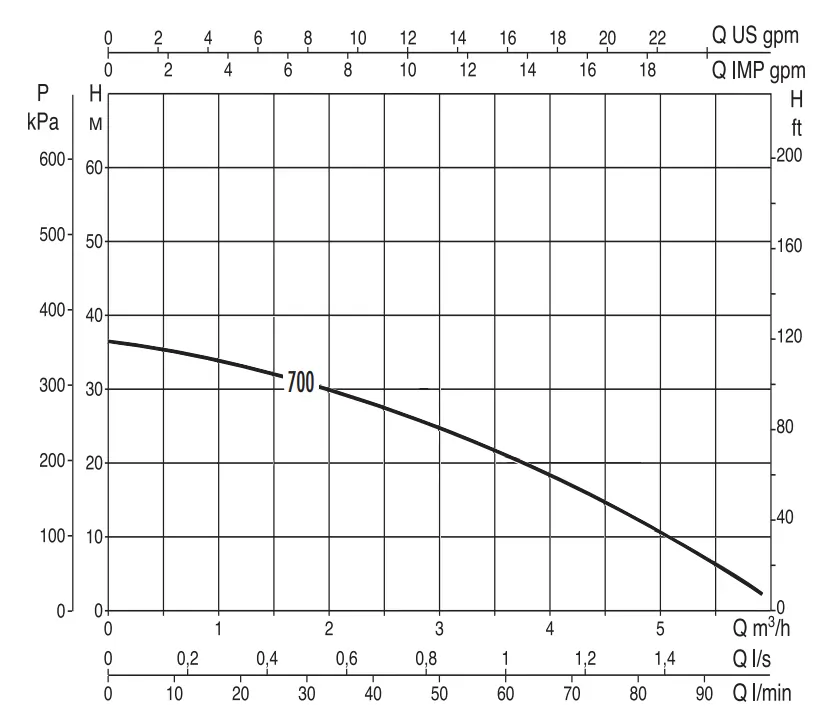

Dab 0.8HP Submersible Pump DIVER 6-700 M-A Performance Curve
| Q=m3 /h | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.1 | 5.4 |
| Q=l/min | 0 | 15 | 30 | 45 | 60 | 75 | 85 | 90 |
| H (m) | 36 | 32.6 | 28.5 | 23.6 | 17 | 9.5 | 4.6 | 1.8 |
Dab 0.8HP Submersible Pump DIVER 6-700 M-A Applications
- Residential water transfer
- Agricultural irrigation systems
- Industrial liquid handling
- Aquarium and pond maintenance
Dab 0.8HP Submersible Pump DIVER 6-700 M-A Benefits
- Durable construction with high-quality materials
- Versatile installation options for various needs
- Automatic operation for ease of use
- Efficient performance with low power consumption
Dab 0.8HP Submersible Pump DIVER 6-700 M-A Price List
| No. | Name | Price |
| 1 | Dab 0.8HP Submersible Pump DIVER 6-700 M-A Price | Contact us |
