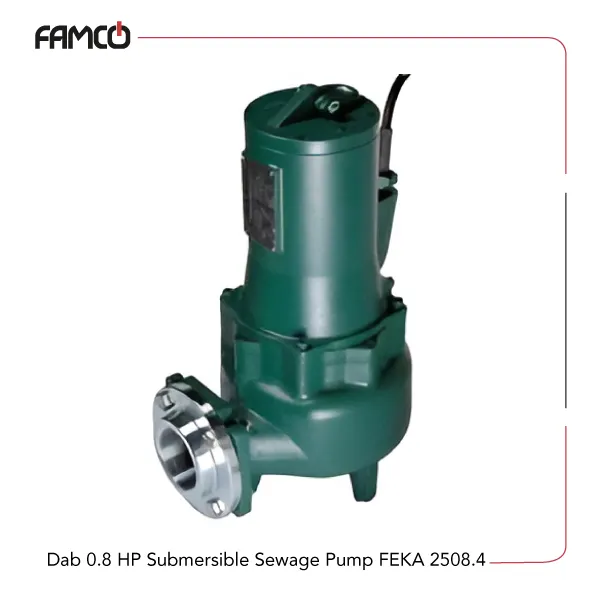

Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Specifications
This pump features a robust IP 68 protection level, making it suitable for harsh environments and underwater applications. It has an insulation class F, ensuring safety and durability during operation. The pump can handle solids up to 62 mm in size, making it ideal for transporting mixed fluids with debris. It operates efficiently within a temperature range from 0°C to 40°C, suitable for various liquids. The Dab submersible pump FEKA 2508.4 supports both single-phase (230 V) and three-phase (400 V) power supplies, with a frequency of 50 Hz. This Dab sewage pump can deliver a maximum head of 5.4 meters and can pump up to 600 liters per minute, making it suitable for high-volume applications. The power consumption is 0.6 kW (0.8 HP), and it weighs approximately 40 kg, indicating a sturdy build for reliable use over time.
| Specification | Value |
| Degree of protection | IP 68 |
| Insulation class | F |
| Free solids passage (mm) | 62 |
| Fluid Temperature Range | 0°C to +40°C |
| Single-phase voltage | 230 V |
| Three-phase voltage | 400 V |
| Frequency (Hz) | 50 |
| Max. delivery head (m) | 5.4 |
| Max. flow rate (l/min) | 600 |
| Power (kW) | 0.6 |
| Power (HP) | 0.8 |
| Weight (kg) | 40 |
Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Performance Data
| m3 /h | 0 | 3 | 6 | 12 | 18 | 24 | 36 |
| l/min | 0 | 50 | 100 | 300 | 300 | 400 | 600 |
| Head (m) | 5.4 | 5.1 | 4.8 | 4.1 | 3.4 | 2.6 | 1 |
Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Applications
- Industrial fluid transfer
- Water supply systems
- Wastewater management
- Aquarium and pond circulation
Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Benefits
- High durability with IP 68 protection
- Handles solids up to 62 mm
- Flexible power options (single and three-phase)
- Efficient flow rate up to 600 l/min
Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Price List
| No. | Name | Price |
| 1 | Dab 0.8 HP Submersible Sewage Pump FEKA 2508.4 Price | Contact us |
