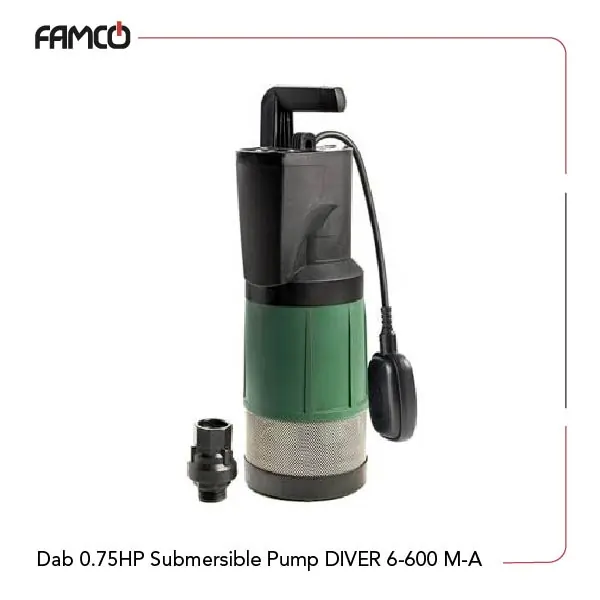

Dab 0.75HP Submersible Pump DIVER 6-600 M-A Specifications
Dab 0.75HP multi-impeller submersible pump DIVER 6-600 M-A features a head range of 1.5 to 24 meters, making it versatile for various applications. It can handle clean liquids that are free from solids and abrasives, ensuring smooth operation. The liquid temperature in this Dab submersible pump can range from 0 °C to +35 °C, which is suitable for many environments. The product’s maximum immersion depth of 12 meters can be used in deeper applications. The motor is protected with an IP 68 rating, ensuring it is safe from dust and water. It operates either manually or automatically with a float switch, allowing for continuous duty when fully submerged. The impeller is made from technopolymer and AISI 304 stainless steel, while the shaft is crafted from AISI 303 stainless steel. The body is also made from technopolymer, ensuring durability. The motor case is aluminum, and the rotor shaft is AISI 416 stainless steel.
| Specification | Value |
| Maximum Delivery Head (m) | 24 |
| Liquid temperature range | from 0 °C to +35 °C |
| Max. immersion depth | 12 meters |
| Motor protection class | IP 68 |
| Motor protection rating | F |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
Dab 0.75HP Submersible Pump DIVER 6-600 M-A Materials
- Impeller: Technopolymer /AISI 304 stainless steel
- Shaft: Stainless steel, AISI 303
- Body: Technopolymer
- Motor case: Aluminum
- Rotor shaft: Stainless steel, AISI 416

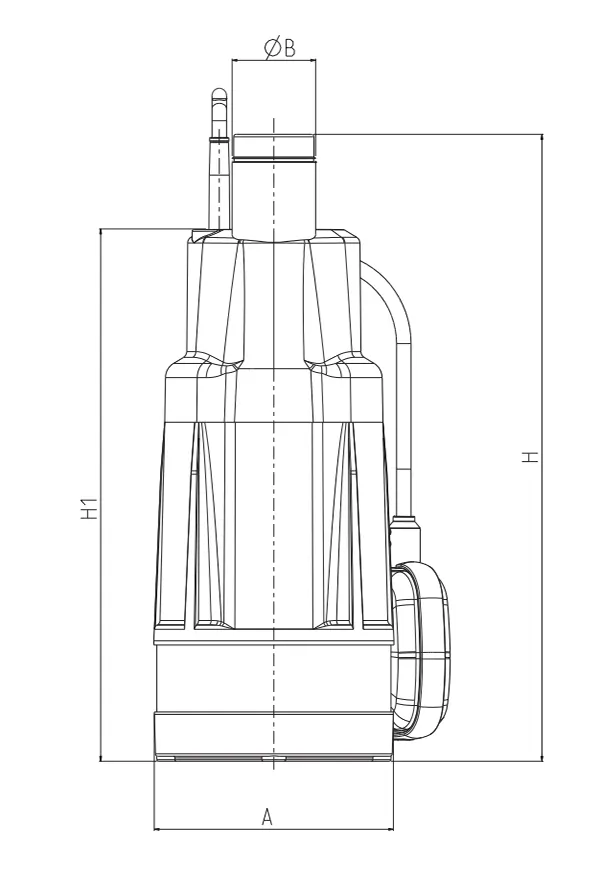

Dab 0.75HP Submersible Pump DIVER 6-600 M-A Dimensions
| A | 150 |
| Ø B | 52 |
| H | 350 |
| H1 | 293 |
| Ø | 1” |
| Weight (kg) | 7.5 |
Dab 0.75HP Submersible Pump DIVER 6-600 M-A Technical Data
| Q=m3 /h | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.1 | 5.4 |
| Q=l/min | 0 | 15 | 30 | 45 | 60 | 75 | 85 | 90 |
| H (m) | 24 | 22 | 19.5 | 16.2 | 12.5 | 7.5 | 3.7 | 1.5 |

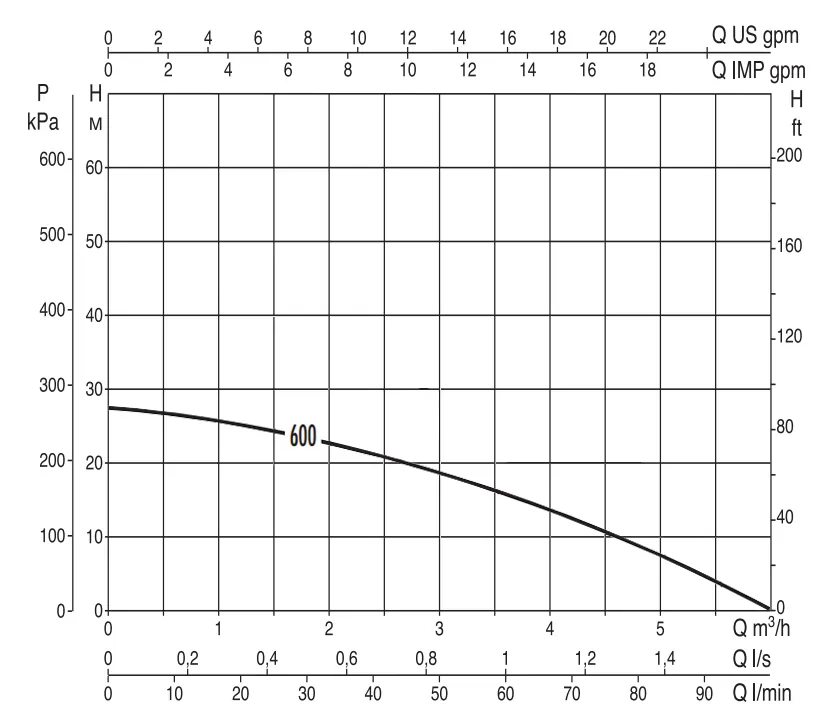

Dab 0.75HP Submersible Pump DIVER 6-600 M-A Performance Curve
Dab 0.75HP Submersible Pump DIVER 6-600 M-A Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Aquarium and pond water circulation
Dab 0.75HP Submersible Pump DIVER 6-600 M-A Benefits
- Durable construction with stainless steel components
- Versatile operation modes for flexibility
- High immersion depth for various applications
- Efficient performance with low power consumption
Dab 0.75HP Submersible Pump DIVER 6-600 M-A Price List
| No. | Name | Price |
| 1 | Dab 0.75HP Submersible Pump DIVER 6-600 M-A Price | Contact us |
