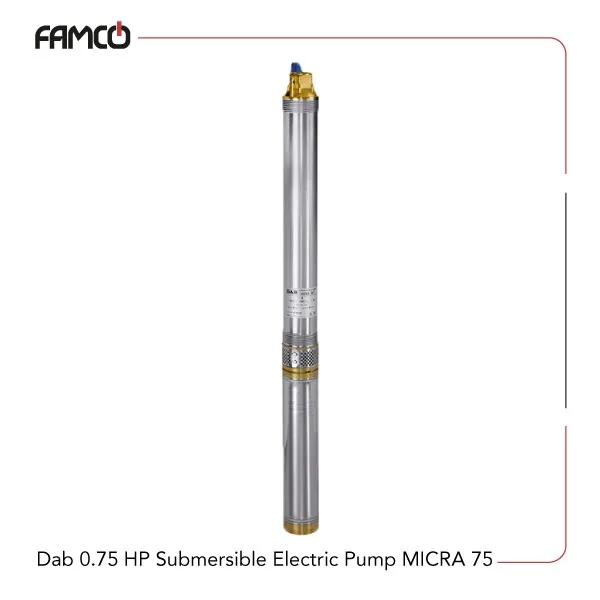

Dab 0.75 HP Submersible Electric Pump MICRA 75

Dab 0.75 HP Submersible Pump MICRA 75

0.5 kW (0.75 HP)

Single and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

Overview of Dab 0.75 HP Submersible Pump MICRA 75

Dab submersible pump MICRA 75 offers a compact solution for light-duty pumping tasks. It provides 0.55 HP, or 0.75 kW, of power, making it suitable for small-scale applications where precision and control are important. The motor can handle a maximum flow rate of 2.7 m³/h, which is equivalent to 45 liters per minute, allowing it to move water efficiently in modest volumes.

Dab 0.75 HP Submersible Pump MICRA 75 Specifications

This pump delivers 0.55 HP (0.75 kW) of power, suitable for a range of pumping tasks. It handles a maximum flow rate of 2.7 cubic meters per hour, or 45 liters per minute, and can achieve a maximum head of 68 meters, allowing liquids to be lifted efficiently over significant heights. This Dab submersible pump operates with liquids at temperatures between 0°C and 35°C, providing versatility across different environments. It is capable of handling up to 40 grams of sand per cubic meter of liquid, making it suitable for fluids containing some particulate matter. The discharge port has a 1-inch GAS connection, compatible with standard fittings. The pump can accommodate a power supply variation of +6% to -10% and supports up to 20 starts per hour, allowing for both continuous and intermittent operation.

Specification	Value
Power (HP)	0.55
Power (kW)	0.75
Maximum flow rate (m3/h)	2.7
Maximum flow rate (l/min)	45
Maximum head (m)	68
Liquid temperature range	from 0 °C to +35 °C
Maximum permitted amount of sand	40 g/m3
Discharge port diameter	1″ GAS
Power supply tolerance	+6 % / -10 %
Max. starts	20/h

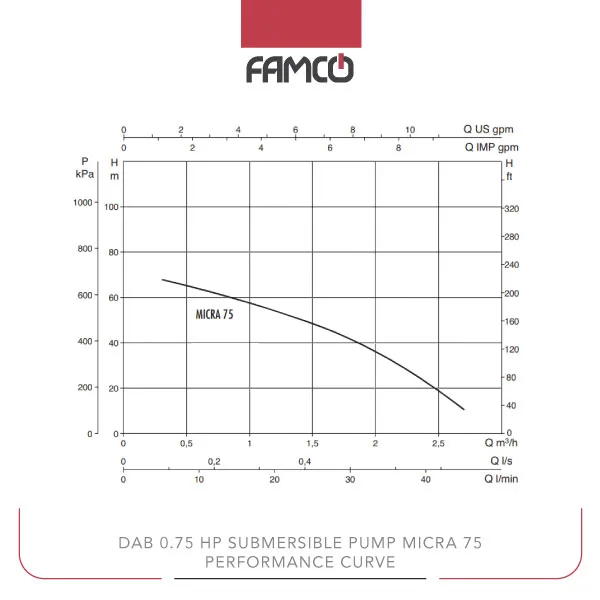

Dab 0.75 HP Submersible Pump MICRA 75 Performance Data

Q (m3/h)	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q (l/min)	5	10	15	20	25	30	35	40	45
H (m)	68	64	59	54	48	42	33	23	11

Dab 0.75 HP Submersible Pump MICRA 75 Applications

Water transfer in residential settings
Irrigation systems for farms
Drainage and flood control
Industrial liquid handling

Dab 0.75 HP Submersible Pump MICRA 75 Benefits

High maximum head for lifting liquids over long distances
Capable of handling some sand and particulates
Flexible power supply tolerance for varied conditions
Suitable for both continuous and intermittent use

Dab 0.75 HP Submersible Pump MICRA 75 Price List

No.	Name	Price
1	Dab 0.75 HP Submersible Pump MICRA 75 Price	Contact us

Brand	Dab
Power (HP)	0.75
Power (kW)	0.5
Maximum Flow Rate (L/min)	45
Maximum Flow Rate (m3/h)	2.7
Maximum Delivery Head (m)	68
Maximum Liquid Temperature (°C)	35
