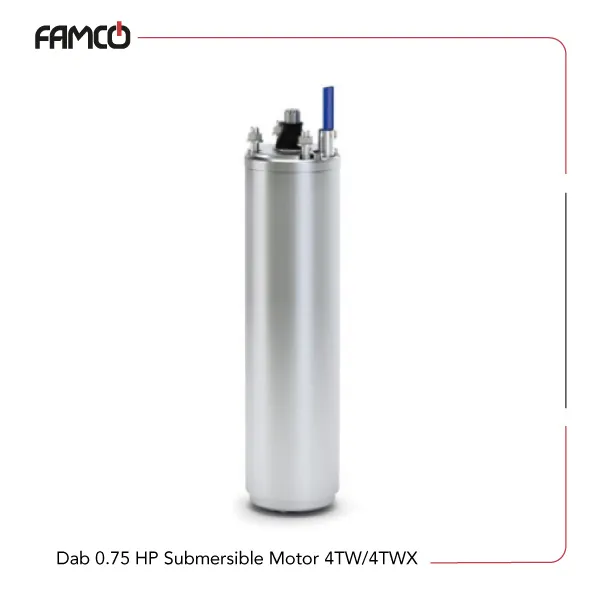

Dab 0.75 HP Submersible Motor 4TW/4TWX Specifications
This product features an insulation class of F, ensuring high thermal endurance. It has an IP68 protection rating, making it highly resistant to dust and water ingress, suitable for harsh environments. The cooling system maintains a minimum flow speed of 0.3 meters per second at 35 degrees Celsius, which helps in effective heat dissipation during operation. Power supply tolerance is flexible, allowing for a variation of +6% to -10%, ensuring stable performance despite voltage fluctuations. The motor can handle up to 20 starts per hour, making it suitable for applications requiring frequent on/off cycles. This Dab submersible motor is designed to operate at a maximum depth of 300 meters underwater, ideal for submersible tasks. The motor has two poles and runs at a frequency of 50 Hz, with a speed of 2820 RPM. It is a single-phase motor with a power output of 0.55 kW (0.75 HP) and weighs 8.7 kg for model 4TW and 9.2 kg for model 4WX. The operating voltage is 230 volts, providing compatibility with standard power supplies.
| Specification | Value |
| Insulation class | F |
| Protection class | IP68 |
| Cooling flow speed | min. 0,3 m/s at 35 °C |
| Power supply tolerance | + 6 % / -10 % |
| Max. starts | 20/h |
| Max operating depth | 300 m |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Weight (kg) | 4TW: 8.7, 4WX: 9.2 |
| Phase | single-phase |
| Speed (rpm) | 2820 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Voltage (V) | 230 |
Dab 0.75 HP Submersible Motor 4TW/4TWX Applications
- Submersible pumps for water extraction
- Marine equipment and underwater machinery
- Industrial water management systems
- Mixers and agitators in harsh environments
Dab 0.75 HP Submersible Motor 4TW/4TWX Benefits
- High durability with IP68 protection rating
- Reliable operation at depths up to 300 meters
- Suitable for frequent start-stop cycles
- Energy-efficient with stable voltage tolerance
Dab 0.75 HP Submersible Motor 4TW/4TWX Price List
| No. | Name | Price |
| 1 | Dab 0.75 HP Submersible Motor 4TW/4TWX Price | Contact us |
