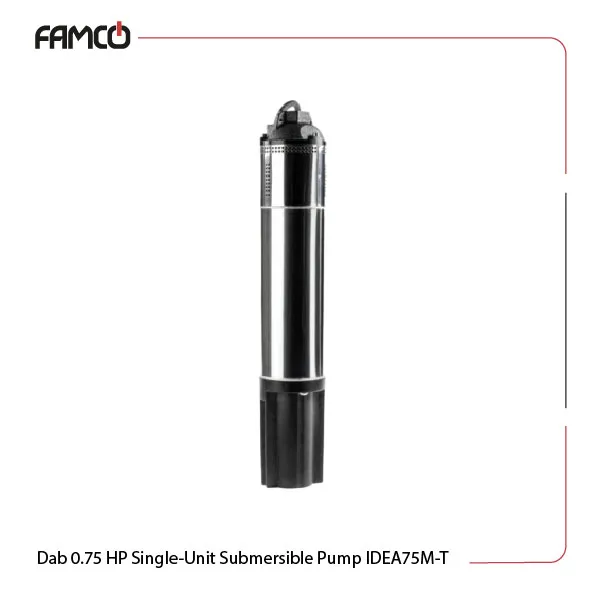

Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Specifications
Dab 0.75 HP single-unit submersible pump IDEA75M-T is designed for efficient liquid pumping within a temperature range of 0 °C to +35 °C. This Dab submersible pump handles clean liquids that are free from solids and abrasives for a smooth operation. The maximum immersion depth in this product is 20 meters for various applications. The power rating is 0.55 kW (0.75 HP) to enhance an overall reliable performance. This pump operates at head heights between 6.8 to 39 meters. It also comes in with an IP 68 protection class, which is well-suited for wet environments. The insulation class is F for utmost protection. The product’s motor operates on standard voltages of 230 V (single-phase) or 400 V (three-phase), matching different needs.
The impeller of this submersible pump is made of brass, while the mechanical seal consists of graphite and alumina to increase longevity. The shaft and motor are constructed from high-quality stainless steel, all contributing to the powerful performance of the pump. Weighing in at 10.5 kg, this pump is easily manageable for installation and maintenance.
| Specification | Value | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Pumped liquid | clean, free of solids and abrasives, non-viscous, non crystallized and chemically neutral, with properties similar to water | |
| Max. immersion depth | 20 m | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Protection class | IP 68 | |
| Insulation class | F | |
| Motor rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| Weight (Kg) | 10.5 | |
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Materials
- Impeller: single, Brass PCuZn40Pb2 UNI 5705
- Mechanical seal: GRAPHITE/ALUMINA
- Shaft with motor: stainless steel AISI 431 X17CrNi16 2 UNI 10088-3
- Motor: stainless steel AISI 304L X2CrNi19 11 UNI 10088-3
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 10.5 |
| 93 | 482 | |
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Technical Data
| M3/h | 0.4 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| l/min | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| H (m) | 39 | 37 | 32 | 27.6 | 22.5 | 17.6 | 12.2 | 6.8230 |

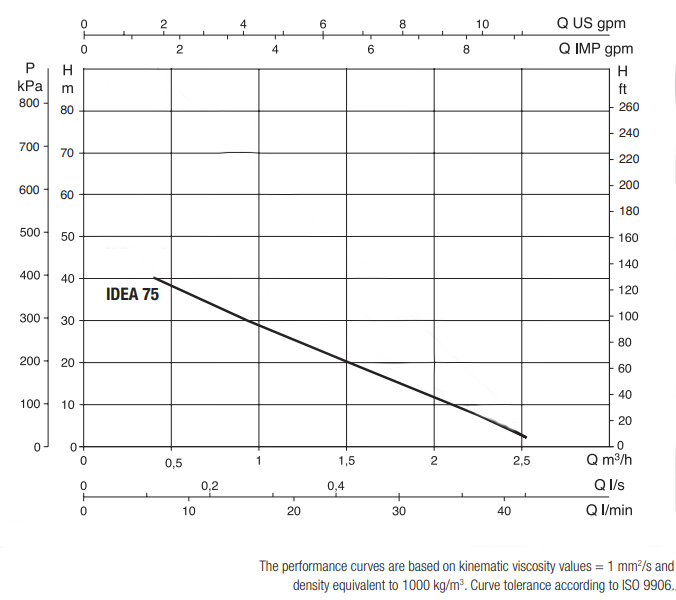

Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Performance Curve
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Applications
- Irrigation systems for agriculture
- Water supply for residential buildings
- Industrial liquid transfer processes
- Aquarium and pond water circulation
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Benefits
- Efficient operation within a wide temperature range
- Durable construction with high-quality materials
- Easy installation and maintenance due to manageable weight
- Versatile applications across different sectors
Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Price List
| No. | Name | Price |
| 1 | Dab 0.75 HP Single-Unit Submersible Pump IDEA75M-T Price | Contact us |
