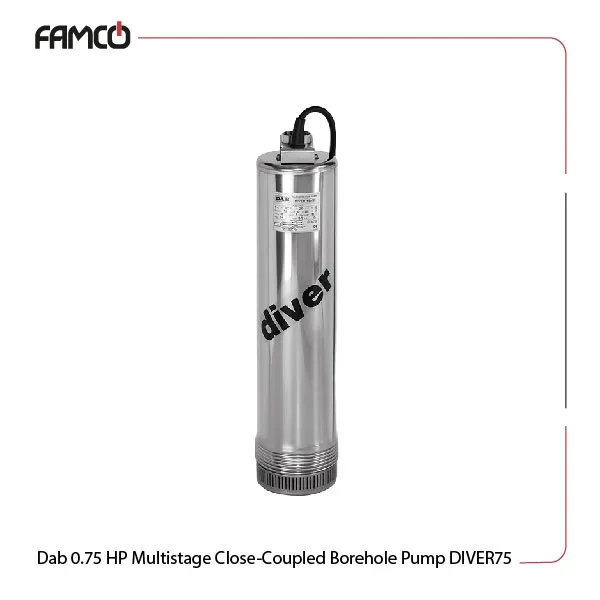

Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Specifications
This product is a powerful pump in a range of applications. This Dab submersible pump operates at a power of 0.55 kW (0.75 HP) and to pump up water above 39 meters. Thanks to the powerful specifications, this pump is immersible up to 20 meters deep with a 4.8 m3/h maximum flow rate. It features a powerful motor protection class of IP 68 to reach durability and reliability in challenging environments. The motor is rated F for thermal protection which is safe for continuous use. Installation is straightforward, as it can be placed in wells, tanks, and cisterns in a vertical position. It supports both single-phase (230 V / 50 Hz) and three-phase (400 V / 50 Hz) standard voltages. The lip seal is made of NBR 70, while the diffuser and impeller are crafted from technopolymer for added protection. This pump comes in with two poles and a shaft with a rotor made from AISI 304 stainless steel that are resistant to corrosion to an acceptable degree.
| Specification | Value | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| H (m) | 9-39 | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| No. of poles | 2 | |
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Materials
- Lip seal: NBR 70
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 STAINLESS STEEL X5CrNi1810 UNI 10088-3
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 10 |
| 127 | 427 | |
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Technical Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 39 | 35 | 33 | 30 | 26 | 22 | 18 | 14 | 9 |

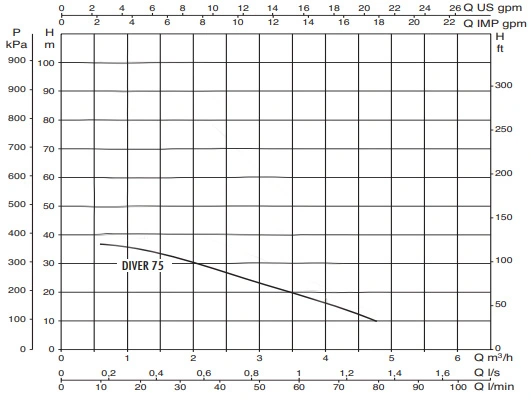

Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Performance Curve
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Applications
- Water extraction from wells
- Irrigation systems for agriculture
- Water supply for residential buildings
- Liquid management in industrial tanks
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile installation options
- Excellent thermal protection for safe operation
Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Price List
| No. | Name | Price |
| 1 | Dab 0.75 HP Multistage Close-Coupled Borehole Pump DIVER75 Price | Contact us |
