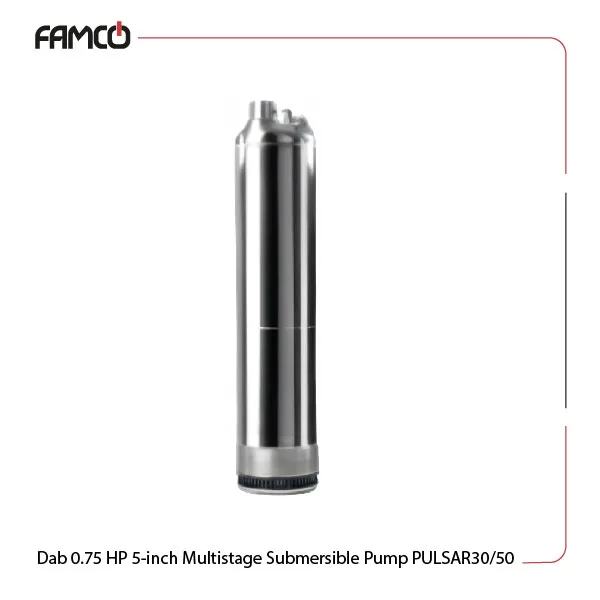

Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Specifications
This product operates on a voltage of either single-phase 220/240 V or three-phase 400 V for various setups. This Dab multistage submersible pump functions at a frequency of 50 Hz and presents users with a high protection class of IP68 to tolerate challenging environments. The insulation class in this product is rated F, which contributes to its reliability. An optional automatic operation feature with a float switch is available for the single-phase version for added convenience. The impeller is made from Technopolymer to generate better results. The seal lubrication fluid used is ESSO MARCOL 172 OIL for a smooth operation. The mechanical seals are tested and tried in application, with the upper seal made of NBR/Ceramic/Carbon and the lower seal composed of NBR/Silicon/Carbon. The power output is 0.55 kW (0.75 HP), and it can achieve a height of 13.5 to 42 meters. Weighing in at 17.3 kg, this product is designed for efficiency and effectiveness.
| Specification | Value | |
| Voltage (V) | single-phase | 220/240 V |
| three-phase | 400 V | |
| Frequency (Hz) | 50 | |
| Protection class | IP68 | |
| Insulation class | F | |
| Head (m) | 13.5-42 | |
| Max. flow rate (m3/h) | 4.8 | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 13.5-42 | |
Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Materials
- Impeller: Technopolymer
- Seal lubrication fluid: ESSO MARCOL 172 OIL
- Complete upper mechanical seal: NBR/Ceramic/Carbon
- Complete lower mechanical seal: NBR/Silicon/Carbon

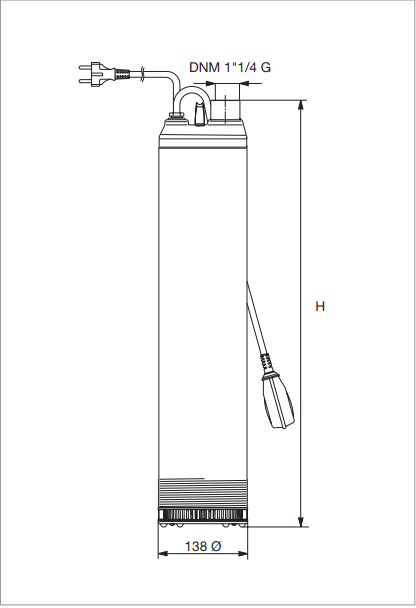

Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 17.3 |
| 562 |
Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Technical Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 |
| l/min | 0 | 20 | 40 | 60 | 80 |
| H (m) | 42 | 38.2 | 33.8 | 24.8 | 13.5 |

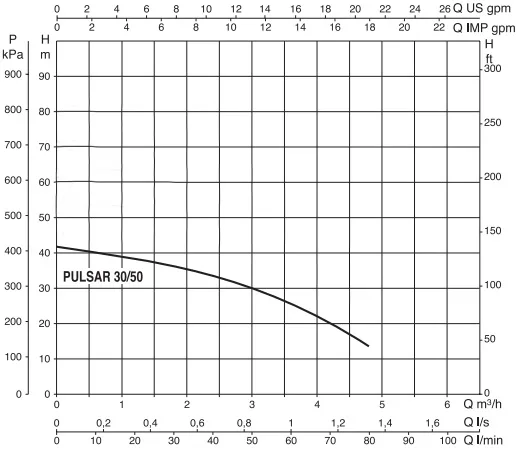

Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Performance Curve
Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Applications
- Water drainage in residential areas
- Irrigation systems for agriculture
- Industrial water management
- Flood control and prevention
Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Benefits
- High durability with IP68 protection
- Versatile voltage options for different setups
- Efficient power consumption
- Optional automatic operation for ease of use
Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Price List
| No. | Name | Price |
| 1 | Dab 0.75 HP 5-inch Multistage Submersible Pump PULSAR30/50 Price | Contact us |
There are no reviews yet.
