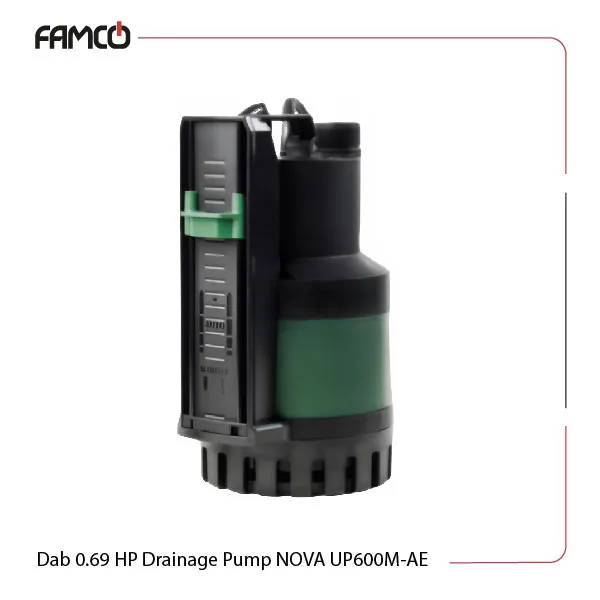

Dab 0.69 HP Drainage Pump NOVA UP600M-AE Specifications
This pump is designed for domestic use, handling dirty water without fibers. This Dab pump operates efficiently within a liquid temperature range of 0 °C to +35 °C. The minimum draught depth varies between models, with the NOVA UP 600M-AE needing 70 mm for an optimal performance. These specs are considerable in draianage pumps. These Dab products can be immersed up to 7 meters deep and installed vertically, fixed, or used in the portable node. This pump features a sturdy construction with a body, cover, and impeller made from technopolymer to reach maximum durability. The motor case is crafted from AISI 304 stainless steel, while the motor shaft is made from AISI 416 stainless steel. This durable submersible pump operates at a power of 0.52 kW (0.69 HP) and requires a voltage of 220-240 V with a frequency of 50 Hz. The head range is between 0.3 to 9.8 meters.
| Specification | Value | |
| Liquid temperature range | from 0 °C to +35 °C for domestic use | |
| Pumped liquid | dirty water without fibers | |
| Minimum draught depth | NOVA UP 300 M-AE | 60 mm |
| NOVA UP 600 M-AE | 70 mm | |
| Max. immersion depth | 7 meters | |
| Protection class | IP 68 | |
| Insulation class | F | |
| Power (kW) | 0.52 | |
| Power (HP) | 0.69 | |
| Voltage (V) | 220-240 | |
| Frequency (Hz) | 50 | |
| Head (m) | 0.3-9.8 | |
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Materials
- Pump body: technopolymer
- Cover: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 STAINLESS STEEL X5 CrNi 1810 – UNI 6900/71
- Motor shaft: AISI 416 STAINLESS STEEL UNI EN 10088-1 X12CRS13
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Dimension and Weight
| Dimensions (mm) | Weight (kg) | |
| L1 | L2 | |
| 324 | 111.6 | 7.3 |
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Technical Data
| Q= m3 /h | 0 | 1 | 2 | 3 | 4.5 | 5 | 6 | 7 | 7.5 | 9 | 10 | 12 | 13.5 |
| Q=l/min | 0 | 16.6 | 33.3 | 50 | 75 | 83.3 | 100 | 116.6 | 125 | 150 | 166.6 | 200 | 225 |
| H (m) | 9.8 | 9.4 | 9 | 8.5 | 7.7 | 7.4 | 6.8 | 6.2 | 5.9 | 4.7 | 3.9 | 2 | 0.3 |

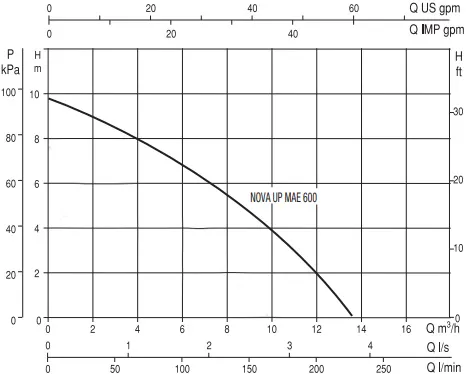

Dab 0.69 HP Drainage Pump NOVA UP600M-AE Performance Curve
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Applications
- Draining flooded basements
- Emptying swimming pools
- Managing water in construction sites
- Irrigation systems for gardens
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Benefits
- Durable technopolymer construction
- Versatile installation options
- Efficient operation in dirty water
- High immersion depth capability
Dab 0.69 HP Drainage Pump NOVA UP600M-AE Price List
| No. | Name | Price |
| 1 | Dab 0.69 HP Drainage Pump NOVA UP600M-AE Price | Contact us |
