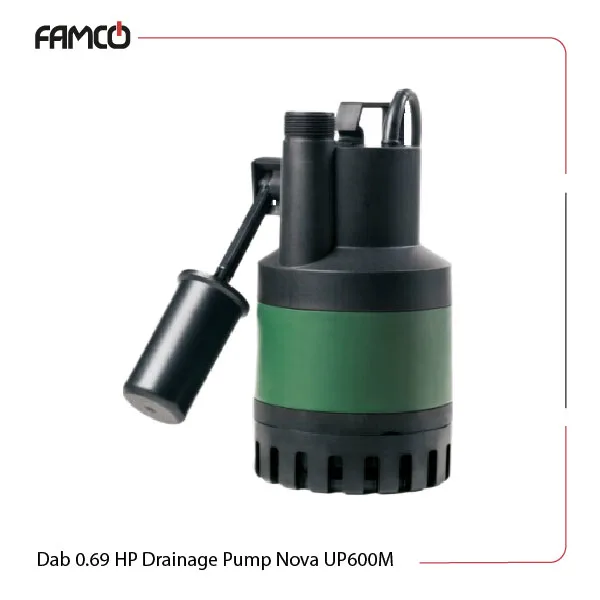

Dab 0.69 HP Drainage Pump Nova UP600M Specifications
This perfect pump for domestic use handles dirty water without fibres. It also operates efficiently within a liquid temperature ranging from 0 °C to +35 °C. The minimum draught depth varies between models of this same product, with the NOVA UP 600M-A at 165 mm and the NOVA UP 600M-NA at 70 mm. This Dab submersible pump is made in a way so that it can be immersed up to 7 metres deep which is a must for various setups. Installation options include vertical, fixed, or portable setups. This Dab drainage pump has a high protection class of IP 68 and to maximize durability and safety it comes in with a insulation class of F. The impeller and pump body are made from a lightweight and sturdy material called technopolymer.
In addition, the motor case and shaft of these drainage pumps are constructed from high-quality stainless steel for added strength against corrosive elements. Technical data include the pump’s output of 0.52 kW (0.69 HP) operating on 240V at 50Hz frequency, to achieve a head of 0.3 to 9.8 metres.
| Specification | Value | |
| Liquid temperature range | from 0 °C to +35 °C for domestic use | |
| Pumped liquid | dirty water without fibres | |
| Minimum draught depth | NOVA UP 600 M-A | 165 mm |
| NOVA UP 600 M-NA | 70 mm | |
| Max. immersion depth | 7 metres | |
| Installation | vertical, fixed or portable | |
| Protection class | IP 68 | |
| Insulation class | F | |
| Power (kW) | 0.52 | |
| Power (HP) | 0.69 | |
| Voltage (V) | 400 | |
| Frequency (Hz) | 50 | |
| Head (m) | 0.3-9.8 | |
Dab 0.69 HP Drainage Pump Nova UP600M Materials
- Impeller: technopolymer
- Body: technopolymer
- Motor case: AISI 304 STAINLESS STEEL X5 CrNi 1810 – UNI 6900/71
- Motor shaft: AISI 416 STAINLESS STEEL UNI EN 10088-1 X12CRS13
Dab 0.69 HP Drainage Pump Nova UP600M Dimension and Weight
| Dimensions (mm) | Weight (kg) | ||
| Model | L1 | L2 | |
| NOVA UP 600 M-A | 332 | 111.6 | 7.3 |
| NOVA UP 600 M-NA | 332 | 75.9 | 7.1 |

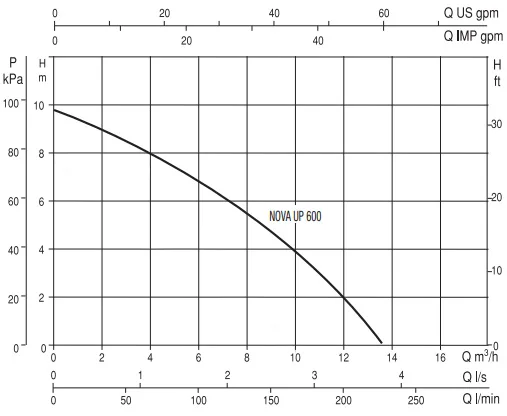

Dab 0.69 HP Drainage Pump Nova UP600M Performance Data
| Q= m3 /h | 0 | 1 | 2 | 3 | 4.5 | 5 | 6 | 7 | 7.5 | 9 | 10 | 12 | 13.5 |
| Q=l/min | 0 | 16.6 | 33.3 | 50 | 75 | 83.3 | 100 | 116.6 | 125 | 150 | 166.6 | 200 | 225 |
| H (m) | 9.8 | 9.4 | 9 | 8.5 | 7.7 | 7.4 | 6.8 | 6.2 | 5.9 | 4.7 | 3.9 | 2 | 0.3 |
Dab 0.69 HP Drainage Pump Nova UP600M Applications
- Draining flooded basements or yards
- Water management in gardens and landscaping
- Emptying pools or large containers
- Pumping dirty water from construction sites
Dab 0.69 HP Drainage Pump Nova UP600M Benefits
- Durable construction with stainless steel and technopolymer
- Versatile installation options for different needs
- High protection class ensures safety in wet environments
- Efficient performance with a good power-to-weight ratio
Dab 0.69 HP Drainage Pump Nova UP600M Price List
| No. | Name | Price |
| 1 | Dab 0.69 HP Drainage Pump Nova UP600M Price | Contact us |
