Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Specifications
Dab 0.5HP submersible multi-impeller pump DIVERTRON 650 is designed to transfer clean liquids that are free from solids or abrasives. It operates effectively within a temperature range of 0°C to +40°C. The maximum operation depth is 12 meters, with a maximum immersion depth of 15 meters. This Dab pump has a maximum diameter of 160 mm; suitable for various applications. The impeller and body in this pump are made from durable technopolymer and stainless steel AISI 304 to reach top-level longevity and reliability. The motor shaft is constructed from stainless steel AISI 416 that provides additional strength. Dab 0.5HP submersible multi-impeller pump DIVERTRON 650’s power output of 0.42 kW (0.56 HP) and a head range of 8.2 to 29.6 meters has added to the product’s efficiency and versatility. It can be installed in either a fixed or movable vertical position, and it has a protection class of IP 68 which is suitable for submerged applications. The motor insulation class of this product is F for a safe and solid operation under various conditions.
| Specification | Value |
| Maximum Operation Depth | 12 m |
| Liquid Temperature Range | from 0°C to +40°C |
| Maximum Immersion Depth | 15 m |
| Pump Maximum Diameter | 160 mm |
| Protection Class | IP 68 |
| Motor Insulation Class | F |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Power (kW) | 0.42 |
| Power (HP) | 0.56 |
| Head (m) | 8.2-29.6 |
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Materials
- Impeller Material: technopolymer/ SS AISI 304
- Shaft: SS AISI 304
- Motor Shaft: stainless steel AISI 416 + AISI 304
- Pump Body: technopolymer
- Diffuser: technopolymer
- Handle: technopolymer
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Weight and Dimensions

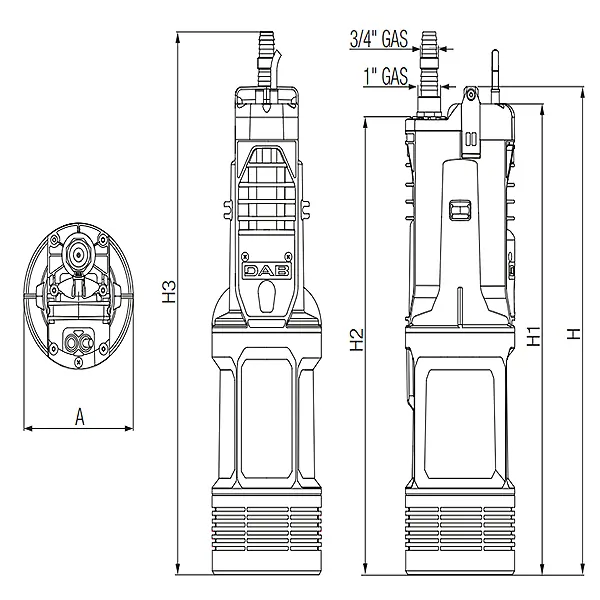

The figure below shows the dimensions of Dab 0.5HP submersible multi-impeller pump DIVERTRON 650:
In addition the picture below shows the dimesnions of Dab 0.5HP submersible multi-impeller pump DIVERTRON X 650:
| Dimensions (mm) | Weight (kg) | |||||||
| Diverton 650 | A | B | C | H | H1 | H2 | H3 | 9.5 |
| Ø 160 | – | – | 488 | 469 | 455 | 548 | ||
| Diverton X 650 | Ø 160 | 186 | 33 | 488 | 469 | 455 | 548 | |
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Technical Data
| M3/h | 0 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 29.6 | 26.8 | 24.7 | 22.2 | 19.8 | 16.4 | 12.5 | 8.2 |

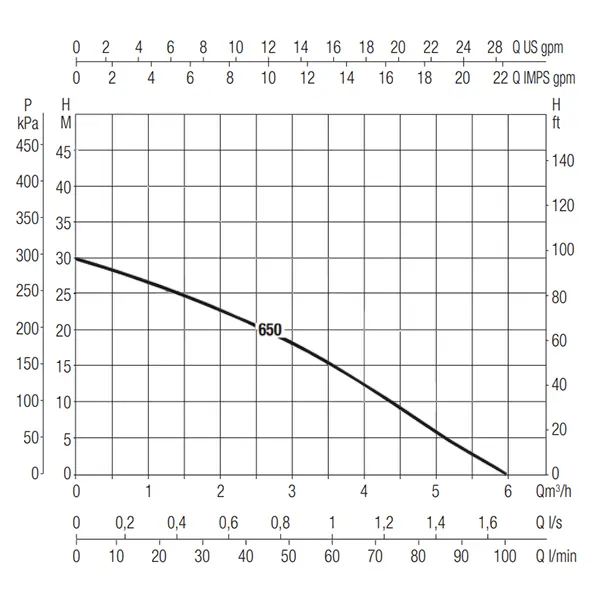

Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Performance Curve
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Aquarium and pond water circulation
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Benefits
- Durable construction with corrosion-resistant materials
- Efficient operation with low power consumption
- Versatile installation options for various needs
- High protection class for reliable submerged use
Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Price List
| No. | Name | Price |
| 1 | Dab 0.5HP Submersible Multi-impeller Pump DIVERTRON 650 Price | Contact us |
