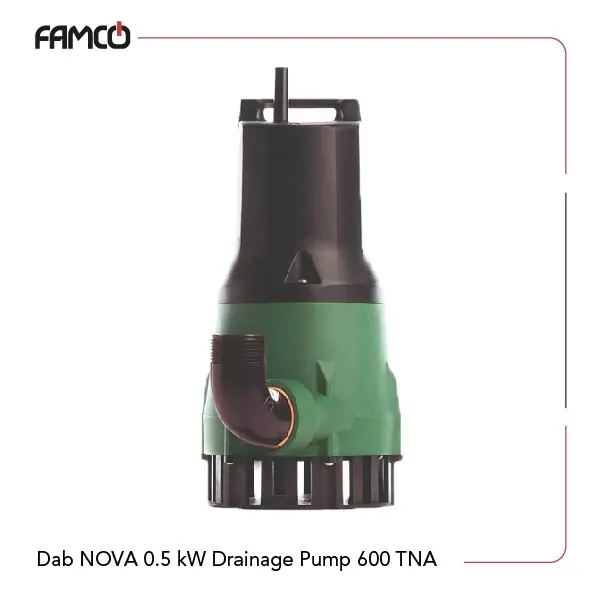

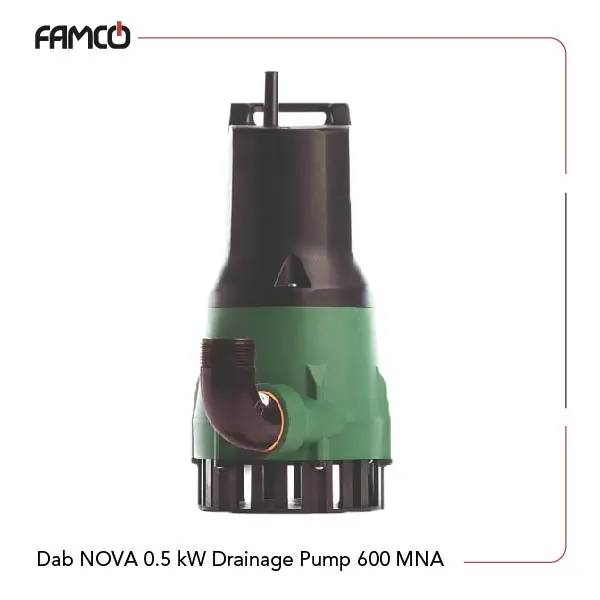

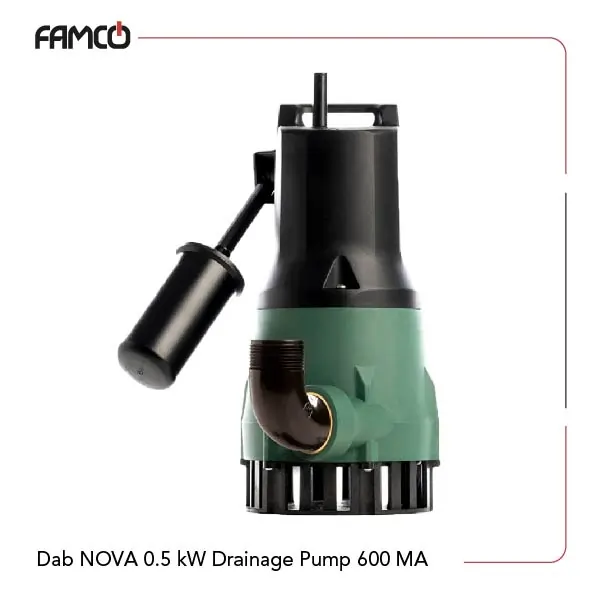

Dab 0.7 HP Drainage Pump NOVA 600 Specifications
Dab 0.7 HP drainage pump NOVA 600 is designed for clear water or rainwater, and operates efficiently within a temperature range of +0°C to +35°C for domestic use and up to +50°C for other applications. This Dab drainage pump has an IP 68 protection class for increased durability in wet conditions. The product’s motor is not neglected and is insulated with class F materials. The impeller is made from technopolymer to offer seamless performance.
This pump can be powered by either a single-phase input of 230V or a three-phase input of 400V at 50Hz catering to different setups. Installation options include both fixed and portable setups as long as it is in a vertical position. The motor and pump body are constructed from AISI 304 stainless steel and technopolymer, respectively, giving it longevity and resistance to corrosion. With everything considered, this pump is suitable for various applications that rely heavily on efficient water movement.
| Specification | Value | |
| Type of pumped liquid | clear water or rainwater | |
| Supported liquid temperature min. and max. | for domestic use | +0°C – +35°C |
| other use | +0°C – +50° | |
| Class of protection | IP 68 | |
| Motor insulation class | F | |
| Head (m) | 3.5-10.4 | |
| Power (kW) | 0.7 | |
| Power (HP) | 0.5 | |
| Voltage (V) | Single phase power input | 230 |
| Three phase power input | 400 | |
| Frequency (Hz) | 50 | |
Dab 0.7 HP Drainage Pump NOVA 600 Materials
- Motor: AISI 304 stainless steel
- Shaft: AISI 431 steel
- Pump body: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 stainless steel X5 CrNi1810 – UNI 6900/71
- Rotor shaft: AISI 431 stainless steel
Dab 0.7 HP Drainage Pump NOVA 600 Weight and Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| A | B | C | D | E | H | H1 | H2 | 7 |
| 189 | 255 | 56 | 296 | 174 | 329 | 443 | 71 | |
Dab 0.7 HP Drainage Pump NOVA 600 Technical Data
| M3/h | 0 | 3 | 6 | 9 | 12 | 15 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 |
| H (m) | 10.4 | 9 | 7.8 | 6.7 | 5.3 | 3.5 |

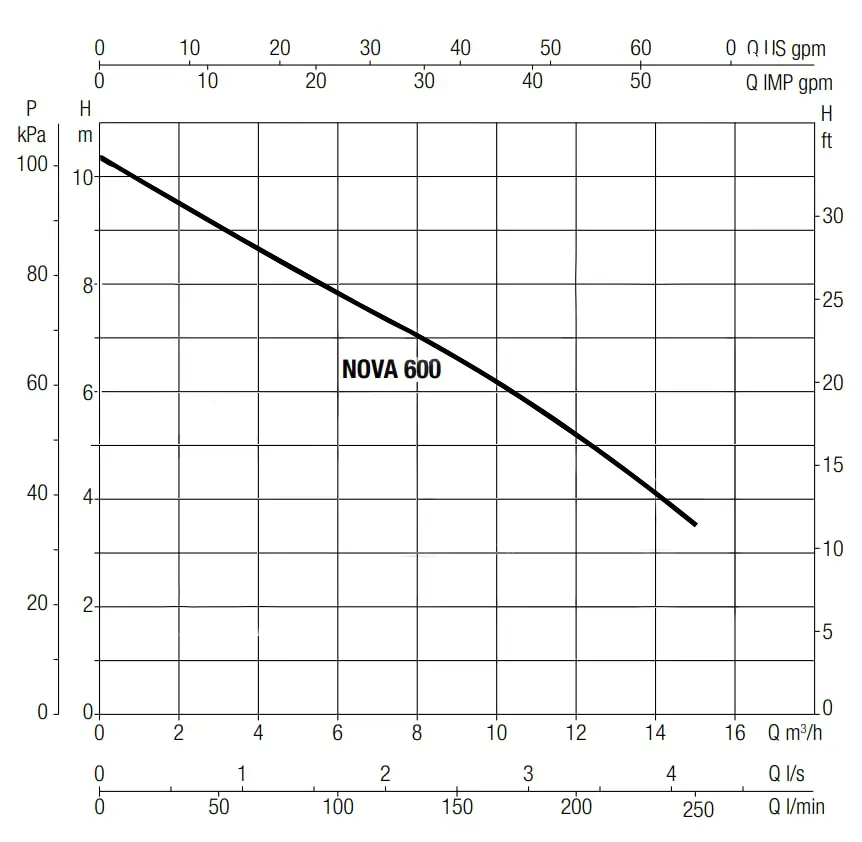

Dab 0.7 HP Drainage Pump NOVA 600 Performance Curve
Dab 0.7 HP Drainage Pump NOVA 600 Applications
- Domestic water supply systems
- Rainwater harvesting systems
- Irrigation systems for gardens and farms
- Industrial water transfer and drainage
Dab 0.7 HP Drainage Pump NOVA 600 Benefits
- Durable construction with stainless steel and technopolymer
- Versatile temperature range for different applications
- IP 68 rating for reliable performance in wet conditions
- Flexible installation options for various setups
Dab 0.7 HP Drainage Pump NOVA 600 Price List
| No. | Name | Price |
| 1 | Dab 0.7 HP Drainage Pump NOVA 600 Price | Contact us |
