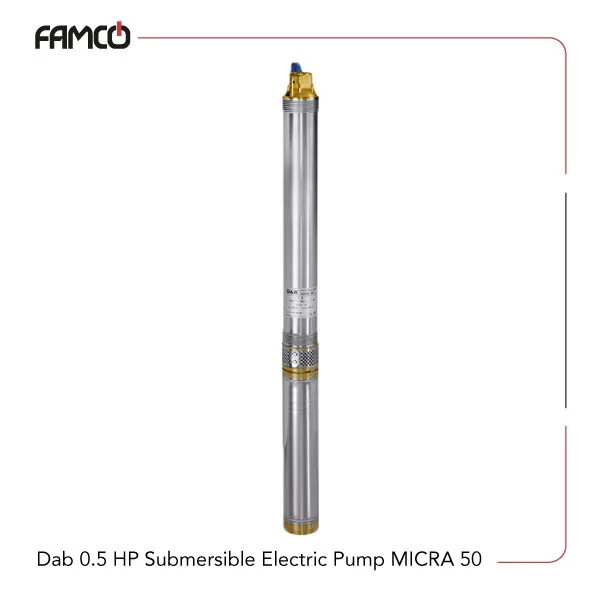

Dab 0.5 HP Submersible Electric Pump MICRA 50 M

Dab 0.5 HP Submersible Pump MICRA 50

0.37 kW (0.5 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

Overview of Dab 0.5 HP Submersible Pump MICRA 50

Dab submersible pump MICRA 50 delivers 0.5 HP of power, which corresponds to 0.37 kW. It can handle a maximum flow rate of 2.7 m³/h, or 45 liters per minute, providing steady movement of water in limited spaces. Its modest size and output make it a practical choice for applications where controlled flow and consistent operation are important, offering a simple yet effective solution for light-duty submersible pumping needs.

Dab 0.5 HP Submersible Pump MICRA 50 Specifications

This product features a power output of 0.5 HP (0.37 kW), making it suitable for various pumping tasks. It can handle a maximum flow rate of 2.7 cubic meters per hour, which is equivalent to 45 liters per minute. The maximum head, or height it can lift water, is 45 meters. This Dab submersible pump operates efficiently within a liquid temperature range from 0°C to 35°C, ensuring versatility in different environments. The pump is designed to tolerate up to 40 grams of sand per cubic meter of water, making it durable for use with slightly contaminated liquids. The discharge port has a diameter of 1 inch GAS, compatible with standard fittings. Power supply variations are acceptable within a tolerance of +6% to -10%, providing flexibility in power sources. The pump can start up to 20 times per hour, suitable for applications requiring frequent operation without overheating or damage.

Specification	Value
Power (HP)	0.5
Power (kW)	0.37
Maximum flow rate (m3/h)	2.7
Maximum flow rate (l/min)	45
Maximum head (m)	45
Liquid temperature range	from 0 °C to +35 °C
Maximum permitted amount of sand	40 g/m3
Discharge port diameter	1″ GAS
Power supply tolerance	+6 % / -10 %
Max. starts	20/h

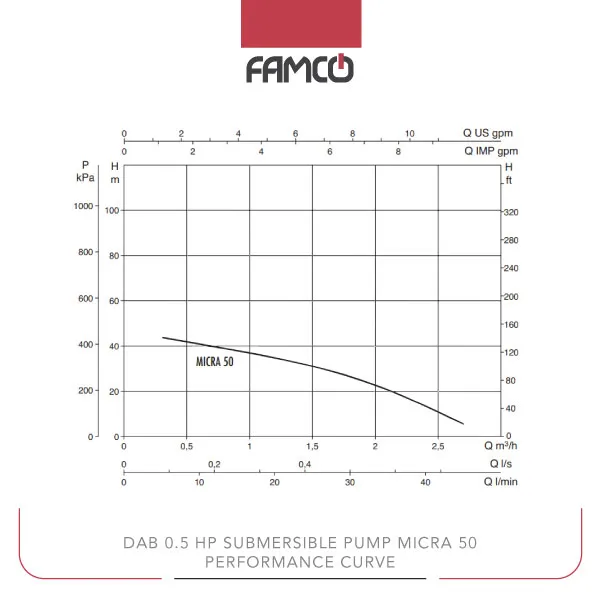

Dab 0.5 HP Submersible Pump MICRA 50 Performance Data

Q (m3/h)	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q (l/min)	5	10	15	20	25	30	35	40	45
H (m)	45	41	38	35	31	27	21	14	6

Dab 0.5 HP Submersible Pump MICRA 50 Applications

Irrigation systems in agriculture
Water circulation in pools and fountains
Drainage and dewatering tasks
Supplying water in residential or industrial settings

Dab 0.5 HP Submersible Pump MICRA 50 Benefits

High efficiency with a maximum flow rate of 2.7 m3/h
Durable design tolerates up to 40 g/m3 of sand
Flexible operation with a tolerance of +6% / -10% in power supply
Compact size suitable for various installation environments

Dab 0.5 HP Submersible Pump MICRA 50 Price List

No.	Name	Price
1	Dab 0.5 HP Submersible Pump MICRA 50 Price	Contact us

Brand	Dab
Power (kW)	0.37
Power (HP)	0.5
Maximum Flow Rate (L/min)	45
Maximum Flow Rate (m3/h)	2.7
Maximum Delivery Head (m)	45
Maximum Liquid Temperature (°C)	35
