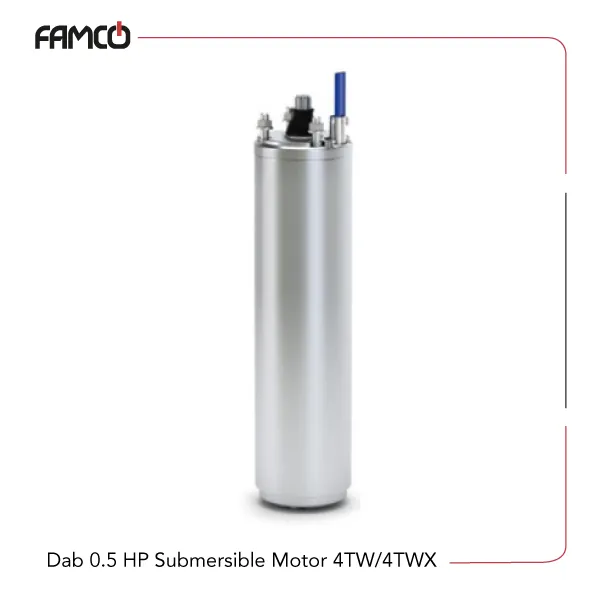

Dab 0.5 HP Submersible Motor 4TW/4TWX Specifications
This product features an insulation class of F, ensuring high thermal endurance. It has a protection class of IP68, making it suitable for underwater and harsh environments. The cooling system maintains a minimum flow speed of 0.3 meters per second at 35 degrees Celsius, which helps prevent overheating during operation. The device can tolerate power supply variations of +6% to -10%, providing stable performance despite fluctuating power sources. It is capable of starting up to 20 times per hour, making it reliable for frequent use. The maximum operating depth is 300 meters, ideal for deep-sea applications. It has a two-pole configuration and operates at a frequency of 50 Hz. The motor runs at 2820 revolutions per minute, with a power output of 0.37 kilowatts or 0.5 horsepower. The weight varies slightly between models, with 4TW weighing 7.4 kg and 4WX weighing 7.9 kg. This Dab motor pump is designed for single-phase power supply at 230 volts, suitable for various industrial and underwater tasks.
| Specification | Value |
| Insulation class | F |
| Pump body diamter (inches) | 4 |
| Protection class | IP68 |
| Cooling flow speed | min. 0.3 m/s at 35 °C |
| Power supply tolerance | +6% / -10% |
| Max. starts | 20 per hour |
| Max operating depth | 300 meters |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Weight (kg) | 4TW: 7.4, 4WX: 7.9 |
| Phase | single-phase |
| Speed | 2820 rpm |
| Power | 0.37 kW |
| Power (HP) | 0.5 HP |
| Voltage | 230 V |
Dab 0.5 HP Submersible Motor 4TW/4TWX Applications
- Underwater pumping systems
- Deep-sea exploration equipment
- Industrial water circulation
- Harsh environment machinery
Dab 0.5 HP Submersible Motor 4TW/4TWX Benefits
- High durability in extreme conditions
- Reliable performance with power fluctuation tolerance
- Suitable for deep-sea applications up to 300 meters
- Efficient cooling system prevents overheating
Dab 0.5 HP Submersible Motor 4TW/4TWX Price List
| No. | Name | Price |
| 1 | Dab 0.5 HP Submersible Motor 4TW/4TWX Price | Contact us |
