Dab 0.3 HP Drainage Pump NOVA 180 Specifications

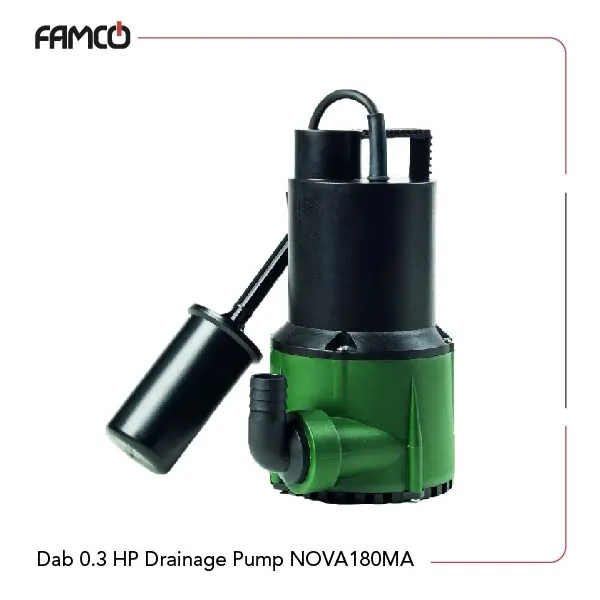

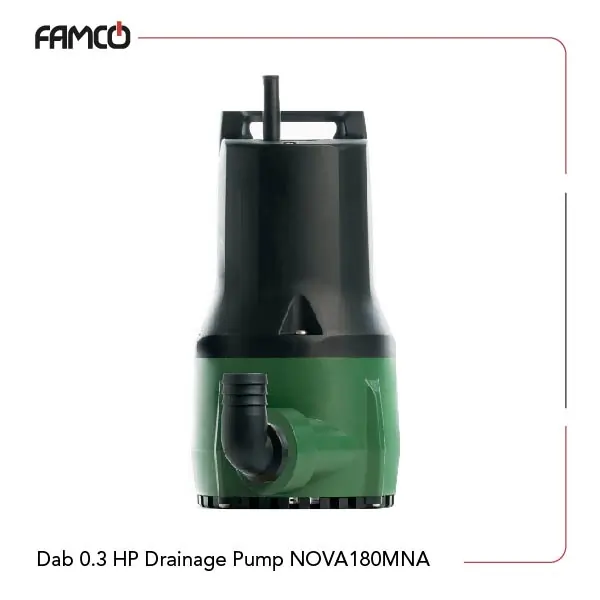

Dab 0.3 HP drainage pump NOVA 180 is suitable for various applications in both industrial and domestic fields.. It can handle clear water or rainwater, with a temperature ranging from +0°C to +35°C for domestic use and up to +50°C for other applications. This Dab drainage pump features an IP 68 protection class, to reach maximum durability and reliability in wet conditions. The motor insulation class in this product is rated F that presents users with additional safety. As you can see in the pictures below, this pump is provided in two versions; automatic drainage pump with float (180 MA) and non-automatic without float (180MNA).
The impeller is made from technopolymer, which is lightweight and sturdy. It operates on a single-phase power input of 230V at 50Hz which is standard. Installation of this product is relatively easy in two modes, fixed or portable, to allow for flexibility in use. The motor and motor case are constructed from AISI 304 stainless steel, while the shaft and rotor shaft are made from AISI 431 stainless steel, to increase strength and longevity. The pump’s body and impeller are also made from technopolymer, creating an overall lightweight design. This pump reportedly reaches a head range of 3.2 to 5 meters with a power output of 0.2 kW (0.3 HP) for a consistent and flawless performance.
| Specification | Value | |
| Maximum immersion depth | 7 m | |
| Supported liquid temperature min. and max. | domestic use | +0°C – +35°C |
| other use | +0°C – +50° | |
| Class of protection | IP 68 | |
| Motor insulation class | F | |
| Voltage (V) | 230 | |
| Frequency (Hz) | 50 | |
| Head (m) | 3.2-5 | |
| Power (kW) | 0.2 | |
| Power (HP) | 0.3 | |
Dab 0.3 HP Drainage Pump NOVA 180 Materials
- Motor: AISI 304 stainless steel
- Shaft: AISI 431 steel
- Pump body: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 stainless steel X5 CrNi1810 – UNI 6900/71
- Rotor shaft: AISI 431 stainless steel
Dab 0.3 HP Drainage Pump NOVA 180 Weight and Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| A | B | C | D | E | H | H1 | H2 | 4.6 |
| 180 | 247 | 46 | 296 | 158 | 268 | 345 | 38 | |
Dab 0.3 HP Drainage Pump NOVA 180 Technical Data
| M3/h | 0 | 3 |
| l/min | 0 | 50 |
| H (m) | 7.1 | 3.2 |

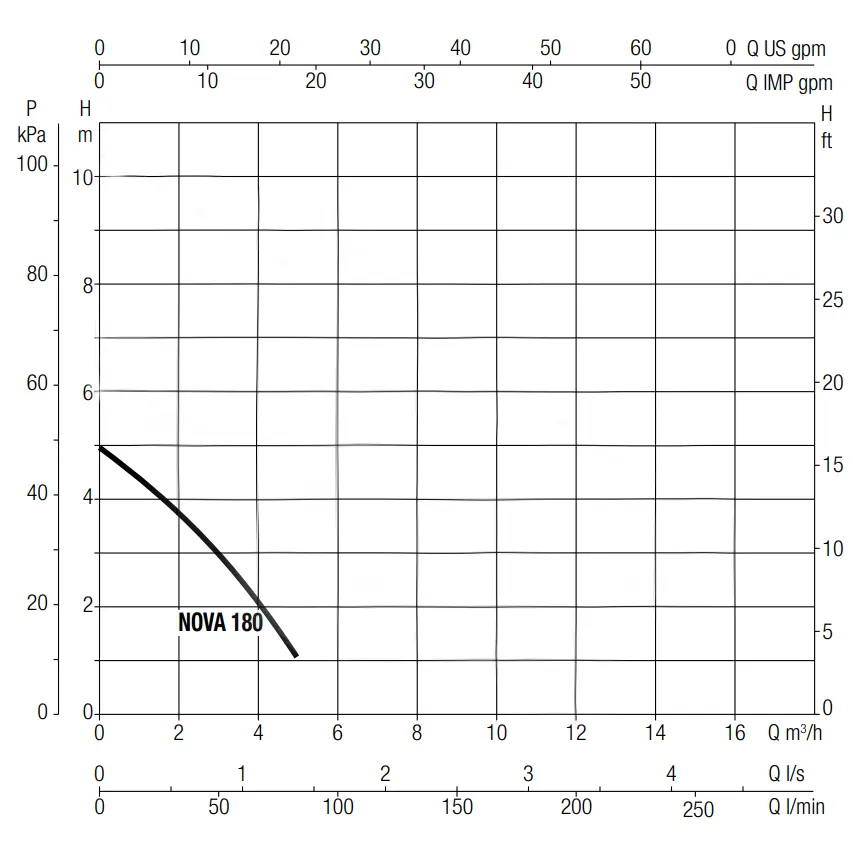

Dab 0.3 HP Drainage Pump NOVA 180 Performance Curve
Dab 0.3 HP Drainage Pump NOVA 180 Applications
- Irrigation systems for gardens and farms
- Drainage of flooded areas
- Water transfer for domestic use
- Rainwater harvesting systems
Dab 0.3 HP Drainage Pump NOVA 180 Benefits
- Durable construction with stainless steel and technopolymer materials
- Flexible installation options for various needs
- Efficient performance with low power consumption
- Suitable for a wide range of temperatures and applications
Dab 0.3 HP Drainage Pump NOVA 180 Price List
| No. | Name | Price |
| 1 | Dab 0.3 HP Drainage Pump NOVA 180 Price | Contact us |
