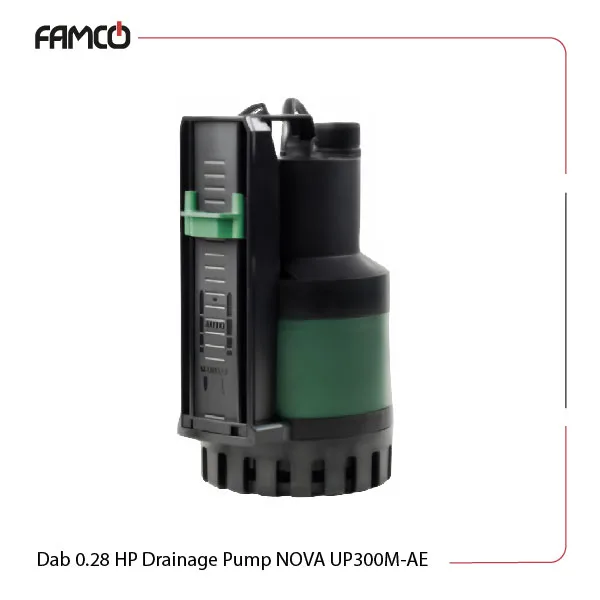

Dab 0.28 HP Drainage Pump NOVA UP300M-AE Specifications
First and foremost, this pump is designed for domestic use and takes care of dirty water drainage as long as they are free of fiber particles. This Dab submersible pump operates efficiently within a liquid temperature range of 0 °C to +35 °C. For ease of use, it could be installed vertically, fixed, or portable. This product’s a maximum immersion depth of 7 meters is suitable for deeper installations. The minimum draught depth varies between models, with the NOVA UP 300 M-AE requiring 60 mm and the NOVA UP 600 M-AE needing 70 mm. This sturdy pump features a solid build due to the materials used in its make. Its body, cover, and impeller are made from technopolymer to increase longevity, which is essential in drainage pumps with this much power.
The motor case is crafted from AISI 304 stainless steel, while the motor shaft is made from AISI 416 stainless steel, both durable versions of the same material. To top it off, it operates at a power of 0.21 kW (0.28 HP) and requires a voltage of 220-240 V with a frequency of 50 Hz. This product achieves pumping liquids up to a head of 1 to 7.6 meters, making it effective for various pumping tasks.
| Specification | Value | |
| Liquid temperature range | from 0 °C to +35 °C for domestic use | |
| Pumped liquid | dirty water without fibres | |
| Minimum draught depth | NOVA UP 300 M-AE | 60 mm |
| NOVA UP 600 M-AE | 70 mm | |
| Max. immersion depth | 7 metres | |
| Protection class | IP 68 | |
| Insulation class | F | |
| Power (kW) | 0.21 | |
| Power (HP) | 0.28 | |
| Voltage (V) | 220-240 | |
| Frequency (Hz) | 50 | |
| Head (m) | 1-7.6 | |
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Materials
- Pump body: technopolymer
- Cover: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 STAINLESS STEEL X5 CrNi 1810 – UNI 6900/71
- Motor shaft: AISI 416 STAINLESS STEEL UNI EN 10088-1 X12CRS13
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Dimension and Weight
| Dimensions (mm) | Weight (kg) | |
| L1 | L2 | |
| 296.2 | 75.9 | 5.8 |
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Technical Data
| Q= m3 /h | 0 | 1 | 2 | 3 | 4.5 | 5 | 6 | 7 | 7.5 | 9 |
| Q=l/min | 0 | 16.6 | 33.3 | 50 | 75 | 83.3 | 100 | 116.6 | 125 | 150 |
| H (m) | 7.6 | 6.9 | 6.25 | 5.6 | 4.7 | 4.4 | 3.6 | 2.8 | 2.3 | 1 |

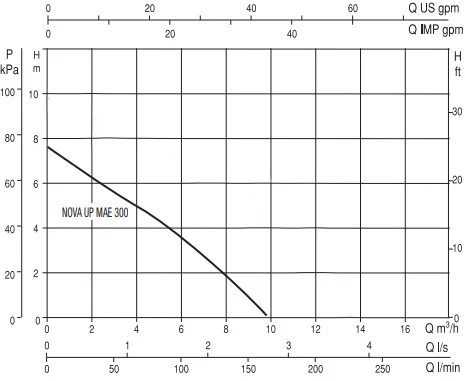

Dab 0.28 HP Drainage Pump NOVA UP300M-AE Performance Curve
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Applications
- Draining flooded basements or cellars
- Water management in gardens and yards
- Emptying pools or ponds
- Pumping out dirty water from construction sites
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Benefits
- Durable construction with technopolymer and stainless steel
- Versatile installation options for different needs
- Efficient operation within a wide temperature range
- High performance with a maximum head of 7.6 meters
Dab 0.28 HP Drainage Pump NOVA UP300M-AE Price List
| No. | Name | Price |
| 1 | Dab 0.28 HP Drainage Pump NOVA UP300M-AE Price | Contact us |
