Dab 0.28 HP Drainage Pump Nova UP 300M Specifications
Dab 0.2 kW drainage pump Nova UP 300M works well for domestic use, handling dirty water. This Dab pump operates efficiently within a liquid temperature range of 0 °C to +35 °C. These submersible pumps could be installed in various ways, including vertical, fixed, or portable setups. The minimum draught depths differ from 120 mm for the NOVA UP 300 M-A model and 60 mm for the NOVA UP 300 M-NA model (NA stands for non-automatic mode without a float).
This product’s maximum immersion depth is set at 7 meters; suitable for most applications. This pump features a sturdy construction with a technopolymer body and impeller to reach enhanced durability while being lightweight. The motor casing of this drainage pump is made from AISI 304 stainless steel, while the motor shaft is crafted from AISI 416 stainless steel for added strength. This durable pump operates at a power of 0.21 kW (0.28 HP) and requires a voltage of 240 V with a frequency of 50 Hz. The head range of the pushed-up liquid is between 1 to 7.6 meters to come up with a consistent device for different pumping needs.
| Specification | Value | |
| Liquid temperature range | from 0 °C to +35 °C for domestic use | |
| Minimum draught depth | NOVA UP 300 M-A | 120 mm |
| ‘NOVA UP 300 M-NA | 60 mm | |
| Max. immersion depth | 7 meters | |
| Protection class | IP 68 | |
| Insulation class | F | |
| Power (kW) | 0.21 | |
| Power (HP) | 0.28 | |
| Voltage (V) | 220-240 | |
| Frequency (Hz) | 50 | |
| Head (m) | 1-7.6 | |
Dab 0.28 HP Drainage Pump Nova UP 300M Materials
- Impeller: technopolymer
- Motor Body: technopolymer
- Motor case: AISI 304 STAINLESS STEEL X5 CrNi 1810 – UNI 6900/71
- Motor shaft: AISI 416 STAINLESS STEEL UNI EN 10088-1 X12CRS13
Dab 0.28 HP Drainage Pump Nova UP 300M Dimension and Weight
| Dimensions (mm) | Weight (kg) | ||
| Model | L1 | L2 | |
| NOVA UP 300 M-A | 296 | 75.9 | 5.8 |
| NOVA UP 300 M-NA | 296 | 111.6 | 5.6 |
Dab 0.28 HP Drainage Pump Nova UP 300M Technical Data
| Q= m3 /h | 0 | 1 | 2 | 3 | 4.5 | 5 | 6 | 7 | 7.5 | 9 |
| Q=l/min | 0 | 16.6 | 33.3 | 50 | 75 | 83.3 | 100 | 116.6 | 125 | 150 |
| H (m) | 7.6 | 6.9 | 6.25 | 5.6 | 4.7 | 4.4 | 3.6 | 2.8 | 2.3 | 1 |

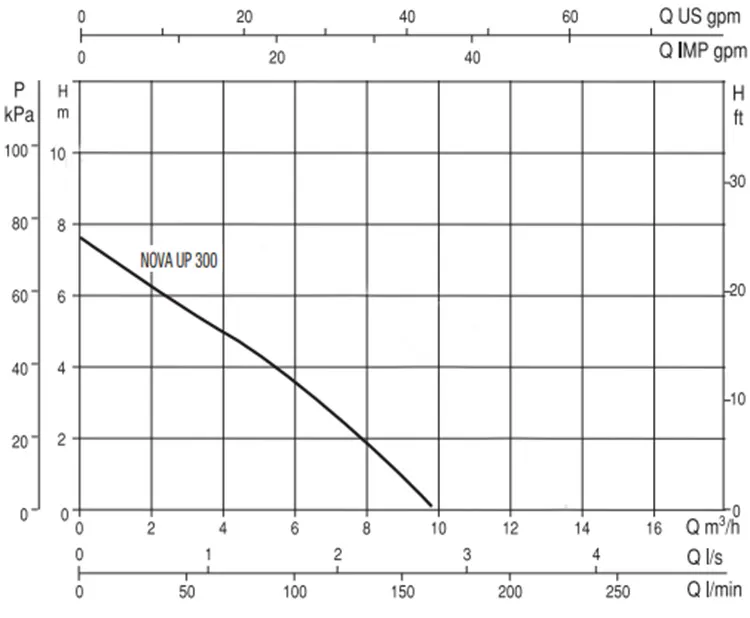

Dab 0.28 HP Drainage Pump Nova UP 300M Performance Curve
Dab 0.28 HP Drainage Pump Nova UP 300M Applications
- Draining flooded basements or garages
- Water management in gardens and landscaping
- Emptying pools or water features
- Pumping out dirty water from construction sites
Dab 0.28 HP Drainage Pump Nova UP 300M Benefits
- Durable construction with stainless steel and technopolymer materials
- Versatile installation options for different needs
- Efficient operation within a wide temperature range
- High immersion depth capability for various applications
Dab 0.28 HP Drainage Pump Nova UP 300M Price List
| No. | Name | Price |
| 1 | Dab 0.28 HP Drainage Pump Nova UP 300M Price | Contact us |
