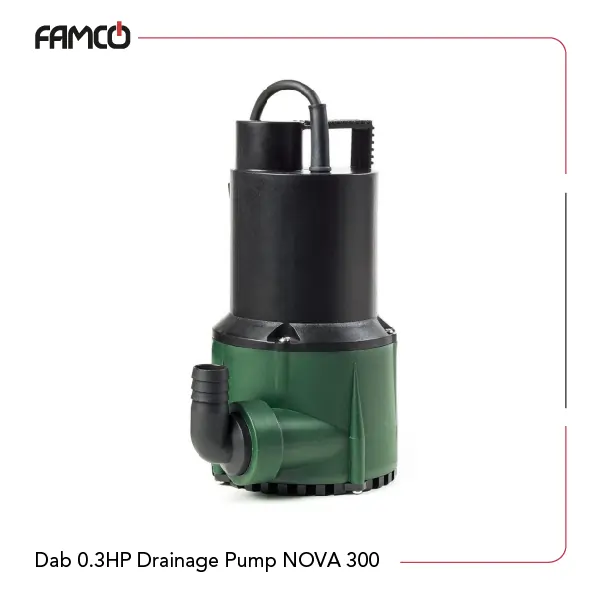

Dab 0.3HP Drainage Pump NOVA 300 Specifications
Dab 0.22 kW drainage pump NOVA 300 is designed to transfer clear water or rainwater. This Dab drainage pump caters to different sectors from homes to other needs. Reportedly, it operates efficiently within a temperature range of +0°C to +35°C for domestic applications and up to +50°C for other uses. It has an IP 68 protection class that safeguards the pump from dust and water ingress. This product has a built-in motor with a rated F insulation class to grants the pump with reliable performance.
The impeller is made from technopolymer, which contributes to its lightweight and sleek design. It can be powered by either a single-phase input of 230 V at 50 Hz or a three-phase input of 3×400 V at 50 Hz. The pump can be installed in a fixed or portable state depending on the available space. The motor and motor case are constructed from AISI 304 stainless steel, while the shaft and rotor shaft are made from AISI 431 stainless steel, that increase longevity and strength. The pump body and impeller are also made from technopolymer to amplify the product’s overall performance. This product’s head ranges between 2.2 to 7.2 meters with a power output of 0.22 kW (0.3 HP), to make it suitable for various applications.
| Specification | Value | |
| Type of pumped liquid | clear water or rainwater | |
| Supported liquid temperature min. and max. | domestic use | +0°C – +35°C |
| other use | +0°C – +50° | |
| Class of protection | IP 68 | |
| Motor insulation class | F | |
| Voltage (V) | 230 | |
| Frequency (Hz) | 50 | |
| Head (m) | 2.2-7.2 | |
| Power (kW) | 0.22 | |
| Power (HP) | 0.3 | |
| Voltage (V) | 230 | |
Dab 0.3HP Drainage Pump NOVA 300 Materials
- Motor: AISI 304 stainless steel
- Shaft: AISI 431 steel
- Pump body: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 stainless steel X5 CrNi1810 – UNI 6900/71
- Rotor shaft: AISI 431 stainless steel
- Impeller construction material(s): technopolymer
Dab 0.3HP Drainage Pump NOVA 300 Weight and Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| A | B | C | D | E | H | H1 | H2 | 4.6 |
| 180 | 247 | 46 | 296 | 158 | 277 | 354 | 47 | |
Dab 0.3HP Drainage Pump NOVA 300 Performance Data
| M3/h | 0 | 3 | 6 | 9 | 12 |
| l/min | 0 | 50 | 100 | 150 | 200 |
| H (m) | 7.2 | 5.8 | 4.6 | 3.4 | 2.2 |
Dab 0.3HP Drainage Pump NOVA 300 Applications
- Domestic water supply
- Rainwater harvesting systems
- Irrigation systems
- Water drainage in construction sites
Dab 0.3HP Drainage Pump NOVA 300 Benefits
- Durable construction with stainless steel components
- Versatile installation options for various needs
- Efficient operation with low power consumption
- High protection rating ensures reliability in harsh conditions
Dab 0.3HP Drainage Pump NOVA 300 Price List
| No. | Name | Price |
| 1 | Dab 0.3HP Drainage Pump NOVA 300 Price | Contact us |
