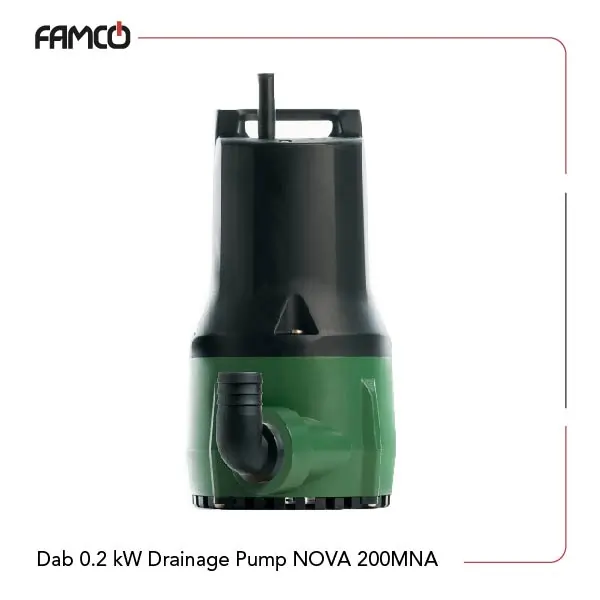

Dab 0.3HP Drainage Pump NOVA 200 Specifications
Dab 0.3 HP drainage pump NOVA 200 is designed for clear water or rainwater, while reaching a maximum immersion depth of 7 meters. This Dab drainage pump operates efficiently within a temperature range of +0°C to +35°C for domestic applications and up to +50°C for other uses.
This pump features an IP 68 protection class, to make sure it is dust-tight and withstands submersion in water. The motor insulation class in this pump is rated F to extend durability and reliability. The impeller built-in this product is made from technopoliymer, which enhances performance in the longer run. It can be powered by a single-phase input of 230V at 50Hz or a three-phase input of 3x400V at 50Hz. This installed unit can be either fixed or portable, depending on user needs. The motor and motor case are constructed from AISI 304 stainless steel, while the shaft and rotor shaft are made from AISI 431 stainless steel, to give it strength and resistance to corrosion. The pump body and impeller are also made from technopolymer, contributing to the overall efficiency and effectiveness of the pump.
| Specification | Value | |
| Maximum immersion depth | 7 m | |
| Type of pumped liquid | clear water or rainwater | |
| Supported liquid temperature min. and max. | domestic use | +0°C a – 35° |
| other use | +0°C – +50°C | |
| Class of protection | IP 68 | |
| Motor insulation class | F | |
| Voltage (V) | 230 | |
| Frequency (Hz) | 50 | |
| Head (m) | 1.5-7.1 | |
| Power (kW) | 0.22 | |
| Power (HP) | 0.3 | |
Dab 0.3HP Drainage Pump NOVA 200 Materials
- Motor: AISI 304 stainless steel
- Shaft: AISI 431 steel
- Pump body: technopolymer
- Impeller: technopolymer
- Motor case: AISI 304 stainless steel X5 CrNi1810 – UNI 6900/71
- Rotor shaft: AISI 431 stainless steel
Dab 0.3HP Drainage Pump NOVA 200 Weight and Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| A | B | C | D | E | H | H1 | H2 | 4.6 |
| 151 | – | 46 | – | 158 | 268 | – | 38 | |

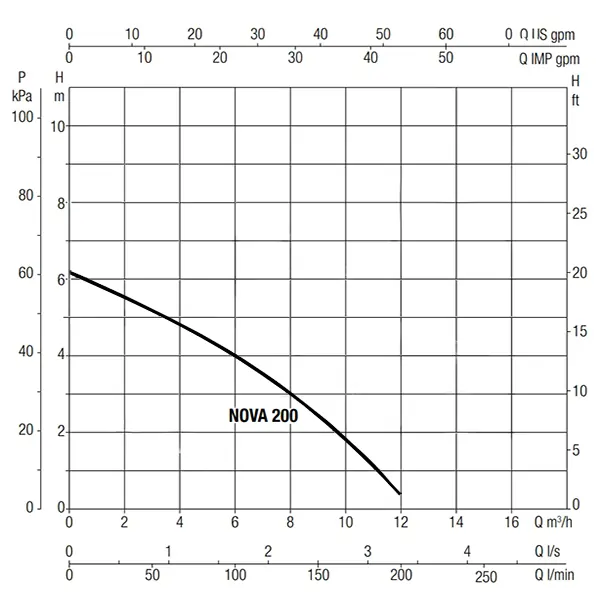

Dab 0.3HP Drainage Pump NOVA 200 Performance Data
| M3/h | 0 | 3 | 6 | 9 | 12 |
| l/min | 0 | 50 | 100 | 150 | 200 |
| H (m) | 7.1 | 5.6 | 4.2 | 2.8 | 1.5 |
Dab 0.3 HP Drainage Pump NOVA 200 Applications
- Irrigation systems for gardens and farms
- Water drainage in basements or flooded areas
- Rainwater harvesting systems
- Aquarium or pond water circulation
Dab 0.3HP Drainage Pump NOVA 200 Benefits
- Durable construction with stainless steel and technopolymer
- Versatile installation options for fixed or portable use
- Efficient operation in a wide temperature range
- High immersion depth suitable for various applications
Dab 0.3HP Drainage Pump NOVA 200 Price List
| No. | Name | Price |
| 1 | Dab 0.3HP Drainage Pump NOVA 200 Price | Contact us |
