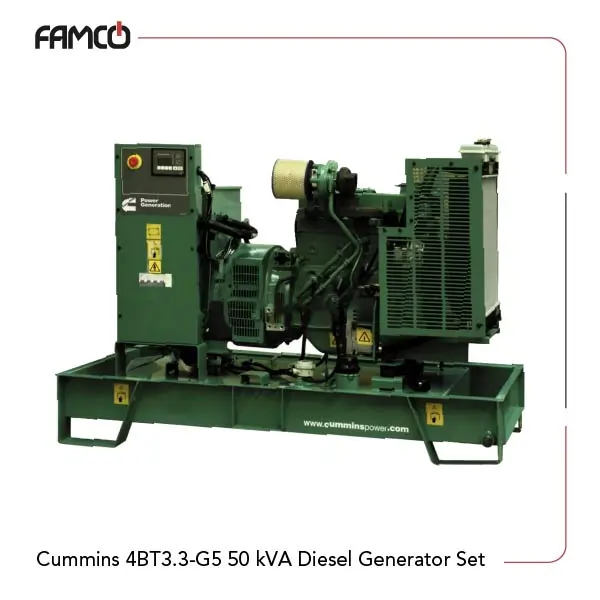

Cummins 4BT3.3-G5 50 kVA Diesel Generator Set

Cummins 4BT3.3-G5 50 kVA Diesel Generator Set Specifications

This generator boasts a standby power of 50 kVA and a prime power of 45 kVA, making it suitable for various applications. It features a four-cylinder in-line configuration with a piston diameter of 128 mm. This Cummins diesel generator set has an oil tank volume of 7.9 liters, while the cooling system can hold 4.6 liters. With a displacement of 3.3 liters and a speed of 1500 rpm, it operates efficiently. The starting voltage is 12V with a negative ground. It supports both 50 Hz and 60 Hz frequencies. Fuel consumption varies based on load: at 100%, it consumes 13 L/h, at 75% it uses 10 L/h, at 50% it requires 7 L/h, and at 25% it only needs 4 L/h. The generator weighs 265 kg and measures 838 mm in length, 611 mm in width, and 902 mm in height without the canopy.

Specification	Value
Standby Power (kVA)	50
Prime Power (kVA)	45
Cylinder Numbers	4, in-line
Piston (mm)	128
Oil Tank Volume (L)	7.9
Cooling System Capacity	4.6
Displacement (L)	3.3
Speed (rpm)	1500
Starting Voltage (V)	12, negative ground
Frequency (Hz)	50, 60
Fuel consumption of 50 Hz (L/h) at 100% bar	13
Fuel consumption (L/h) at 75% bar	10
Fuel consumption (L/h) at 50 bar	7
Fuel consumption (L/h) at 25% bar	4
Dry Weight (kg)	265
Size (mm) without Canopy (kg)	838*611*902

Cummins 4BT3.3-G5 50 kVA Diesel Generator Set Applications

• Residential backup power during outages
• Construction site power supply
• Event and outdoor activities electricity
• Industrial applications requiring reliable energy



Cummins 4BT3.3-G5 50 kVA Diesel Generator Set Benefits

• High power output for various applications
• Efficient fuel consumption reduces operating costs
• Compact design for easy installation
• Durable construction ensures long-lasting performance



Cummins 4BT3.3-G5 50 kVA Diesel Generator Set Price List

No.	Name	Price
1	Cummins 4BT3.3-G5 50 kVA diesel generator set Price	Contact us
