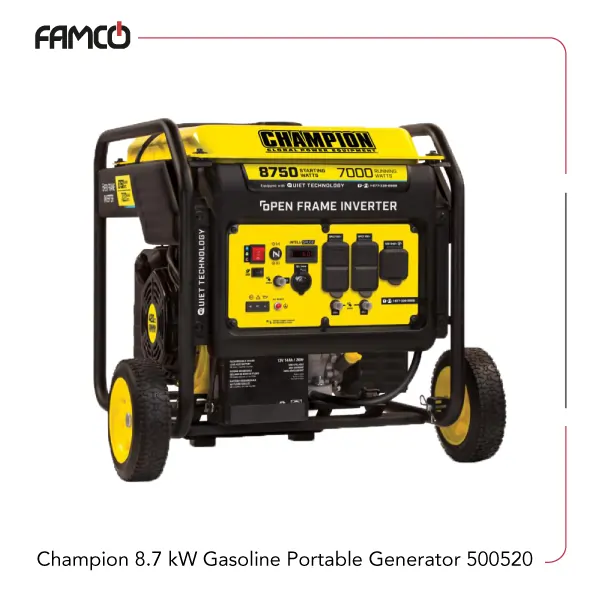

Champion 8.7 kW Gasoline Portable Generator 500520 Specifications
Champion 8.7 kW gasoline portable generator 500520 offers a starting power of 8.75 kW and a running power of 7,000 kW, making it suitable for various power needs. It operates on gasoline and features a 420cc Champion 4-stroke engine with variable speed. The device provides 120/240V output at 60Hz frequency, with a DC operation option. It has a gasoline tank capacity of 4.2 gallons made of steel, ensuring durability. The generator can run up to 10.5 hours at quarter load, with a noise level of 72 dB(A). It includes an electric start, a battery, and an intelligauge voltmeter for monitoring. The engine uses 10W-30 oil, with a capacity of 1.1 liters, and has a low oil shut-off feature for safety. Equipped with solid wheels of 8 inches diameter, it is portable and easy to move. The inverter is open frame, and it does not support parallel operation or automatic voltage regulation. This Champion generator is ideal for backup power, construction sites, and outdoor activities.
| Specification | Value |
| Gasoline Starting Power (kW) | 8.7 |
| Gasoline Running Power (kW) | 7 |
| Gasoline Starting Amps at 120V | 72.9A |
| Gasoline Starting Amps at 240V | 36.5A |
| Gasoline Running Amps at 120V | 58.3A |
| Gasoline Running Amps at 240V | 29.2A |
| Volts | 120/240 |
| Frequency (Hz) | 60 |
| DC Operation | Yes |
| Gasoline Run Time at 1/4 Load | 10.5 h |
| Noise Level | 72 dB(A) |
| Inverter | Open Frame |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Starting Method | Electric |
| Engine Brand | Champion |
| Engine Displacement (cc) | 420 |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | No |
| Fuel Tank Capacity (L) | 15 |
| Fuel Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| (L) Engine Oil Capacity | 1.1 |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in |
Champion 8.7 kW Gasoline Portable Generator 500520 Applications
- Backup power for homes during outages
- Construction sites for powering tools
- Outdoor events and festivals
- Camping and recreational activities
Champion 8.7 kW Gasoline Portable Generator 500520 Benefits
- Reliable power with high starting and running wattage
- Easy to operate with electric start and voltmeter
- Long runtime of over 10 hours at quarter load
- Portable design with durable solid wheels
Champion 8.7 kW Gasoline Portable Generator 500520 Price List
| No. | Name | Price |
| 1 | Champion 8.7 kW Gasoline Portable Generator 500520 Price | Contact us |
