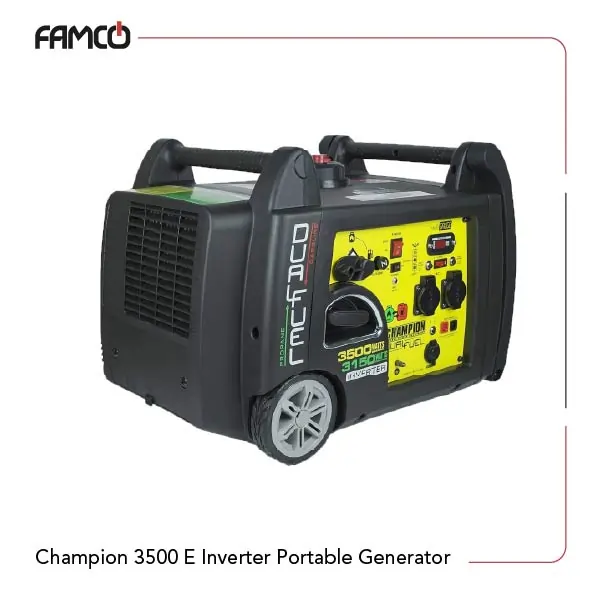

Champion 10 kW Inverter Portable Generator 3500 E Specifications
The E 3500 generator is a powerful dual-fuel unit designed for versatility and efficiency. This Champion generator has a maximum power output of 3.5 kW when using gasoline and 3.1 kW with LPG. A rated current of 14 A and a maximum output current of 15.6 A help it operate at a voltage of 230 V. This generator features two power outlets and can run continuously for up to 10 hours at 50% load. The engine is a 1-cylinder, 4-stroke model with a displacement of 192 cc, utilizing 10W-30 oil. It has an electric start system and operates on a single-phase, air-cooled engine with variable speed. This generator measures 69 × 49 × 51 cm and weighs 50 kg, which makes it portable with included wheels and a handle. Safety features include a low oil sensor and an overload protection system that promise a reliable operation.
| Specification | Value | |
| model | E 3500 | |
| maximum power (kW) | gasoline | 3.5 |
| gas | 3.1 | |
| maximum output current (single-phase) | 15.6 A | |
| rated current | 14 A | |
| voltage | 230 V | |
| output type | AC – DC | |
| number of power outlets | 2 | |
| continuous runtime (50% load) | 10 hours | |
| noise level | 58 dB | |
| cylinders | 1-cylinder, 4-stroke | |
| engine displacement | 192 cc | |
| oil type | 10W-30 | |
| engine speed | Variable | |
| start system | Electric start | |
| phases | Single-phase | |
| cooling system | Air-cooled | |
| frequency | 50 Hz | |
| fuel type | Dual-fuel (Gasoline + LPG) | |
| wheel diameter | 5.5 inches | |
| weight | 50 kg | |
| AVR (Automatic Voltage Regulator) | Not included | |
| dimensions (cm) | 69 × 49 × 51 | |
| country of origin | China (under U.S. license) | |
| accessories | User manual, spark plug wrench, funnel, charging adapter, cable, and adapter | |
| parallel capability | Included | |
| Low oil sensor | ||
| Overload protection sensor and shutdown system | ||
| engine control panel | ||
| wheels and handle | ||
Champion 10 kW Inverter Portable Generator 3500 E Applications
- Powering tools at construction sites
- Providing backup power during outages
- Supporting outdoor events and activities
- Running appliances in remote locations
Champion 10 kW Inverter Portable Generator 3500 E Benefits
- Dual-fuel capability for flexibility
- Long runtime of up to 10 hours
- Quiet operation at 58 dB
- Portable design with wheels and a handle
Champion 10 kW Inverter Portable Generator 3500 E Price List
| No. | Name | Price |
| 1 | Champion 10 kW Inverter Portable Generator 3500 E Price | Contact us |
