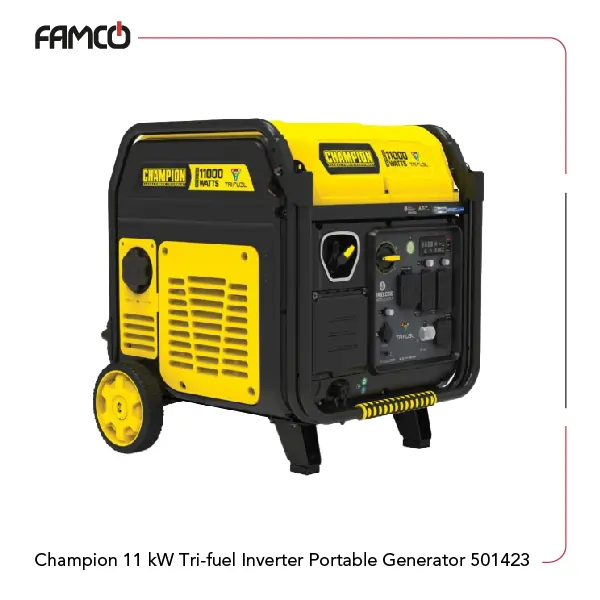

Champion 11 kW Tri-fuel Inverter Portable Generator 501423 Specifications
Champion 11 kW tri-fuel inverter portable generator 501423 offers a starting power of 11 kW across gasoline, propane (LPG), and natural gas fuels, with running powers of 9 kW, 8 kW, and 7.29 kW respectively. It features a 459cc 4-stroke engine with variable speed, equipped with a 6.08-gallon fuel tank for extended operation—up to 15 hours on gasoline and 8 hours on propane at quarter load. The generator supports both recoil and electric start, including wireless remote options for convenience. This Champion generator operates at 120/240V with a frequency of 60Hz, and includes a built-in battery. The noise level is quite low at 64 dB(A), making it suitable for various environments. Safety features include low oil shut-off, and it has an enclosed inverter for stable power output. Designed for durability and efficiency, it does not support parallel connection or automatic voltage regulation, but provides reliable power for multiple applications.
| Specification | Gasoline | Propane | NG |
| Rated Power (kW) | 9 | 8 | 7.290 |
| Starting Power (kW) | 11 | ||
| Gasoline Starting Amps | 91.7A ( at 120V) / 45.8A at 240V | ||
| Gasoline Rated Amps | 75A (at 120V) / 37.5A (at 240V) | ||
| Propane Starting Amps | 91.7A (at 120V) / 45.8A (at 240V) | ||
| Propane Rated Amps | 67.5A (at 120V) / 33.8A (at 240V) | ||
| Natural Gas Starting Amps | 91.7A (at 120V) / 45.8A (at 240V) | ||
| Natural Gas Running Amps | 60.8A ( at 120V) / 30.4A (at 240V) | ||
| Voltage (V) | 120/240 | ||
| Frequency (Hz) | 60 | ||
| DC Operation | Yes | ||
| Gasoline Capacity (gal) | 6.08 | ||
| Engine Oil Type | 10W-30 | ||
| Engine Oil Capacity (qt) | 1.2 | ||
| Low Oil Shut-Off | Yes | ||
| Engine displacement (cc) | 459 | ||
| Engine Type | 4-stroke | ||
| Engine Speed | Variable | ||
| Fuel Type | Gasoline, Propane (LPG), Natural Gas (NG) | ||
| Run Time at 1/4 Load (h) | Gasoline: 15 / Propane: 8 | ||
| Noise Level (dB(A)) | 64 | ||
| Inverter | Enclosed | ||
| Parallel Capability | No | ||
| Automatic Voltage Regulation | No | ||
| Battery | Yes | ||
| Starting method | Recoil, Electric, Wireless Remote | ||
Champion 11 kW Tri-fuel Inverter Portable Generator 501423 Applications
- Backup power for homes during outages
- Construction sites requiring reliable energy
- Outdoor events and festivals
- Camping and recreational activities
Champion 11 kW Tri-fuel Inverter Portable Generator 501423 Benefits
- Flexible fuel options for convenience
- Long run time with large fuel tank
- Quiet operation at 64 dB(A)
- Multiple start methods for ease of use
Champion 11 kW Tri-fuel Inverter Portable Generator 501423 Price List
| No. | Name | Price |
| 1 | Champion 11 kW Tri-fuel Inverter Portable Generator 501423 Price | Contact us |
