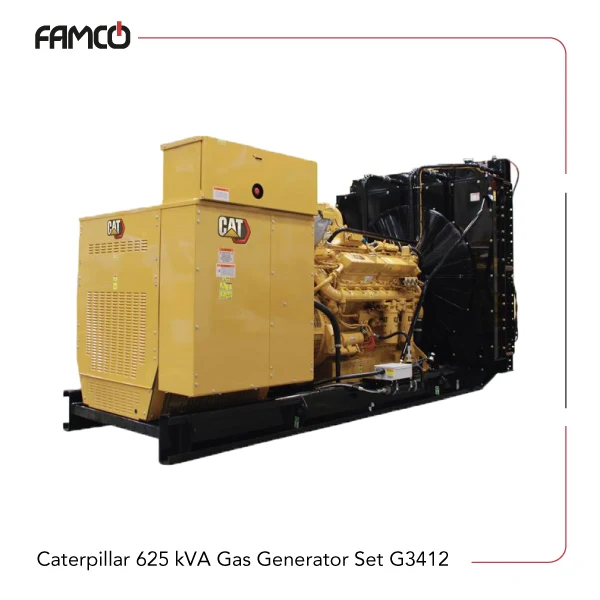

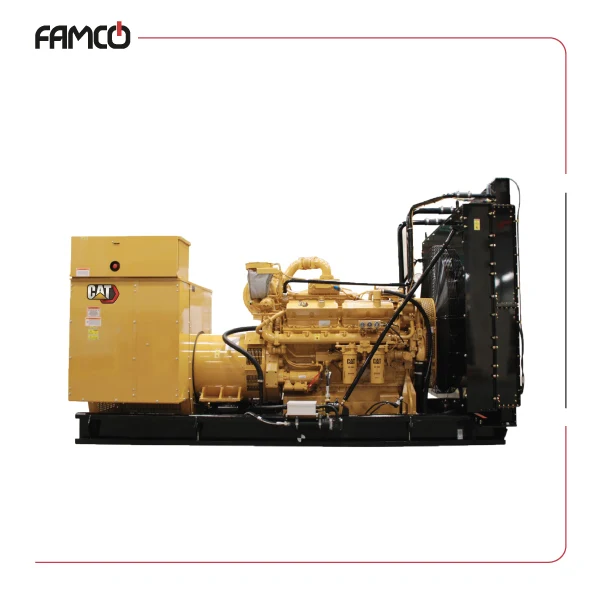

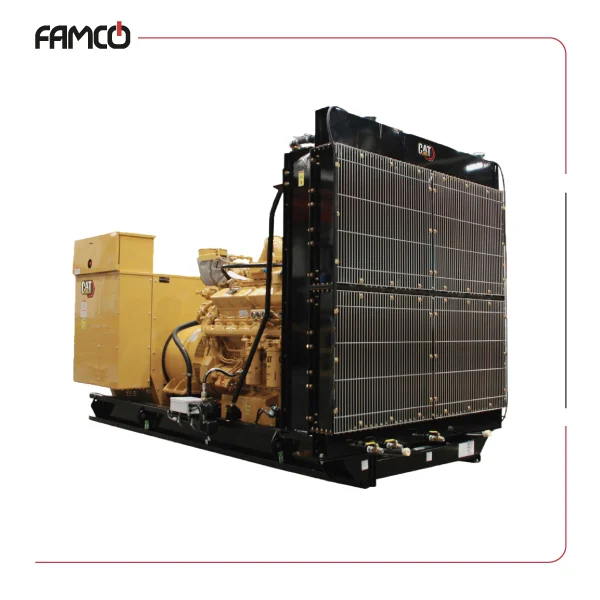

Caterpillar 625 kVA Gas Generator Set G3412 Specifications
Caterpillar 625 kVA gas generator set G3412 features a continuous power output of 423 ekW (529 kVA), making it suitable for demanding industrial applications. This Caterpillar gas generator operates at a frequency of 50 or 60 Hz, with a speed of 1500 or 1800 rpm, providing flexible operation depending on the setup. The engine model G3412 has a displacement of 27 liters, with a bore of 137 mm and a stroke of 152 mm, ensuring robust performance. The generator’s maximum standby power reaches 500 ekW (625 kVA), ideal for emergency power needs. Its dimensions are 4542 mm in length, 2238 mm in width, and 2189 mm in height, with a dry weight of 4384 kg, indicating a heavy-duty, industrial-grade machine. The maximum electrical efficiency is 37.30%, reflecting its ability to convert fuel into electrical power effectively under optimal conditions.
| Specification | Value |
| Continuous Power Rating (ekW) | 423 |
| Continuous Power Rating (kVA) | 529 |
| Maximum Electrical Efficiency | 37.30% |
| Maximum Standby Power Rating (ekW) | 500 |
| Maximum Standby Power Rating (kVA) | 625 |
| Frequency (Hz) | 60 / 50 |
| Speed (rpm) | 1500/1800 |
| Engine Model | G3412 |
| Displacement (L) | 27 |
| Aspiration | NA |
| Bore (mm) | 137 |
| Stroke (mm) | 152 |
| Dimensions mm (L*W*H) | 4542*2238*2189 |
| Dry weight (kg) | 4384 |
Caterpillar 625 kVA Gas Generator Set G3412 Applications
- Industrial manufacturing plants
- Data centers and server farms
- Construction sites with heavy machinery
- Emergency backup power for critical facilities
Caterpillar 625 kVA Gas Generator Set G3412 Benefits
- High power output suitable for large-scale needs
- Reliable performance with robust engine design
- Flexible operation with dual frequency options
- Heavy-duty construction for durability and longevity
Caterpillar 625 kVA Gas Generator Set G3412 Price List
| No. | Name | Price |
| 1 | Caterpillar 625 kVA Gas Generator Set G3412 Price | Contact us |
