Caterpillar 3500 kVA Diesel Generator Set 3516E Specifications
This generator offers a standby power of 3500 kVA and a prime power of 3175 kVA. It operates at a frequency of 50 Hz and has a displacement of 78.1 liters. This Caterpillar diesel generator’s fuel consumption varies depending on load: 650.9 liters per hour at full load, 523.2 liters at 75% load, and 384.8 liters at 50% load, which helps in planning fuel efficiency. The coolant capacity is 381 liters. It features low NOx emissions at 2239.9 mg/Nm3, making it environmentally friendlier. The dimensions are quite large, measuring 8088 mm in length, 2640 mm in width, and 3342 mm in height. The dry weight of this generator is 20,707 kg, indicating a heavy-duty build suitable for industrial applications. Overall, this generator combines high power output with eco-friendly features for critical power backup and continuous operation.
| Specification | Value | |
| Standby power (kVA) | 3500 | |
| Prime power (kVA) | 3175 | |
| Frequency (Hz) | 50 | |
| Displacement (l) | 78.1 | |
| Fuel consumption with fan (L/h) | at full load | 650.9 |
| at 75% load | 523.2 | |
| at 50% load | 384.8 | |
| Coolant capacity (l) | 381 | |
| NOx emissions at full load (mg/Nm3) | 2239.9 | |

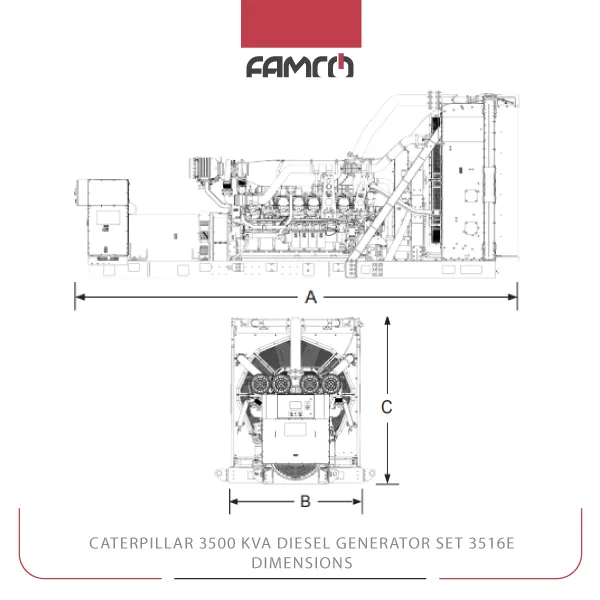

Caterpillar 3500 kVA Diesel Generator Set 3516E Dimensions and Weight
| Dimensions | A (mm) | 8088 |
| B (mm) | 2640 | |
| C (mm) | 3342 | |
| Dry weight (kg) | 20707 | |
Caterpillar 3500 kVA Diesel Generator Set 3516E Applications
- Industrial power backup
- Construction sites
- Large manufacturing plants
- Data centers and critical infrastructure
Caterpillar 3500 kVA Diesel Generator Set 3516E Benefits
- High power output for demanding applications
- Eco-friendly with low NOx emissions
- Fuel efficiency at various loads reduces costs
- Robust and durable for heavy-duty use
Caterpillar 3500 kVA Diesel Generator Set 3516E Price List
| No. | Name | Price |
| 1 | Caterpillar 3500 kVA Diesel Generator Set 3516E Price | Contact us |
