Caterpillar 2688 kVA Diesel Generator Set 3606 Specifications
This generator set offers a powerful performance with a standby power of 2688 kVA and a prime power of 1775 kVA. It operates at a frequency of 50 Hz and features a 4-stroke, water-cooled engine. The 3606 Caterpillar diesel generator‘s engine displacement totals to 111 liters, which contributes to its high power output. Designed for continuous duty cycle, this CAT dg set maintains high performance over long periods. The generator runs at speeds of 750 and 1000 rpm, making a versatile genset out of it for various applications. It is equipped with a Class F insulation system, suitable for demanding environments. The set is a three-phase generator, ideal for large-scale industrial or infrastructure projects. Its dimensions comply with its power with a maximum length of 10261.7 mm, a width of 2530.3 mm, and a height of 3977.7 mm. The dry weight of the entire genset reaches up to 34070 kg, which indicates a heavy-duty build for demanding tasks.
| Specification | Value |
| Standby Power (kVA) | 2688 |
| Prime Power (kVA) | 1775 |
| Frequency (Hz) | 50 |
| Displacement per Cylinder (L) | 18.5 |
| Displacement (L) | 111 |
| Engine | 4-stroke, water-cooled |
| Total Displacement (L) | 111 |
| Fuel consumption (g/bkW-hr) | 200 |
| Duty Cycle | Continuous |
| Speed | 750 rpm, 1000 rpm |
| Insulation Class | F |
| Number of Phases | 3 |

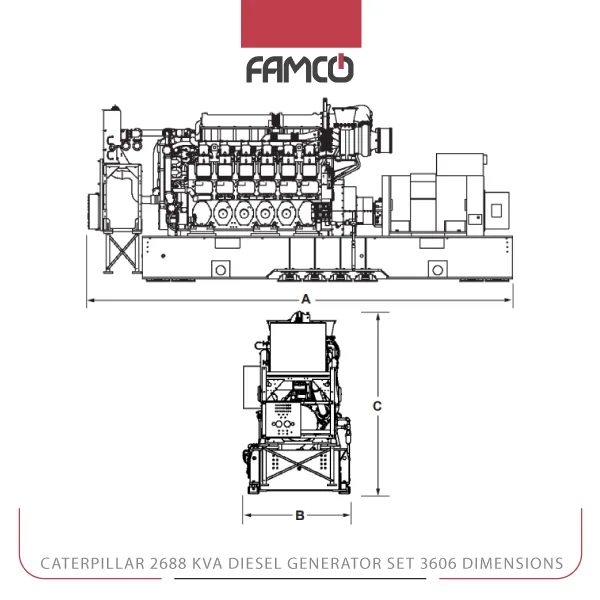

Caterpillar 2688 kVA Diesel Generator Set 3606 Dimensions and Weight
| Generator Set Dimensions (mm) | Length, A | 10261.7 |
| Width, B | 2530.3 | |
| Height, C | 3977.7 | |
| Dry Genset Weight (kg) | 34070 | |
Caterpillar 2688 kVA Diesel Generator Set 3606 Applications
- Industrial power supply for factories
- Large infrastructure projects
- Emergency backup for critical facilities
- Construction site power source
Caterpillar 2688 kVA Diesel Generator Set 3606 Benefits
- High power output for demanding applications
- Efficient fuel consumption reduces costs
- Durable design for long-term use
- Flexible operation speeds for various needs
Caterpillar 2688 kVA Diesel Generator Set 3606 Price List
| No. | Name | Price |
| 1 | Caterpillar 2688 kVA Diesel Generator Set 3606 Price | Contact us |
