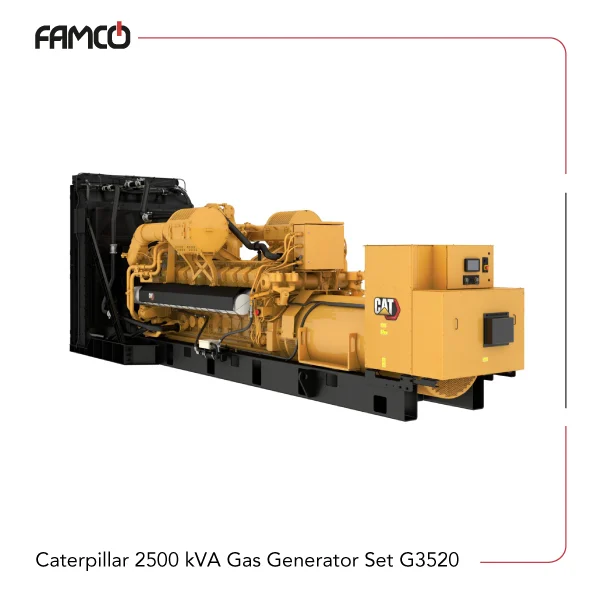

Caterpillar 2500 kVA Gas Generator Set G3520 Specifications
Caterpillar 2500 kVA gas generator set G3520 offers a continuous power output of 2000 ekW or 2500 kVA, making it suitable for large-scale power needs. It operates at a frequency of 60 Hz with a speed of 1800 rpm. The engine used is the G3520 model, featuring a displacement of 97.6 liters and a compression ratio of 11.5. It has a turbocharged aspiration system, providing efficient performance. The bore measures 170 mm, and the stroke is 215 mm. The generator’s dimensions are 8534 mm in length, 2386 mm in width, and 3230 mm in height. This Caterpillar gas generator weighs approximately 22,000 kg, indicating a heavy-duty industrial design. The maximum electrical efficiency reaches 45.30%, and it can run on natural gas or a hydrogen blend with up to 5% hydrogen content, supporting cleaner energy sources.
| Specification | Value |
| Continuous Power Rating (ekW) | 2000 |
| Continuous Power Rating (kVA) | 2500 |
| Maximum Electrical Efficiency | 45.30% |
| Fuel Type | NG, Hydrogen Blend (up to 5%) |
| Frequency (Hz) | 60 |
| Speed (rpm) | 1800 |
| Engine Model | G3520 |
| Displacement (L) | 97.6 |
| Compression ratio | 11.5 |
| Aspiration | TA |
| Bore (mm) | 170 |
| Stroke (mm) | 215 |
| Dimensions mm (L*W*H) | 8534*2386*3230 |
| Dry weight (kg) | 22000 |
Caterpillar 2500 kVA Gas Generator Set G3520 Applications
- Large industrial facilities
- Data centers and server farms
- Emergency backup power systems
- Power plants and energy production
Caterpillar 2500 kVA Gas Generator Set G3520 Benefits
- High power output suitable for demanding applications
- Supports cleaner energy with hydrogen blend capability
- Reliable and durable for continuous operation
- Efficient performance with 45.30% maximum electrical efficiency
Caterpillar 2500 kVA Gas Generator Set G3520 Price List
| No. | Name | Price |
| 1 | Caterpillar 2500 kVA Gas Generator Set G3520 Price | Contact us |
