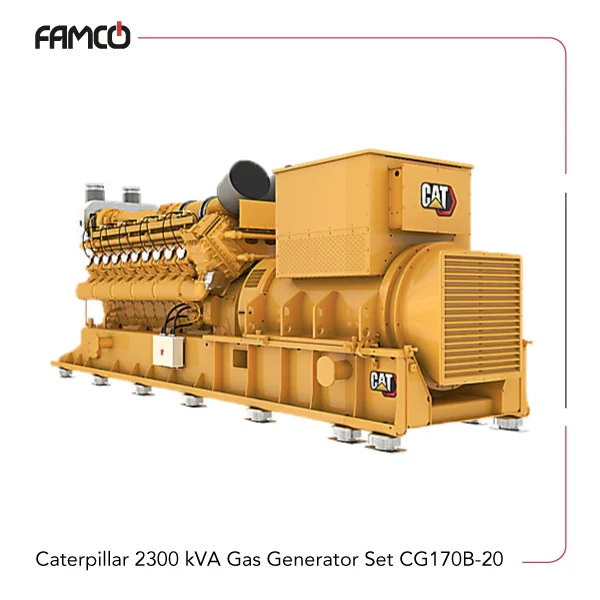

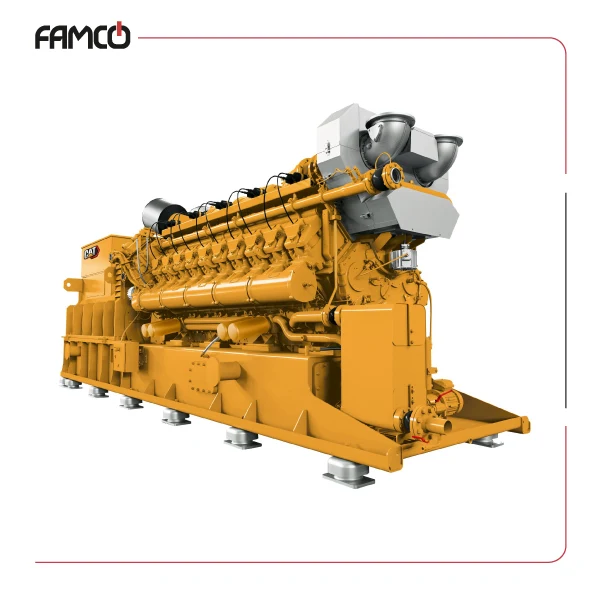

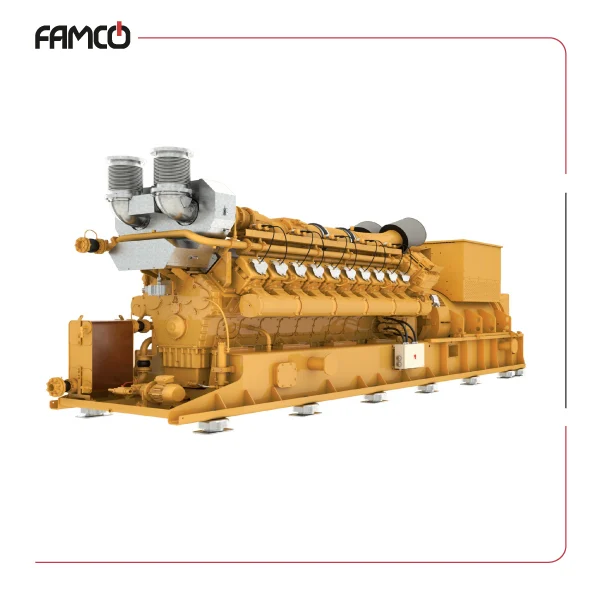

Caterpillar 2300 kVA Gas Generator Set CG170B-20 Specifications
Caterpillar 2300 kVA gas generator set CG170B-20 offers a continuous power output of 2300 ekW and 2300 kVA, making it suitable for large-scale power needs. It can also handle standby power up to the same level, ensuring reliable backup during outages. This Caterpillar gas generator operates at a frequency of 50 or 60 Hz, with a speed of 1500 rpm, providing stable and efficient performance. Powered by the CG170B-20 engine, it features a displacement of 97.6 liters and an 11.5 compression ratio, optimized for fuel efficiency and durability. The engine’s aspiration is turbocharged (TA), enhancing power output and efficiency. Bore measures 170 mm, and the stroke is 195 mm, contributing to the engine’s high performance. The overall dimensions are 6556 mm in length, 1706 mm in width, and 2263 mm in height, with a dry weight of 21,490 kg, indicating a robust and heavy-duty construction suitable for industrial applications.
| Specification | Value |
| Continuous Power Rating (ekW) | 2300 |
| Continuous Power Rating (kVA) | 2300 |
| Maximum standby power rating (ekW) | 2300 |
| Maximum standby power rating (kVA) | 2300 |
| Maximum Electrical Efficiency | 45.00% |
| Fuel Type | NG, Biogas, Coal gas, Hydrogen Blend (up to 25%) |
| Frequency (Hz) | 60/50 |
| Speed (rpm) | 1500 |
| Engine Model | CG170B-20 |
| Displacement (L) | 97.6 |
| Compression ratio | 11.5 |
| Aspiration | TA |
| Bore (mm) | 170 |
| Stroke (mm) | 195 |
| Dimensions mm (L*W*H) | 6556*1706*2263 |
| Dry weight (kg) | 21490 |
Caterpillar 2300 kVA Gas Generator Set CG170B-20 Applications
- Industrial power plants
- Backup power for large facilities
- Renewable energy projects
- Heavy-duty manufacturing operations
Caterpillar 2300 kVA Gas Generator Set CG170B-20 Benefits
- High power output suitable for large-scale needs
- Flexible fuel options including renewable sources
- Reliable and efficient performance
- Durable construction for long-term use
Caterpillar 2300 kVA Gas Generator Set CG170B-20 Price List
| No. | Name | Price |
| 1 | Caterpillar 2300 kVA Gas Generator Set CG170B-20 Price | Contact us |
