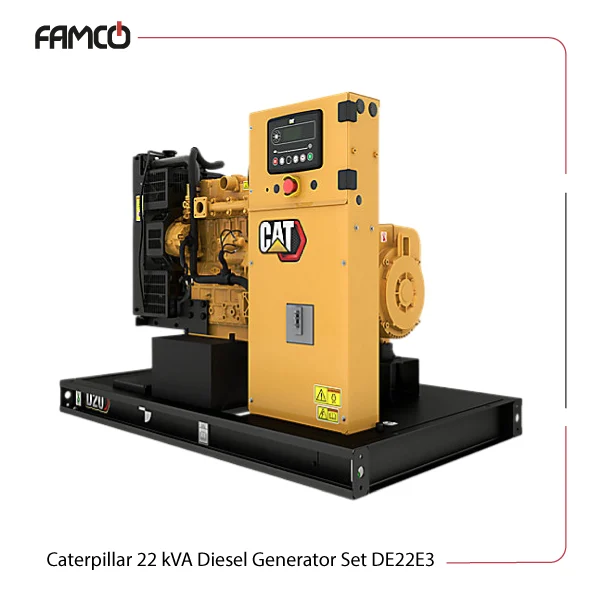

Caterpillar 22 kVA Diesel Generator Set DE22E3 Specifications
This generator presents users with a standby power of 22 kVA and a prime power of 20 kVA. It operates within a voltage range of 200 to 400 volts and runs at a frequency of 50 Hz. The generator supports both standby and prime duty cycles, to make it more user-friendly. The coolant capacity of this Caterpillar diesel generator is 6.5 liters, which helps maintain optimal operating temperatures. Its dimensions are 1500 mm in length, 620 mm in width, and 1115 mm in height, with a dry weight of 447 kg, which points to a sturdy and portable design for industrial or commercial applications.
The fuel consumption of this varies depending on load and as follows: at full capacity (100%), it consumes 5.3 liters per hour; at 75%, 3.9 liters; and at 50%, only 2.9 liters per hour for prolonged use.
| Specification | Value | |
| Standby Power (kVA) | 22 | |
| Prime Power (kVA) | 20 | |
| Voltage (V) | 200-400 | |
| Frequency (Hz) | 50 | |
| Duty Cycle | standby, prime | |
| Prime Fuel Consumption (L/h) | at 100% | 5.3 |
| at 75% | 3.9 | |
| at 50% | 2.9 | |
| Total Coolant Capacity (L) | 6.5 | |

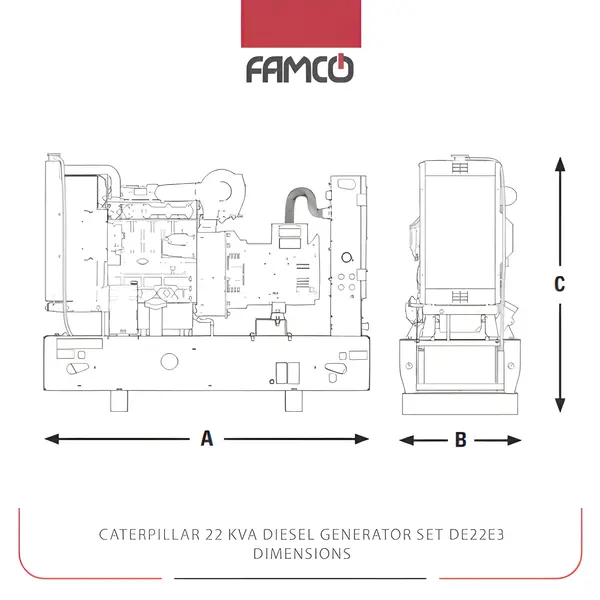

Caterpillar 22 kVA Diesel Generator Set DE22E3 Dimensions and Weight
| Dimensions (mm) | A | 1500 |
| B | 620 | |
| C | 1115 | |
| Dry Weight (kg) | 447 | |
Caterpillar 22 kVA Diesel Generator Set DE22E3 Applications
- Backup power for industrial facilities
- Construction site power supply
- Commercial building emergency power
- Remote location power generation
Caterpillar 22 kVA Diesel Generator Set DE22E3 Benefits
- High power output suitable for various needs
- Efficient fuel consumption reduces costs
- Compact size for easy transportation
- Reliable performance with durable build
Caterpillar 22 kVA Diesel Generator Set DE22E3 Price List
| No. | Name | Price |
| 1 | Caterpillar 22 kVA Diesel Generator Set DE22E3 Price | Contact us |
