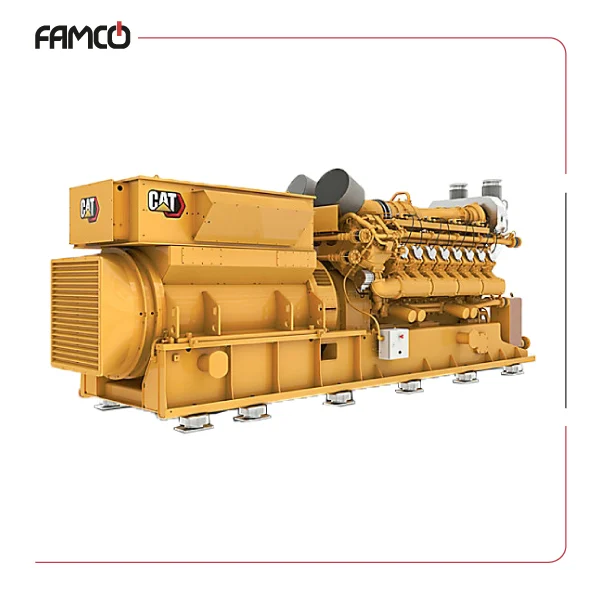

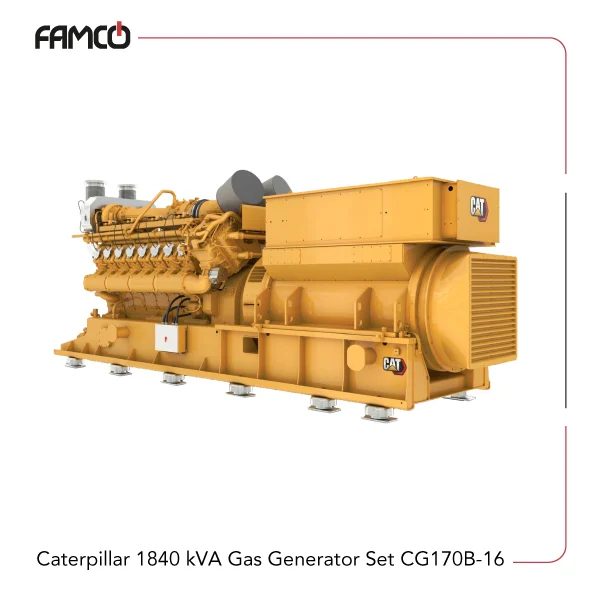

Caterpillar 1840 kVA Gas Generator Set CG170B-16 Specifications
Caterpillar 1840 kVA gas generator set CG170B-16 offers a continuous power output of 1840 ekW and 1840 kVA, making it suitable for large-scale power needs. It can also handle standby power up to the same level, ensuring reliable backup during outages. The engine, model CG170B-16, features a turbocharged aspiration system, with a bore of 170 mm and a stroke of 195 mm, optimized for efficiency and durability. It operates at a frequency of 50 Hz and a speed of 1500 rpm, providing stable and consistent energy. This Caterpillar gas generator supports various fuel types, including natural gas, biogas, coal gas, and hydrogen blends up to 25%, offering flexibility for different energy sources. Its dimensions are 6100 mm in length, 1710 mm in width, and 2190 mm in height, with a dry weight of 17,400 kg, indicating a robust and heavy-duty construction suitable for industrial applications. The maximum electrical efficiency reaches 44.70%, ensuring energy is converted effectively with minimal waste, which is crucial for cost savings and environmental considerations. Overall, this generator is designed for high-capacity power generation, combining advanced engine technology with versatile fuel options to meet demanding industrial and commercial needs.
| Specification | Value |
| Continuous Power Rating (ekW) | 1840 |
| Continuous Power Rating (kVA) | 1840 |
| Maximum standby power rating (ekW) | 1840 |
| Maximum standby power rating (kVA) | 1840 |
| Maximum Electrical Efficiency | 44.70% |
| Fuel Type | NG, Biogas, Coal gas, Hydrogen Blend (up to 25%) |
| Frequency (Hz) | 50 |
| Speed (rpm) | 1500 |
| Engine Model | CG170B-16 |
| Aspiration | TA |
| Bore (mm) | 170 |
| Stroke (mm) | 195 |
| Dimensions mm (L*W*H) | 6100*1710*2190 |
| Dry weight (kg) | 17400 |
Caterpillar 1840 kVA Gas Generator Set CG170B-16 Applications
- Power plants and large industrial facilities
- Emergency backup for critical infrastructure
- Renewable energy projects using biogas or hydrogen
- Heavy-duty commercial and manufacturing operations
Caterpillar 1840 kVA Gas Generator Set CG170B-16 Benefits
- High power output suitable for large-scale needs
- Flexible fuel options for energy source diversity
- Reliable and stable performance at 50 Hz
- Efficient energy conversion reduces operational costs
Caterpillar 1840 kVA Gas Generator Set CG170B-16 Price List
| No. | Name | Price |
| 1 | Caterpillar 1840 kVA Gas Generator Set CG170B-16 Price | Contact us |
