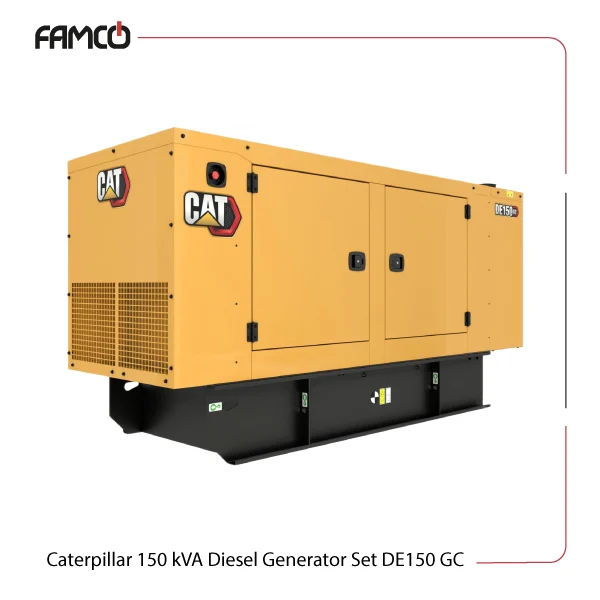

Caterpillar 150 kVA Diesel Generator Set DE150 GC Specifications
This generator offers a standby power of 150 kVA and a prime power of 135 kVA, making it suitable for various backup and continuous power needs. It operates at a voltage range of 380 to 415 volts with a frequency of 50 Hz and runs at 1500 rpm. The engine has a displacement of 7 liters, ensuring reliable performance. The fuel tank of this Caterpillar diesel generator can hold up to 325 liters, which enables extended operation. Fuel consumption varies with load: 29.9 liters per hour at full load, 22.3 liters at 75%, and 15.6 liters at 50%. The coolant capacity is 21.05 liters, which helps maintain optimal engine temperature. Its dimensions are 3325 mm in length, 1134 mm in width, and 1666 mm in height. The generator weighs 1834 kg, making it a robust and durable power solution.
| Specification | Value | |
| Standby power (kVA) | 150 | |
| Prime power (kVA) | 135 | |
| Voltage (V) | 380-400-415 | |
| Frequency (Hz) | 50 | |
| Speed (rpm) | 1500 | |
| Duty cycle | standby | |
| Displacement (L) | 7 | |
| Fuel tank capacity (L) | 325 | |
| Fuel consumption with fan (L/h) | at 100% load | 29.9 |
| at 75% load | 22.3 | |
| at 50% load | 15.6 | |
| Total coolant capacity (L) | 21.05 | |

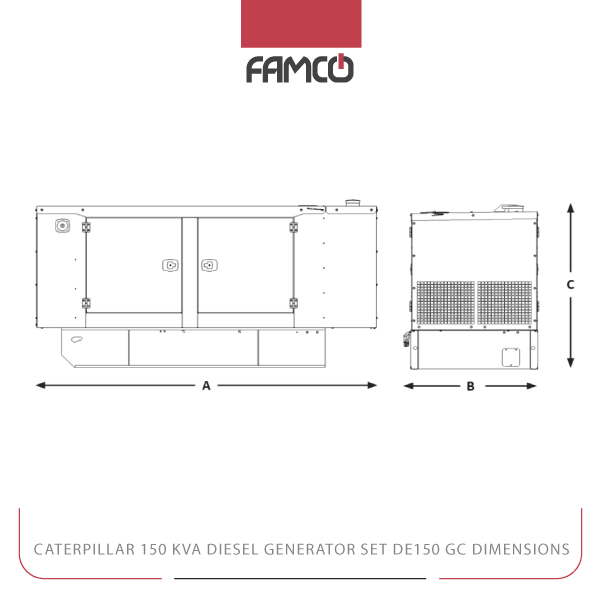

Caterpillar 150 kVA Diesel Generator Set DE150 GC Dimensions and Weight
| Dimensions | Length (mm) | 3325 |
| Width (mm) | 1134 | |
| Height (mm) | 1666 | |
| Dry weight (kg) | 1834 | |
Caterpillar 150 kVA Diesel Generator Set DE150 GC Applications
- Industrial power backup
- Construction sites
- Large commercial buildings
- Remote area power supply
Caterpillar 150 kVA Diesel Generator Set DE150 GC Benefits
- High power output for demanding applications
- Long operational hours with large fuel tank
- Durable and robust construction
- Reliable performance with efficient fuel use
Caterpillar 150 kVA Diesel Generator Set DE150 GC Price List
| No. | Name | Price |
| 1 | Caterpillar 150 kVA Diesel Generator Set DE150 GC Price | Contact us |
