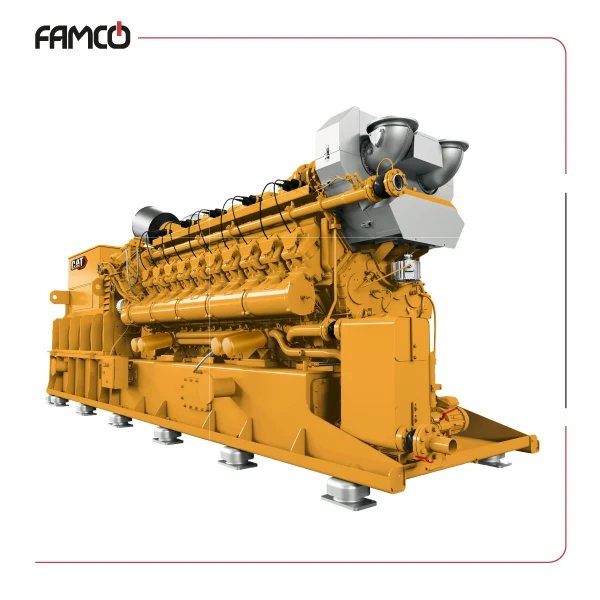

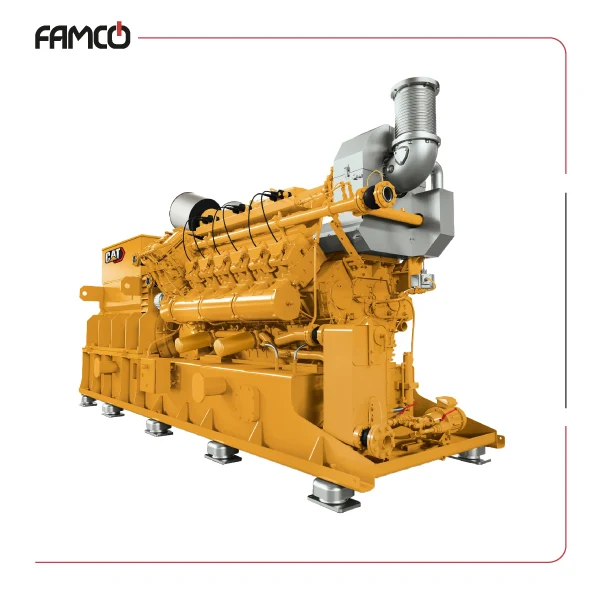

Caterpillar 1380 kVA Gas Generator Set CG170B-12 Specifications
Caterpillar 1380 kVA gas generator set CG170B-12 offers a continuous power output of 1380 ekW and 1380 kVA, making it suitable for large-scale power needs. It can also handle maximum standby power ratings of the same value, ensuring reliable backup during outages. The generator operates at a frequency of 50 Hz with a speed of 1500 rpm, driven by the robust CG170B-12 engine. The engine features a displacement of 97.6 liters, with a bore of 170 mm and a stroke of 195 mm, and it uses a turbocharged aspiration system for enhanced performance. Caterpillar gas generator supports multiple fuel types including natural gas, biogas, coal gas, and hydrogen blends up to 25%, providing flexibility for various energy sources. The dimensions of the unit are 5080 mm in length, 1710 mm in width, and 2190 mm in height, with a dry weight of 12,900 kg, indicating a heavy-duty industrial design built for durability and long-term operation.
| Specification | Value |
| Continuous Power Rating (ekW) | 1380 |
| Continuous Power Rating (kVA) | 1380 |
| Maximum standby power rating (ekW) | 1380 |
| Maximum standby power rating (kVA) | 1380 |
| Maximum Electrical Efficiency | 45.00% |
| Fuel Type | NG, Biogas, Coal gas, Hydrogen Blend (up to 25%) |
| Frequency (Hz) | 50 |
| Speed (rpm) | 1500 |
| Engine Model | CG170B-12 |
| Displacement (L) | 97.6 |
| Aspiration | TA |
| Bore (mm) | 170 |
| Stroke (mm) | 195 |
| Dimensions mm (L*W*H) | 5080*1710*2190 |
| Dry weight (kg) | 12900 |
Caterpillar 1380 kVA Gas Generator Set CG170B-12 Applications
- Power plants and energy production facilities
- Large industrial complexes
- Critical infrastructure backup systems
- Remote or off-grid power supply
Caterpillar 1380 kVA Gas Generator Set CG170B-12 Benefits
- High power output suitable for large-scale needs
- Flexible fuel options for diverse energy sources
- Reliable performance with standby capabilities
- Durable construction for long-term industrial use
Caterpillar 1380 kVA Gas Generator Set CG170B-12 Price List
| No. | Name | Price |
| 1 | Caterpillar 1380 kVA Gas Generator Set CG170B-12 Price | Contact us |
