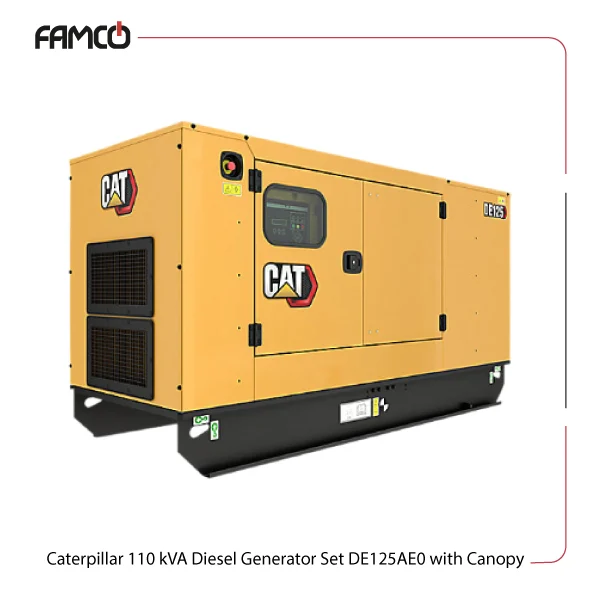

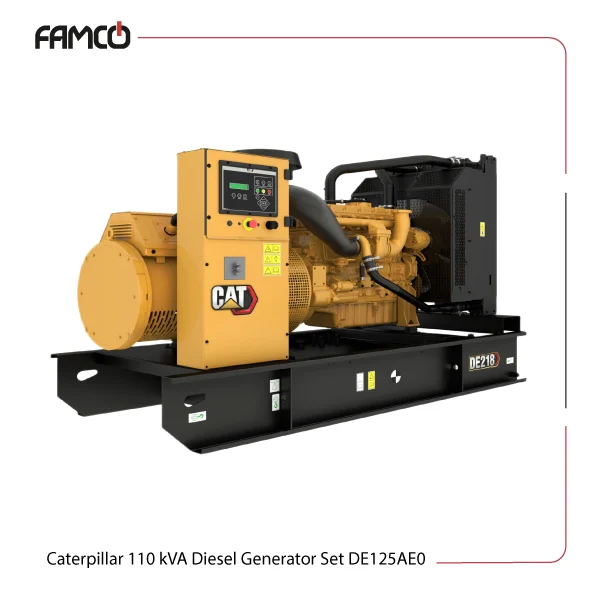

Caterpillar 110 kVA Diesel Generator Set DE125AE0 Specifications
This generator offers a standby power of 110 kVA and a prime power of 100 kVA. It operates at a voltage range of 220-380V and a frequency of 50Hz, with a speed of 1500 rpm. The engine displacement is 4.4 liters, which provides reliable power output. It supports both standby and prime duty cycles, ideal for emergency and ongoing operations.
The maximum dimensions of this Caterpillar diesel generator set are 1980 mm in length, 890 mm in width, and 1376 mm in height, with a dry weight of 1065 kg, ensuring durability and stability. The cooling system capacity is 17.5 liters, helping maintain optimal engine temperature during prolonged use.
| Specification | Value |
| Standby Power (kVA) | 110 |
| Prime Power (kVA) | 100 |
| Voltage (V) | 220-380 |
| Frequency (Hz) | 50 |
| Speed | 1500 rpm |
| Displacement (L) | 4.4 |
| Duty Cycle | Standby, prime |
| Cooling System Capacity (L) | 17.5 |

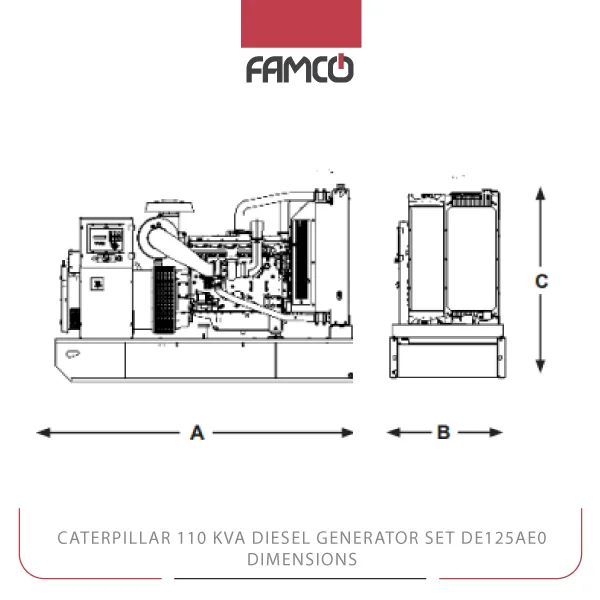

Caterpillar 110 kVA Diesel Generator Set DE125AE0 Dimensions and Weight
| length – Maximum | 1980 mm |
| Width – Maximum | 890 mm |
| Height – Maximum | 1376 mm |
| Dry Weight – Genset (maximum) | 1065 kg |
Caterpillar 110 kVA Diesel Generator Set DE125AE0 Applications
- Emergency backup power for homes and businesses
- Construction sites requiring reliable power supply
- Industrial facilities with continuous power needs
- Large-scale events or outdoor activities
Caterpillar 110 kVA Diesel Generator Set DE125AE0 Benefits
- High power output suitable for various needs
- Reliable performance with durable build quality
- Versatile voltage and duty cycle options
- Efficient cooling system for extended use
Caterpillar 110 kVA Diesel Generator Set DE125AE0 Price List
| No. | Name | Price |
| 1 | Caterpillar 110 kVA Diesel Generator Set DE125AE0 Price | Contact us |
