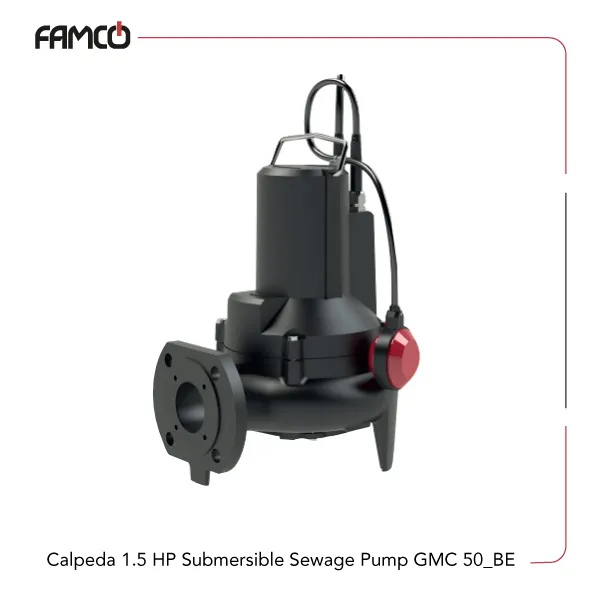

Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficiency. With this Calpeda pump, you can rest assured it operates with different voltage levels at approximately 2900 rpm and supports both single-phase and three-phase power supplies, with voltages of 230V and 400V. The Calpeda submersible pump has an insulation class F, ensuring safety and performance under various conditions. Its protection rating is IP X8, making this Calpeda sewage pump suitable for submersion up to 10 meters deep. The pump is capable of handling liquids with a pH range of 6 to 11 and a maximum temperature of 35°C. Mechanical seals are made from ceramic, carbon, and NBR on the upper side, while silicon carbide and NBR seals are used on the lower side, providing reliable sealing and longevity. The Calpeda submersible pump GMC series 50/BE delivers a maximum head of 15.5 meters and a flow rate of 800 liters per minute, powered by a 1.1 kW (1.5 HP) motor. You could incorporate this pumping solution best in applications requiring efficient water transfer, drainage, or circulation in various industrial and domestic settings.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 15.5 |
| Flow rate (l/min) | 800 |

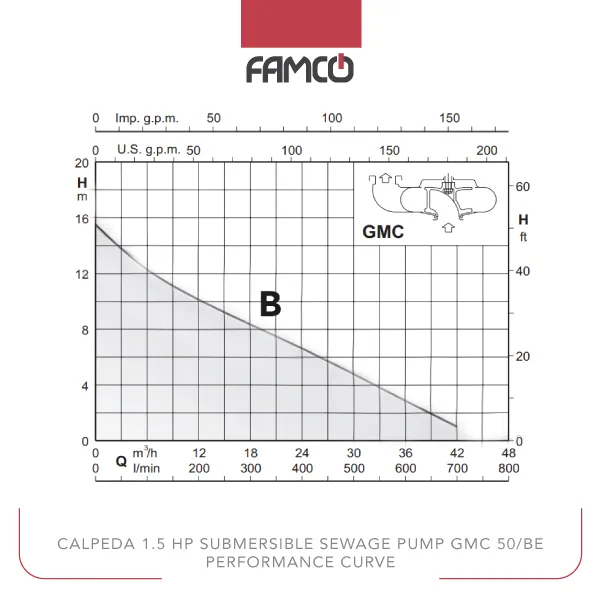

Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| Head (m) | 15.5 | 12.5 | 10 | 8.5 | 6.5 | 5 | 3 | 1 |
Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Applications
- Water transfer in residential and commercial buildings
- Drainage and sewage systems
- Irrigation in agricultural fields
- Industrial fluid circulation and transfer
Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with a 1.1 kW motor
- Suitable for submersion up to 10 meters deep
- Supports a wide pH range and temperature for versatile applications
Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Sewage Pump GMC 50/BE Price | Contact us |
