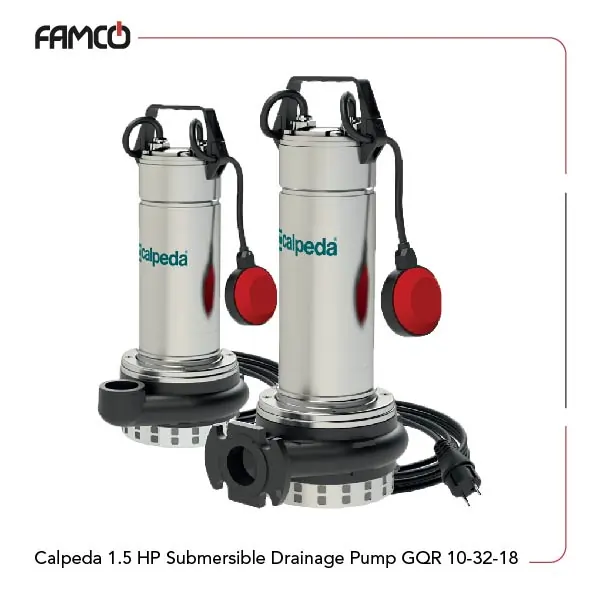

Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Specifications
This pump is designed for efficient operation in various applications. It can handle liquid temperatures up to 35° C and has a maximum immersion depth of 5 meters, suitable for deeper installations. This pump operates at a rotation speed of 2900 rpm and is available in both three-phase (230-400V) and single-phase (230V) configurations. This Calpeda drainage pump has insulation class of F and an IP X8 protection rating and are built for continuous immersion in water. This pump features a single-impeller design, contributing to its effective fluid movement. Its casing and impeller are made from durable cast iron, while the shaft is crafted from chrome-nickel steel for added strength. The mechanical seals are made from high-quality materials to enhance the pump’s longevity and reliability. This pump is rated at 1.1 kW (1.5 HP) and can achieve a head of 4.3 to 18 meters, making it versatile for various pumping needs.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| No. of poles | 2 | |
| Rotation speed (rpm) | 2900 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 4.3-18 | |

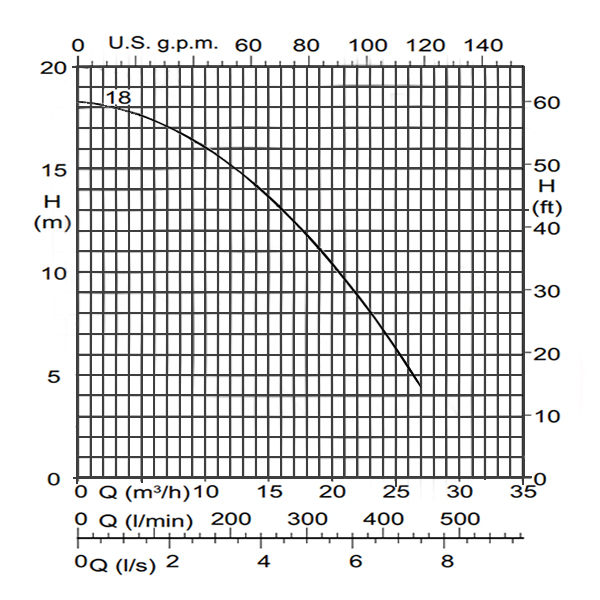

Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Performance Curve
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Materials
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 18 | 17.5 | 17 | 16.2 | 15 | 13.7 | 11.8 | 9 | 7 | 4.3 |
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Applications
- Agricultural irrigation systems
- Industrial water transfer
- Construction site dewatering
- Aquaculture and fish farming
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Benefits
- Durable construction for long-lasting use
- High efficiency with low energy consumption
- Versatile for various applications
- Easy installation and maintenance
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Drainage Pump GQR 10-32-18 Price | Contact us |
